Place of Origin:
China
Brand Name:
Lijiang glass
Certification:
CE
Model Number:
LJTB01
Application

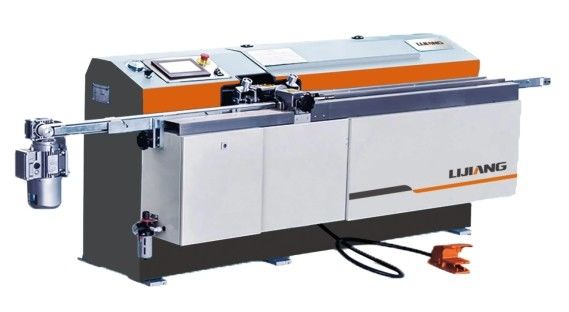

LJTB 01 Automatic butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The butyl extruder uses large electrical control panel which makes the operation easier than before. The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now. The butyl extruder is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder adopts vertical rotary support system, making the refill of butyl easier. The height of squeezing head can be adjusted automatically according to different kinds of aluminum spacers. Finally, the butyl extruder has reached the worldwide technology with the characteristic of complete functions and stable working mode.
Equipment details
KUNLUN TONGTAI Touch Screen
Alarm system Reminding Adding Butyl
Glue cylinder
Adopt the upright structure, easy to change butyl.
Germany Siemens parts
Guiding Wheel
Sensor
Automatically measure the width of frame, the distance of nozzle can be adjustable.
TEFLON glue nozzles
Using non-adhesive belt, keep clean.
Crossbeam adjustable structure
Automatic filter function
Other Features:
Technical Data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 5.5-27mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 415V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
Electrical parameters
| Name | Brand |
| Low voltage electrical apparatus | German SIEMENS |
| Hydraulic and pneumatic supercharging system | German MAXIMATOR |
| Quick exhaust valve/Vacuum generator | Japan SMC |
| Pneumatic components(cylinder/valve) | Taiwan ARTAC |
| Travel light | Japan OMRON |
| Relay | Japan OMRON |
| Optical fiber | Japan OMRON |
| PLC | SIEMENS |
| Frequency converter |
SIEMENS |
| Display screen PLC | KUNLUNTONGTAI |
| frequency transformer | SIEMENS |
| Electromagnetic valve | AirTAC |
| Supply electric relay circuit | OMRON |
| Breaker proximity switch | OMRON |
| Overtravel-limit switch | Schneider |
| Proximity switch | OMRON |
| Overtravel-limit switch | OMRON |
| Temperature-controlled | OMRON |
| Knob | Schneider |
