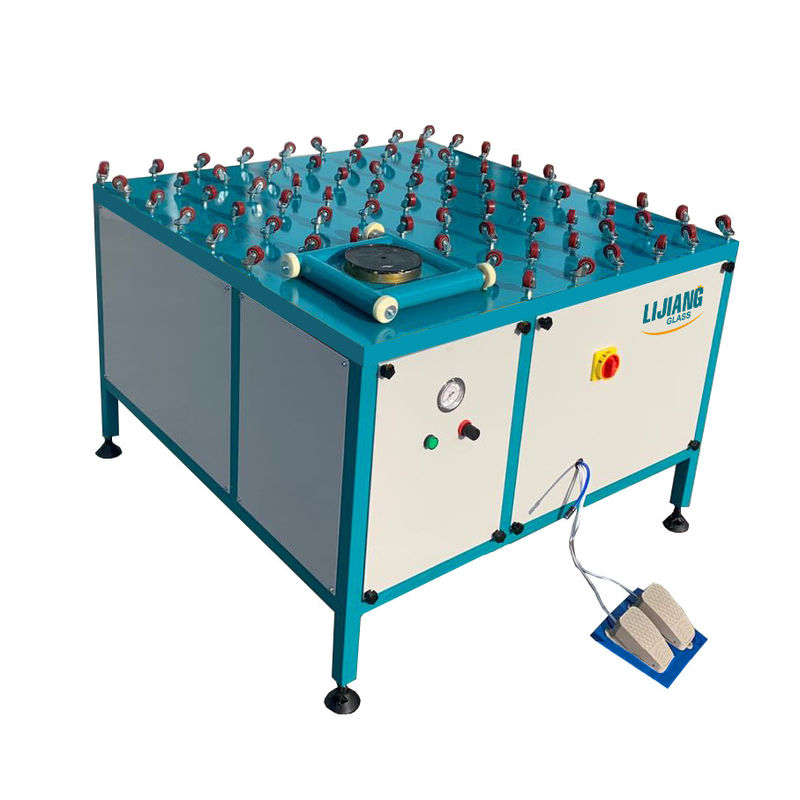

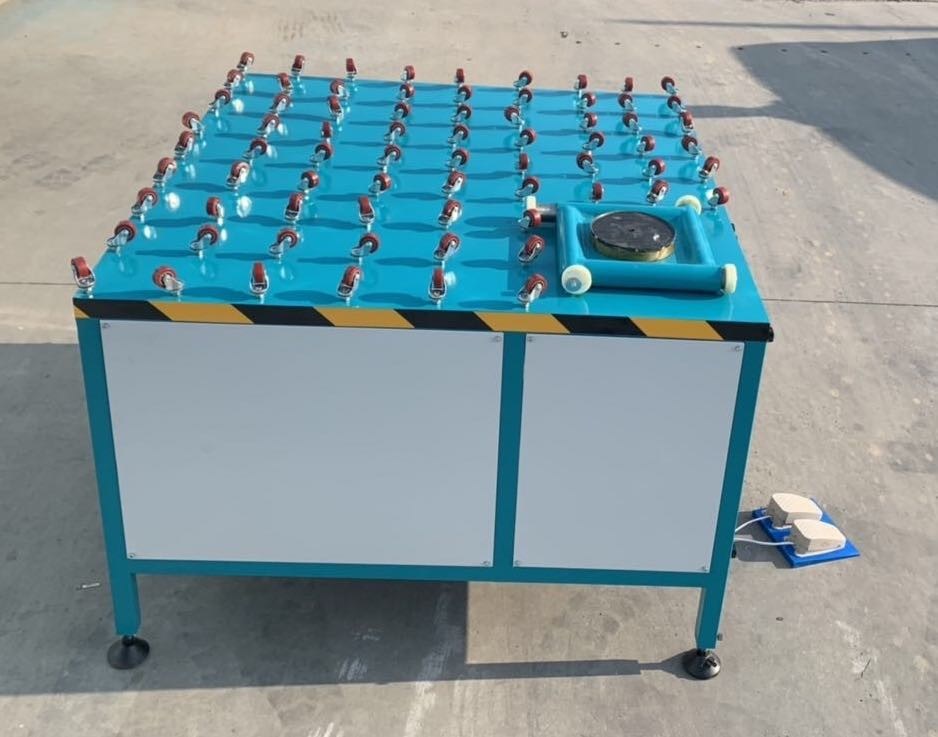

Rotating Table Double Glazing Glass Machine For Manual Sealing Pump Machine

Sealants Machine Rotating Table Machine - LJSK02

1. Introduction:

The rotating table machine is used to auxiliary rotating glass when using manual sealing pump machines, the size can be customized by different glass sizes. Rotated sealant-spreading table is last preface of creation insulation glass or act wall glass. It is a rotated table for draw double group gum. It can proceed 90°Integral times rotated,also can proceed face or contrary rotated. Revolve and vacuum sucker have auto control equipment, it can combine glass size freedom choice sucker and stretch arm control. Stretch arm of Special creation can guarantee the top flat surface on a flat surface. This rotated sealant-spreading table is rotated steady; Break down low, prop up the stability. It is an ideal equipment to create insulating glass.

2. Main technical parameters :

3. Main construction

This machine include Adjust flat bottom,Prop up,Revolve to prop up the device,Spread to move the device, spirit carries control system, electric appliances control system and plank.

3.1 Revolve prop up the device

Revolve prop up the device include the prop up,prop up the pole,prop up set,big sucker, small sucker.

3.2 Spread to move the device

This device consisted the Spread to move the deceleration electrical engineering,decelerate machine and chain round.

3.3 Spirit carries control system

This system included the Spirit source processor, electromagnetism valve, singled direction valve and vacuum occurrence machine, pass the system control the matches of the size sucker.

3.4 Electric appliances control system

This system consisted the spread to feel machine, after the electric appliances, electric appliances a piece that break the machine and can operate constitutes,working dependable, operation is simple, automation the degree is high.

4,Installation and adjustment

This machine body must be grounded of dry, have no the powder and have no the corrosion, temperature at 10-40℃. Regulate to adjust flat bottom, make the machine keep the level, check completely whether all tight firmwares conjunction place loosen or not move, combining tight.

Use multi-skein-wound annealed copper in double-color of yellow-green, with a sectional plane of 4mm2,the resistance between the machine body and the principal grounding spots after grounding should less than the 4Ω.

5,Use and operation

5.1 Glass size ≤500*400 mm

Fix the big sucker to prop up the dish in the turn-over first last, put on to change to deal with contact quickly, place the power supply knob switch in the " open" position, order the feet that move the vacuum sucker control step the switch, regulating manometer control knob, make the vacuum degree attain the fit pressure value( according to sucker glass prison then, do not adjust too big), according to the operation habit, change direction the electrical engineering to knob to place in the position between" positive" or" anti", order first the feet that move the vacuum sucker control step the switch( otherwise the electrical engineering do not turn), then order to move to turn to move the feet steps the switch, can immediately proceed the operation.

5.2 Glass size ≥550*400 mm

Prop up big sucker to dish to ascend to dismantle from the turn-over first, will change to deal with contact to change the small sucker spirit road inside quickly, then put the glass on the small sucker, regulate the length that prop up the pole according to the vitreous size, then turn to use to support the pole, making prop up the tight in a bolt for coming in contact with all glass then, willing prop up a top finally. The rest is together 5.1

6,Attention

6.1 When tune up to prop up the tight in a bolt for and glass contact even empress, must will prop up a top, prop up otherwise the pole turns to move, prop up, the round escapes from the glass, will produce the glass move the phenomenon.

6.2 Big sucker in usage, doing not want will enter the barometric dint adjusts of over high, otherwise the vacuum a glass for too bigger, being usage thickness is thinner, easy is ground the glass.

Application :

This equipment was designed by advanced technology from abroad and inside of China. It is special equipment used for spreading the two-component polysulphide glue and/or

two-component silicone structure glue for the aluminum type insulating glass or curtain wall glass.A and B pump adopt Korea brand HASCO.So it can ensure the reliable working-effect.

Special and convenient mixed device can ensure the high quality mixing of the two-component polysulphide glue and/or two-component silicone structure glue. This equipment is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.

Main feature :

1.Imported motor system to improve equipment efficiency

2.Imported sealant gun, stainless steel mixer

3.High pressure protect device

4.Mixed rate detector

5.Anti-back flow control structure 6.Important control parts adopt Korea Brand

6.Mixed rate detector can control the rare of two kinds of glue

7.Adopted Korea HASCO to improve equipment efficiency.

8.Sealant gun

We adopted the Sealant gun from Korea HASCO.

Stainless steel mix pipe and hybrid mandrel,easy to clean glue.

Special check valve in the pump to make sure extrude glue fluently and avoid incomplete mixing.

9.Glue bucket

Gluing evenly without bubbles.

Main technical parameter :
