Place of Origin:
Jinan
Brand Name:
Lijiang
Certification:
CE
Model Number:
LJT0202

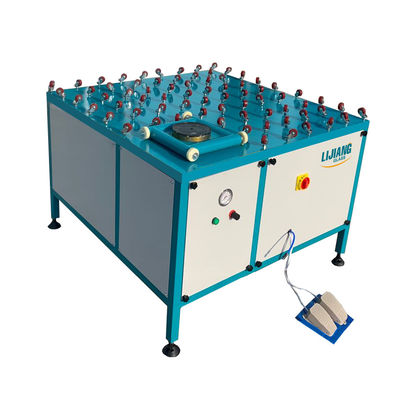

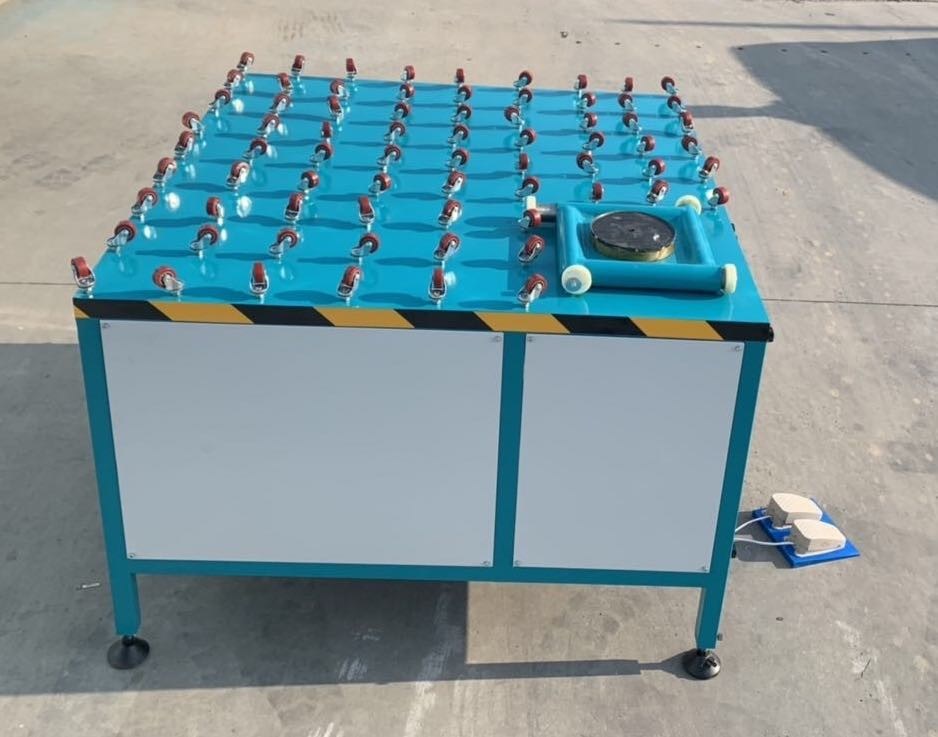

Big Rotating Table For Manual Sealing Pump Machine
Introduction of the Rotating table machine
Rotating table is used to help coat the second sealants for insulating glass, used together with the manual sealing pump machine. It is a small manual machine with cheap price. There is a sucker in the middle of the machine to support the glass. and the wheels are used to rotate the glass when coating the four sides of the glazing glass. The pedal can be controlled the start and stop.
Main feature of the rotating table machine :
• Easy operating, simple and flexible
• It is used for fixing and rotating glass when manual coating the outside of IG glass
• The middle sucker is suitable for small pieces of glass,however,extra support frame is for large pieces of glass
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.37kw |
| Operating dimension | 2000*2000mm |
| Warranty | 1 year |
Sealant-spreading Machine LJST02A
Main feature
• Imported motor system to improve equipment efficiency
• Sealant gun, stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical data
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
