Smart Insulating Glass Machine Vertical Four Axis Low E Glass Edge Deleting Machine

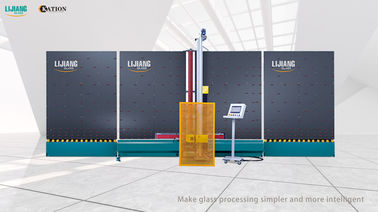

Large Image : Smart Insulating Glass Machine Vertical Four Axis Low E Glass Edge Deleting Machine

Product Details:

Place of Origin:	Jinan City, Shandong Province, China
Brand Name:	Jinan LIJIANG Glass
Certification:	CE & ISO9000
Model Number:	LJCM2545

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable Price
Packaging Details:	Wooden Cases Package and Container Transfer
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	15 sets per month

Contact Now

Smart Insulating Glass Machine Vertical Four Axis Low E Glass Edge Deleting Machine

Description

Name:	Vertical Edge Deleting Machine	Max.glass Processing Size:	2500*4500mm
Min.glass Processing Size:	350*500mm	Glass Thickness:	3-15mm
Edge Deleting Width:	10-150mm	Glass Conveyor Speed:	2-29m/min
Abrasive Wheel Width:	10/12/15mm	Air Supply:	Flow 0.2m3/min
Highlight:	Smart Insulating Glass Machine , Low E Glass Edge Deleting Machine , Four Axis Glass Edge Deleting Machine

Fully Automatic Smart Vertical Four-axis Low-E Glass Edge Deleting Machine Can Remove the Film the Four Sides on the Same Table

Product Description

LJCM2545 Automatic ertical Edge Deleting Machine

Jinan LIJIANG Glass Automatic Vertical edge erasing machine LJCM2545 is particular for LOW-E glass film remover. It embraces vertical design and creation line for simple association. The Low-E Glass edge erasing machine is straightforward and productive. It takes on imported servo control framework for transmission, exact situating and stable activity. Low-e glass film remover is particular for LOW-E glass film remover. It embraces vertical design and creation line for simple association

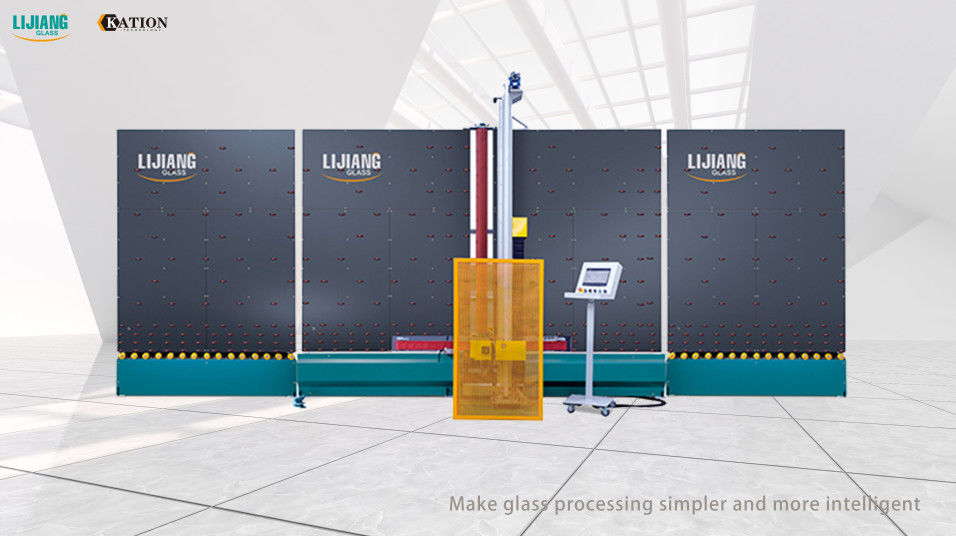

Product picture display

Benefits & Advantage

1) The automatic machine is equipped with a full servo convey system and Germany Simons control system.

2) It is capable of removing the scalene film with one operation. The deleting width for overlapped area is also adjustable

3) Manual operations are available for each function, useful in debugging and maintenance.

4) It is equipped with a dust suction device to mitigate dust pollution.

5) The input part and output part can be run asynchronously, improving productivity.

6) The stripping speed is adjustable (according to different film types and expected stripping effect).

7) Six servo motor control system and an adjustable linear dimension are supplied to guarantee a higher accuracy for arc / shapes.

8) The vertical low-e edge deletion machine can handle specially shaped glass panels, including the glass panels with holes for point-supported glass curtain wall system.

9) The stripping width tolerance is smaller than 1mm,the stripping efficiency is >90% (for reference).

Specification

Item.	Spec.
Max. glass processing size	2500*4500mm
Min. glass processing size	400*280mm
Glass thickness	3-15mm
Diameter of grinding wheel	200mm
Conveyor height	500mm
Edge deleting width	10-50mm
Edge deleting speed	2-29m/min
Abrasive wheel width	10/12/15mm
Glass thickness	3 - 15mm
Grinding wheel speed	0~3000r/min
Total air consumption	100L/ min
Air pressure	≥0.8MPa
Total power	3P 380V 50Hz 3.35KW

NAME	ORIGIN	BRAND
Servo motor	Taiwan	TAIDA
PLC	Taiwan	TAIDA
Pneumatic component	Taiwan	AAIRTAC
Low pressure electricity	Germany	SIEMENS
Circuit breaker	Germany	SIEMENS
Sensor switch	Korea	AUTONICS
Approach switch	Korea	AUTONICS
Limit switch	Taiwan	TEND
Connector	Germany	SIEMENS
Frequency converter	France	SCHNEIDER
Main Button	France	SCHNEIDER
Intermediate relay	Japan	OMRON
