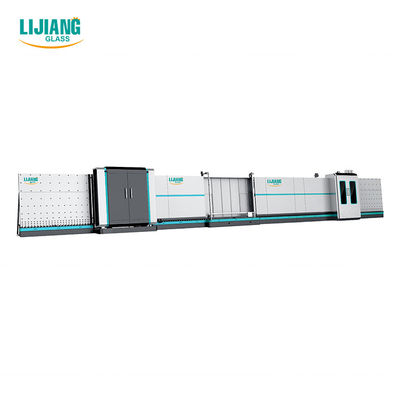

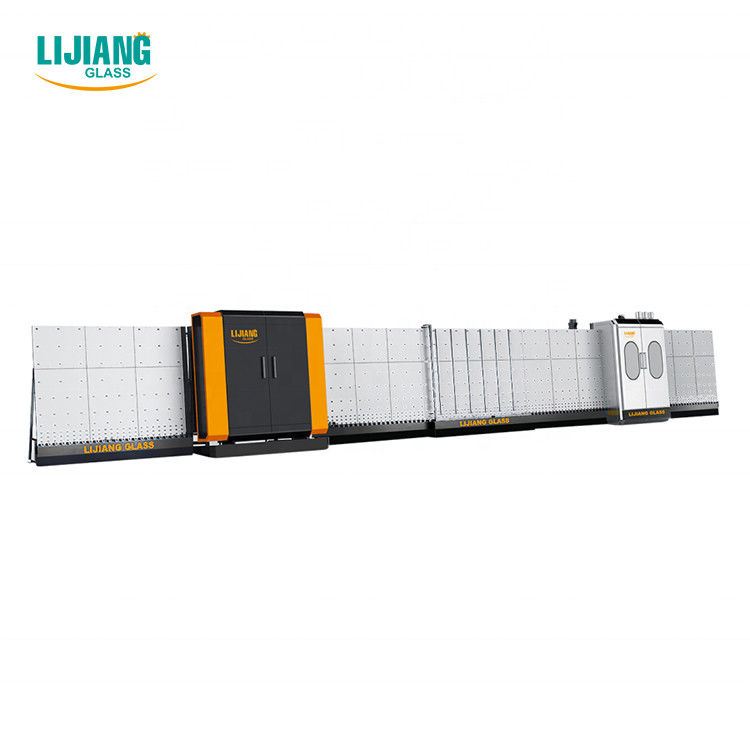

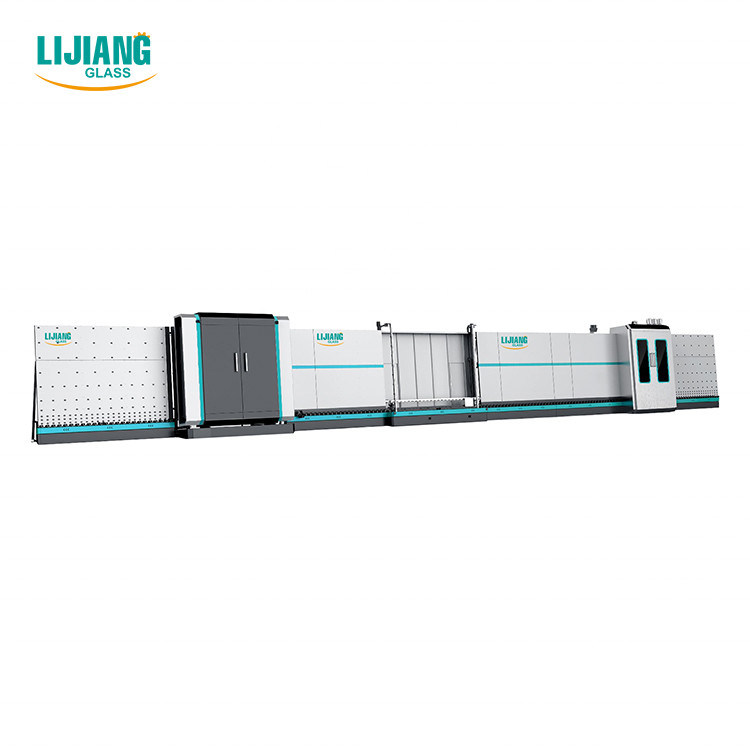

DGU Vertical Insulating Glass Production Line 3300mm High 7000mm Long

Details introduce of the LJBZ3370

01 transfer section

Coating detection mechanism, automatic detection of offline Low-e film

02 washing machine

Main feature:

• Use 6 0.1mm soft bristles and soft bristles to clean low-e glass

• The new air knife adopts aluminum profile (duckbill air knife), and the size of the air outlet is adjusted by the aluminum profile duckbill. This can reduce the number of adjustment screws, ensure that each screw is not loose, and avoid air knife resonance.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display can accurately display the washing speed (8-10m)

• Water tank automatic temperature control and water replenishment system

• European noise reduction system

• stainless steel material

• 03 discharge section

• Storage glass

• 04 inspection and installation section

The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass

• 05 transfer section

• Automatic measurement of glass thickness. It can be used according to actual needs when working.

• 06 pressing and filling section

Main feature:

• Maximum. 2500mm*3500mm hollow glass can be compressed

• Conveyor belt is used to transport glass, and servo motor is used to press glass

• The pressure plate can be opened for easy maintenance

• Adjustable pressure plate structure to ensure long service life

• Automatically filled with argon, the sealing effect is obvious, and the argon content is higher

• Set up areas to fill different sizes of glass, and adopt subsequent sealing methods to reduce argon loss

• The gas value can be set and the gas filling process can be displayed on the touch screen

• Fast response sensor for permanent control of the inflation process

• Gas concentration can reach more than 90%

• No need to drill holes in the spacer frame

• Standard gas is argon

• 07 Discharge section

• Storage glass

• Can be connected to the sealing machine
