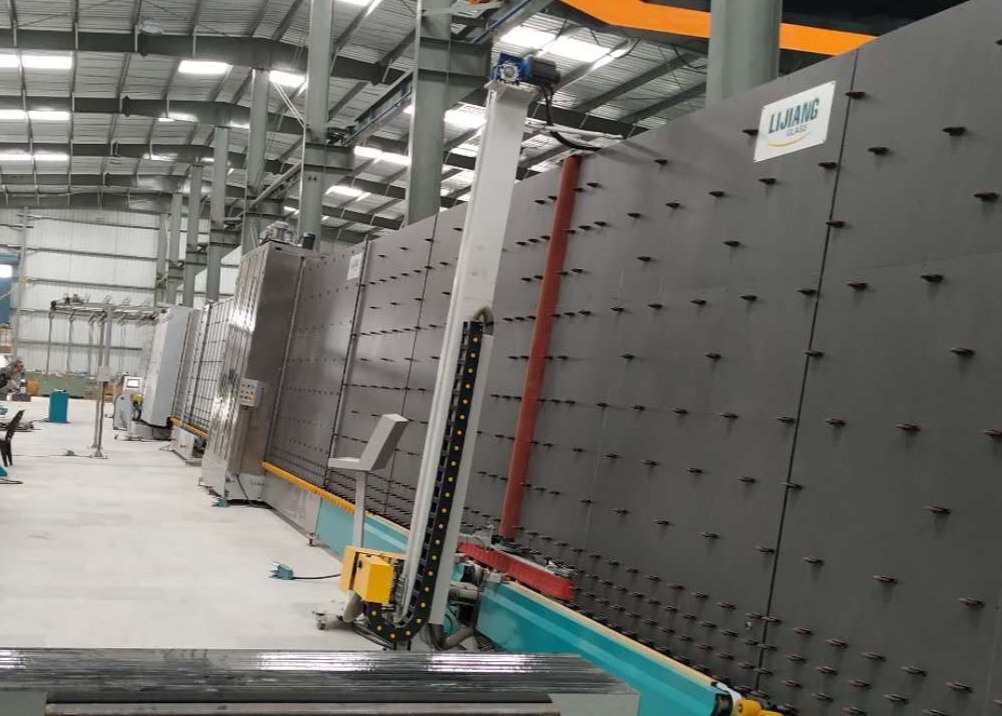

Name: Smart Vertical Four Axis Low E Glass Edge Deleting Machine Can Remove The Film
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: LJCM2545
Availability: InStock

Home > Products > CNC Glass Cutting Machine >

Smart Vertical Four Axis Low E Glass Edge Deleting Machine Can Remove The Film

Low E Glass Edge Deleting Machine

Four Axis Glass Edge Deleting Machine

Smart Vertical Glass Edge Deleting Machine

Place of Origin:

Jinan City, Shandong Province, China

Brand Name:

Jinan LIJIANG Glass

Certification:

CE & ISO9000

Model Number:

LJCM2545

Request A Quote

Product Details

Name:

Smart Vertical Edge Deleting Machine

Max.glass Processing Size:

2500*4500 Mm

Min.glass Processing Size:

350*500 Mm

Glass Thickness:

3-15 Mm

Edge Deleting Width:

10-150 Mm

Glass Conveyor Speed:

2-29 M/min

Abrasive Wheel Width:

10/12/15mm

Air Supply:

Flow 0.2 M3 / Min

Highlight:

Low E Glass Edge Deleting Machine

Four Axis Glass Edge Deleting Machine

Smart Vertical Glass Edge Deleting Machine

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable Price

Packaging Details

Wooden Cases Package and Container Transfer

Delivery Time

15 Working Days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram and so on.

Supply Ability

15 sets per month

Full-Automatic Laminated Glass Cutting Machine

Get Best Price

200m/Min CNC Glass Cutting Tables For Glass Manufacturing

Get Best Price

High Speed 200m/min CNC Glass Cutting Machine High Tech Cutting table

Get Best Price

2-255mm CNC Glass Cutting Machine Table Glass Cutting And Polishing Machine

Get Best Price

Contact Now

Product Description

Automatic Smart Vertical Four-axis Low-E Glass Edge Deleting Machine Can Remove the Film the Four Sides on the Sam

Product Description

LJCM2545 Automatic Vertical Edge Deleting Machine

Jinan LIJIANG Glass Automatic Vertical edge deleting machine LJCM2545 is specialized for LOW-E glass film remover. It adopts vertical structure and production line for easy connection. The Low-E Glass edge deleting machine is simple and efficient. It adopts imported servo control system for transmission, accurate positioning and stable operation. Low-e glass film remover is specialized for LOW-E glass film remover. It adopts vertical structure and production line for easy connection.

Product picture display

Benefits & Advantages

1) The automatic machine is equipped with a full servo convey system and Germany Simons control system. 2) It is capable of removing the scalene film with one operation. The deleting width for overlapped area is also adjustable 3) Manual operations are available for each function, useful in debugging and maintenance. 4) It is equipped with a dust suction device to mitigate dust pollution. 5) The input part and output part can be run asynchronously, improving productivity. 6) The stripping speed is adjustable (according to different film types and expected stripping effect). 7) Six servo motor control system and an adjustable linear dimension are supplied to guarantee a higher accuracy for arc / shapes. 8) The vertical low-e edge deletion machine can handle specially shaped glass panels, including the glass panels with holes for point-supported glass curtain wall system. 9) The stripping width tolerance is smaller than 1mm,the stripping efficiency is >90% (for reference).

The Smooth Glue Surface

After applying glue, It will ensure that the corners of the glass are full, without bubbles and other impurities, and the glue surface is so smooth.

The High-precision Servo Control System

It adopts Japanese Yaskawa servo control system with clear wiring layout to ensure stable overall performance of the equipment.

The Glass Coating

Automatically measure glass size, glue depth and glue speed through linear adjustment to ensure the stability of insulating glass coating quality.

Glue Pump A and Glue Pump B

Equipped with a single A component and a single B component, mixed and glued. When applying glue, glue pump A and glue pump B are automatically mixed to realize automatic proportioning.

Specification

Item.	Spec.
Max. glass processing size	2500*4500mm
Min. glass processing size	400*280mm
Glass thickness	3-15mm
Diameter of grinding wheel	200mm
Conveyor height	500mm
Edge deleting width	10-50mm
Edge deleting speed	2-29m/min
Abrasive wheel width	10/12/15mm
Glass thickness	3 - 15mm
Grinding wheel speed	0~3000r/min
Total air consumption	100L/ min
Air pressure	≥0.8MPa
Total power	3P 380V 50Hz 3.35KW

NAME	ORIGIN	BRAND
Servo motor	Taiwan	TAIDA
PLC	Taiwan	TAIDA
Pneumatic component	Taiwan	AAIRTAC
Low pressure electricity	Germany	SIEMENS
Circuit breaker	Germany	SIEMENS
Sensor switch	Korea	AUTONICS
Approach switch	Korea	AUTONICS
Limit switch	Taiwan	TEND
Connector	Germany	SIEMENS
Frequency converter	France	SCHNEIDER
Main Button	France	SCHNEIDER
Intermediate relay	Japan	OMRON
