Product Details:
|
| Certification: | CE | Product Name: | Silicone Sealants Spreading Machine |
|---|---|---|---|
| Condition: | New | Dimension(l*w*h): | 1100*950*1630 Mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Field Maintenance And Repair Service | Weight: | 650V Kg |
| Warranty: | 1 Year | Usage: | For Process Insulating Glass |
| Voltage: | 380V 50Hz(Customizable) | ||
| High Light: | Two Pump Silicone Sealants Spreading Machine,Manual Silicone Sealants Spreading Machine,Two Pump silicone coating machine |
||

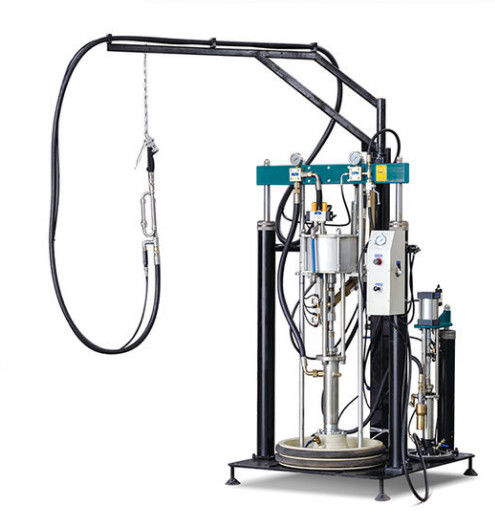

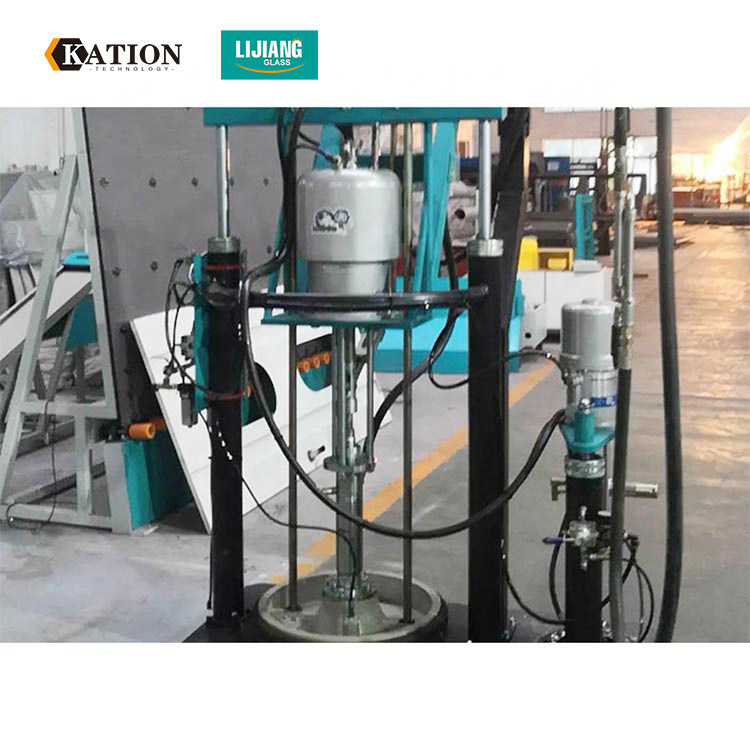

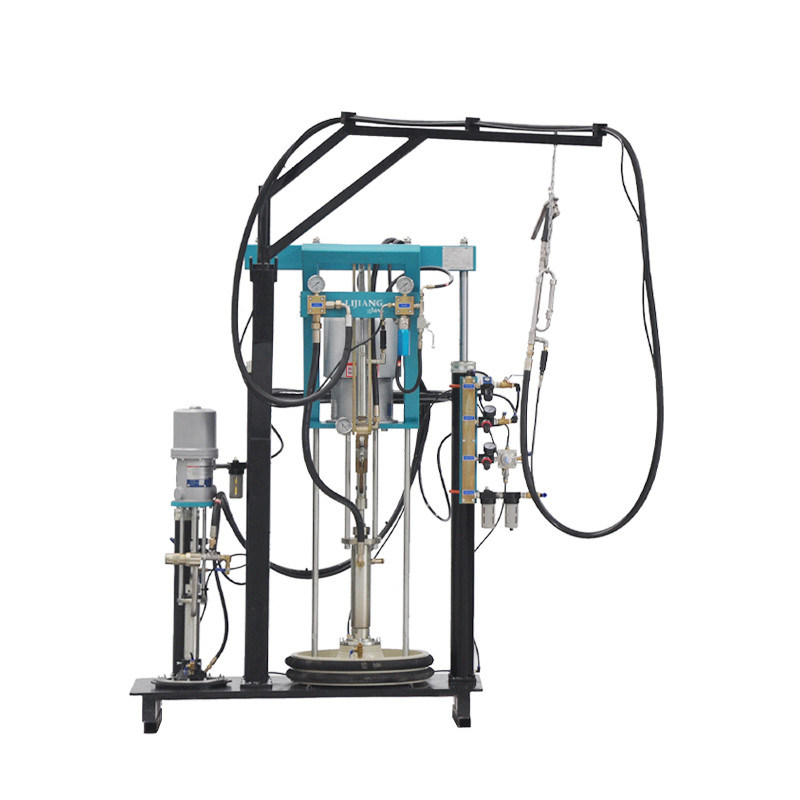

Application :
This equipment was designed by advanced technology from abroad and inside of China. It is special equipment used for spreading the two-component polysulphide glue and/or
two-component silicone structure glue for the aluminum type insulating glass or curtain wall glass.A and B pump adopt Korea brand HASCO.So it can ensure the reliable working-effect.
Special and convenient mixed device can ensure the high quality mixing of the two-component polysulphide glue and/or two-component silicone structure glue. This equipment is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.
Main feature :
1.Imported motor system to improve equipment efficiency
2.Imported sealant gun, stainless steel mixer
3.High pressure protect device
4.Mixed rate detector
5.Anti-back flow control structure 6.Important control parts adopt Korea Brand
6.Mixed rate detector can control the rare of two kinds of glue
7.Adopted Korea HASCO to improve equipment efficiency.
8.Sealant gun
We adopted the Sealant gun from Korea HASCO.
Stainless steel mix pipe and hybrid mandrel,easy to clean glue.
Special check valve in the pump to make sure extrude glue fluently and avoid incomplete mixing.
9.Glue bucket
Gluing evenly without bubbles.
Main technical parameter :
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
| Weight | 490kg |
| Capacity of the glue drum | 200-300 ml/200 kg |
Sealants Machine Rotating Table Machine - LJSK02
1. Introduction:
The rotating table machine is used to auxiliary rotating glass when using manual sealing pump machines, the size can be customized by different glass sizes. Rotated sealant-spreading table is last preface of creation insulation glass or act wall glass. It is a rotated table for draw double group gum. It can proceed 90°Integral times rotated,also can proceed face or contrary rotated. Revolve and vacuum sucker have auto control equipment, it can combine glass size freedom choice sucker and stretch arm control. Stretch arm of Special creation can guarantee the top flat surface on a flat surface. This rotated sealant-spreading table is rotated steady; Break down low, prop up the stability. It is an ideal equipment to create insulating glass.
2. Main technical parameters :
| Working environment temperature | 15-40℃ |
| Carry/deposit temperature | -20-55℃ |
| Carry/deposit humidity | 30-90% |
| Input voltage | AC480V±10%,60HZ |
| Input power | 120w |
| Rotated speed | 6.5r/min |
| Air consumption | 0.5-0.8 Mpa |
| Max glass size | 2000*1500 mm |
| Min glass size | 200*200 mm |
| Dimensions | 600*450*950 mm |
