Name: Automatic Measurement Double Glazing Glass Sealing Robot ERP System
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: LJFJ2025QS
Price: 52,500.00 USD
Availability: InStock

Home > Products > Insulating Glass Machine >

Automatic Measurement Double Glazing Glass Sealing Robot ERP System

Double Glazing Glass Sealing Robot

Automatic Measurement Glass Sealing Robot

ERP System double glazing machine

Place of Origin:

China

Brand Name:

LIijiang Glass

Certification:

Model Number:

LJFJ2025QS

Request A Quote

Automatic Measurement Double Glazing Glass Sealing Robot ERP System

Product Details

Voltage:

380V 50HZ

Condition:

New

Dimension(l*w*h):

8700mm*2000mm*3500mm

After-sales Service Provided:

Provide

Certification:

Weight:

3500KG

Power(w):

15kw

Warranty:

1 Year

Name:

Auto Sealing Robot Machine

Min Glass Size:

400*280mm

Max. Glass Size:

2000mm*2500mm

Highlight:

Double Glazing Glass Sealing Robot

Automatic Measurement Glass Sealing Robot

ERP System double glazing machine

Payment & Shipping Terms

Minimum Order Quantity

Price

USD 50000.00 - 55000.00

Packaging Details

Container/wooden box

Delivery Time

30 days

Payment Terms

L/C, T/T

Supply Ability

50sets/month

15m/min Automatic Low-E Glass Film Removing Machine For Glass Edge Deletion

Get Best Price

Video

High Efficiency PLC Insulating Glass Machine For Insulating Glass Processing

Get Best Price

Video

CE Certified Insulating Glass Machine Low Power Consumption

Get Best Price

Video

Automatic Insulating Glass Machine 2500x3500mm For Glass Processing

Get Best Price

Contact Now

Product Description

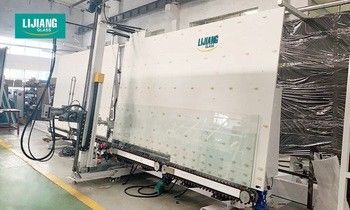

Automatic Measurement Double Glazing Glass Sealing Robot ERP System 0

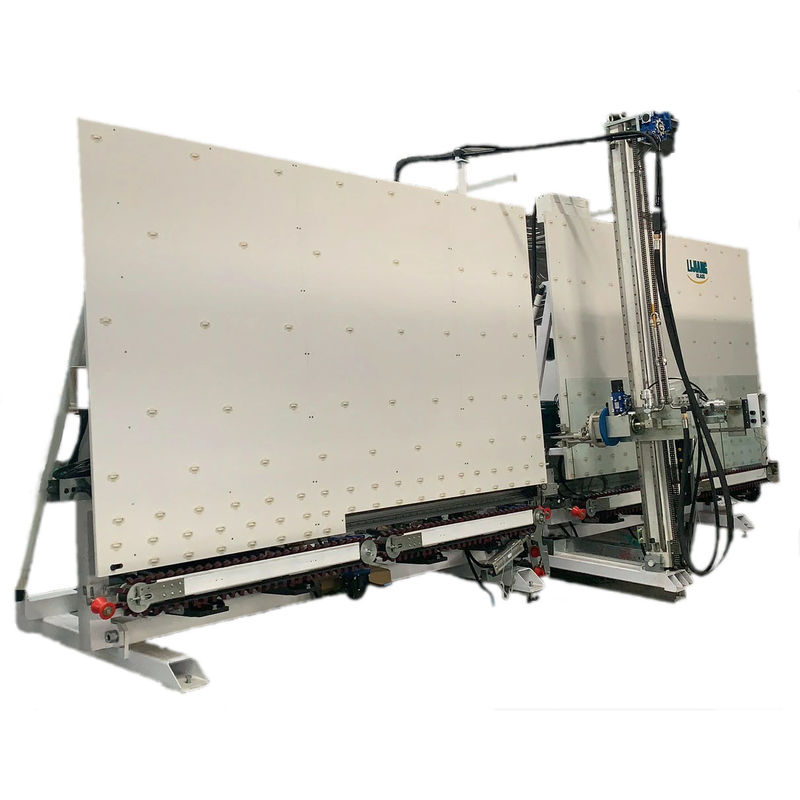

Automatic Insulated Glass Sealing Robot

•Japan Yaskawa servo system control, 8 axes, 7 sets of servo control system, full automatic and high-efficiency sealing machine •4 sections, can storage glass •Adopt timing belt, smooth transfer and accurate position •Automatically repair glass corners with scraper and roller •Automatically measure glass size, glue depth (30mm) •Every auto-function is with manual operation •Can coat double glass •Shape glass with optional edges, step glass, triple glass (Optional) •One set of booster pump controls two groups of sealants (Optional) •Can use silicone, polysulfide and silicone structural sealants •Glue head is in the front of the machine, which is easy for coating step glass •Can be connected with insulating glass processing line With code scanning function (Optional)

Parameters

Working speed	5-40m/min
Glass thickness	12-50mm
Min. glass size	400*300mm
Max. glass size	2000*2500mm
Voltage power	380V 15kw
Overall dimension	1100020003500mm
