Name: Full Automatic High Speed 200m/min CNC Glass Cutting Machine Glass Loading Table
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: CY-CNC-6133（G）
Price: 31,500.00 USD
Availability: InStock

Home > Products > CNC Glass Cutting Machine >

Full Automatic High Speed 200m/min CNC Glass Cutting Machine Glass Loading Table

200m/Min CNC Glass Cutting Machine

6100×3300mm CNC Glass Cutting Machine

200m/Min Glass Loading Table

Place of Origin:

China

Brand Name:

Lijiang Glass

Certification:

Model Number:

CY-CNC-6133（G）

Request A Quote

Product Details

Max Size:

6100×3300mm

Thickness:

3～19mm

Cutting Accuracy:

±0.30

Cutting Speed:

0-200m/min

Total Power Of Equipment:

9-15kw

Machine Size:

6800×4100×1500mm

Highlight:

200m/Min CNC Glass Cutting Machine

6100×3300mm CNC Glass Cutting Machine

200m/Min Glass Loading Table

Payment & Shipping Terms

Minimum Order Quantity

Price

USD 35000.00 - 28000.00

Packaging Details

Container/wooden box

Delivery Time

30days

Payment Terms

L/C, T/T

Supply Ability

15sets/month

Full-Automatic Laminated Glass Cutting Machine

Get Best Price

200m/Min CNC Glass Cutting Tables For Glass Manufacturing

Get Best Price

High Speed 200m/min CNC Glass Cutting Machine High Tech Cutting table

Get Best Price

2-255mm CNC Glass Cutting Machine Table Glass Cutting And Polishing Machine

Get Best Price

Contact Now

Product Description

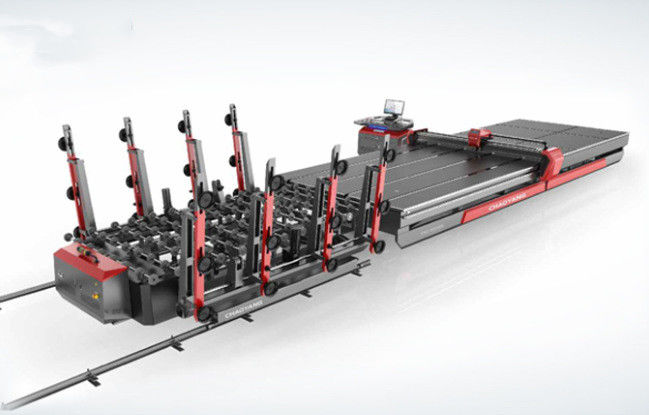

CNC Full Automatic High Speed Glass Cutting machine Glass Cutting Line Glass Loading Table

CY-CNC-6133(G type)Fully automatic glass cutting Line

CNC automatic glass cutting line is composed of automatic loading table, automatic cutting table and air-floated breaking table.

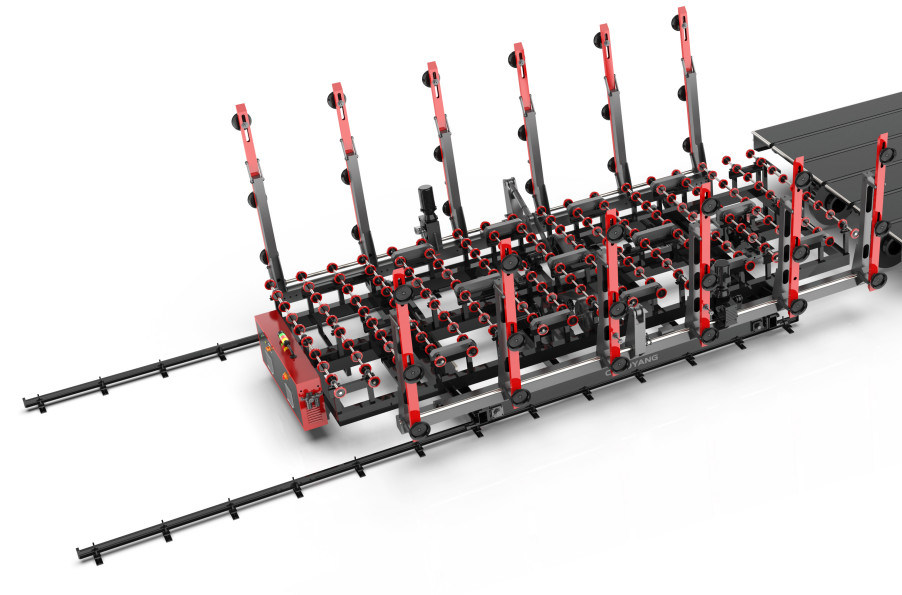

1.CY-SP-6133 Fully automatic glass loading table

It is mainly used for automatic glass loading. After putting the glass in the designated position and giving the signal of loading, the big arm turns up about 95 degrees through the overturning mechanism, and the whole machine starts to move forward. When the induction device on the small

arm touches the glass, the whole machine stops walking and the glass is sucked by the suction cup through the vacuum system on the glass,small arm lifting motor lifts the glass upward and backward about 80 mm. The walking motor retreats and the big arm falls down. When the bing arm is in place, the suction cup under the glass begins to blow. When the small arm falls down, the glass falls on the conveyor wheel. Finally, the glass is conveyed to the cutting table by the conveyor wheel.

Full Automatic High Speed 200m/min CNC Glass Cutting Machine Glass Loading Table 1

Technical parameter:
* ,Sheet size: Min size: 2400 *1500mm (Single Side loading)
* ,Max loading size: 6100 x 3300 mm
* ,Glass sheet thickness: 3 ~ 19mm
* ,Working absorption depth: 700 mm
* ,X-axis walking speed: 5-25m/min (adjustable)
* ,Y-axis walking speed: 8-12 m/min (adjustable)
* ,Conveying speed: 5-25m/min (adjustable)

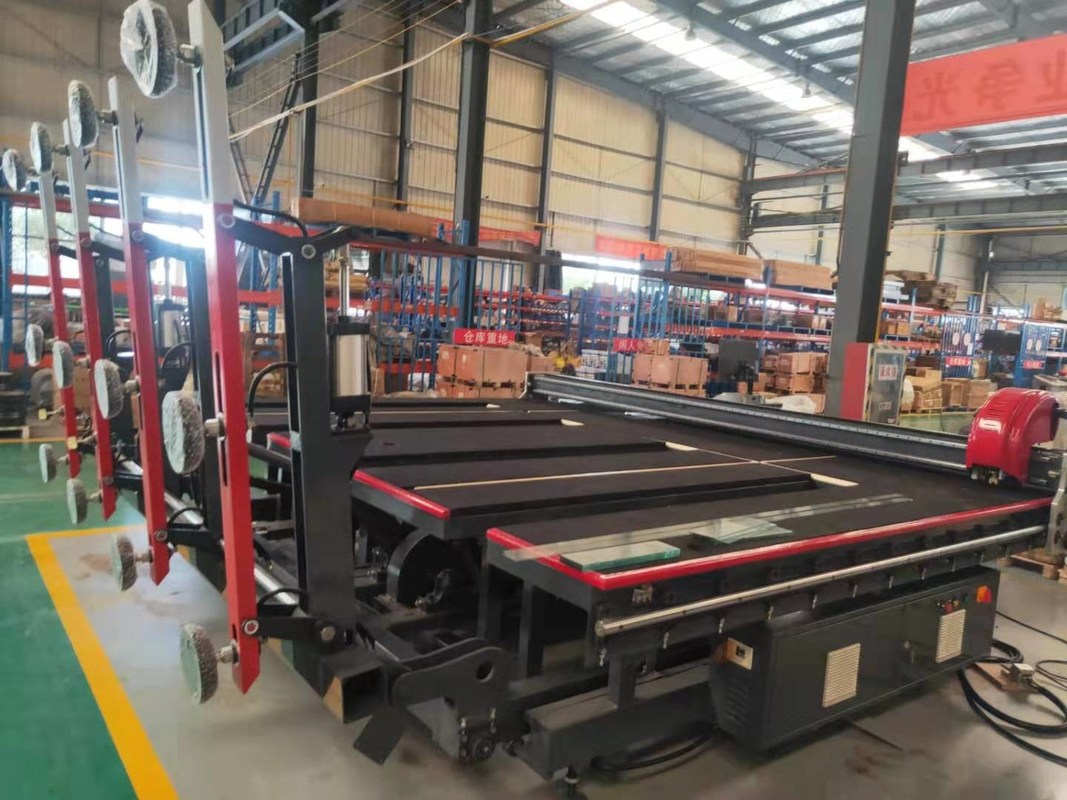

2.CY-CNC-6133(G type)Fully automatic glass cutting machine

Its working principle is to convey the cut glass by conveying belt to worktable, automatically input the position of glass

through photoelectric scanning system, and then the cutting head with diamond wheel on the cutter holder moves along X and Y

directions respectively by program control,cutc the sheet. CNC motion controller is used in the control part of the machine, and

advanced AC servo motor is used in the drive part.

Full Automatic High Speed 200m/min CNC Glass Cutting Machine Glass Loading Table 2

Technical parameter:
* ,Max size:6100×3300mm
* ,Thickness:3～19mm
* ,Cutting accuracy:±30
* ,Cutting accuracy of special-shaped glass:±35
* ,Cutting speed:0-200m/min
* ,Conveying speed:0-25m/min

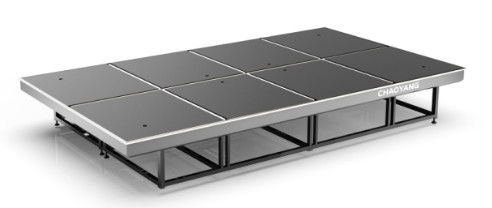

3.CY-BP-6133 Air-floated breaking table (3+1 type)

Full Automatic High Speed 200m/min CNC Glass Cutting Machine Glass Loading Table 3

Technical parameter:

1),Breaking bar: 3+1 type----

2),Table Size: 6300×3500mm

3),Glass thickness:3-19mm

4),Power: 8kw

5),Table height: 900 + 20mm
