Product Details:
|
| After-sales Service Provided: | Online Support | Condition: | New |
|---|---|---|---|
| Voltage: | 220V/380V/415V | Weight: | According To The Size |
| Dimension(l*w*h): | According To The Size | Power(w): | 3kw |
| Glass Thickness: | 2-25mm | Warranty: | One Year |
| Application: | Building Glass | Usage: | Glass Cutting |
| Product Name: | CNC Glass Cutting Machine | Name: | Mini Cnc Glass Cutting Machine |
| Control System: | CNC Control | Color: | Customized |
| Cutting Accuracy: | ±0.5mm | Max. Speed: | 160m/Min |
| High Light: | 160m/Min Automatic Glass Cutting Table,Glass Sharping Automatic Glass Cutting Table,160m/Min Glass Cutting Machinery |
||

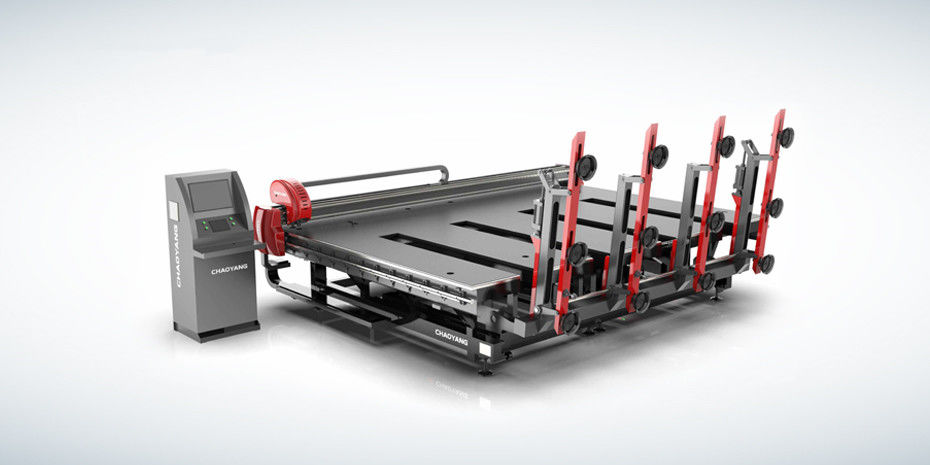

This glass auto loading table suitable for glass pick-up, allowing glass cutting and breaking on the air floating table.
> Equipped with vacuum pump, the table can start work with a power connection.
Features:
1.Innovative system is the only one can guarantee perfect uniformity and constant quality of all the machines that are being built and every single parts of machines can be easy to replace if needed, even the felt table surface.
2.Control panel with incorporated independent Computer , software packet with optimization program developed in Multitasking systems, user graphic interface for the managing of the cutting cycle and machine monitoring , hydraulic tilting surface, air cushion, ventilator for the movement of the sheet on the surface
3.Famous imported Electrical components or reliable domestic brands to make high cutting precision and stability, can meet all kinds of shapes of glass cutting.
4.Automatic oil injection and automatic constant pressure regulation functions, effective way to ensure the stability of the cutting and cutting effect. Simple, easy to manage, no special requirements for operators, easy training to start, unskilled workers will be able to operate it too.
5.Safety of the glass presence:
Automatic sensor is placed on the cutting head, to stop the machine in case of lack of glass sheets
6.imported cutter wheels and setting tool.stable voltage power supply,English cutting software, instruction,AUTOCAD Designed graph and figure,all cutting are fully CNC Control.
Working process:

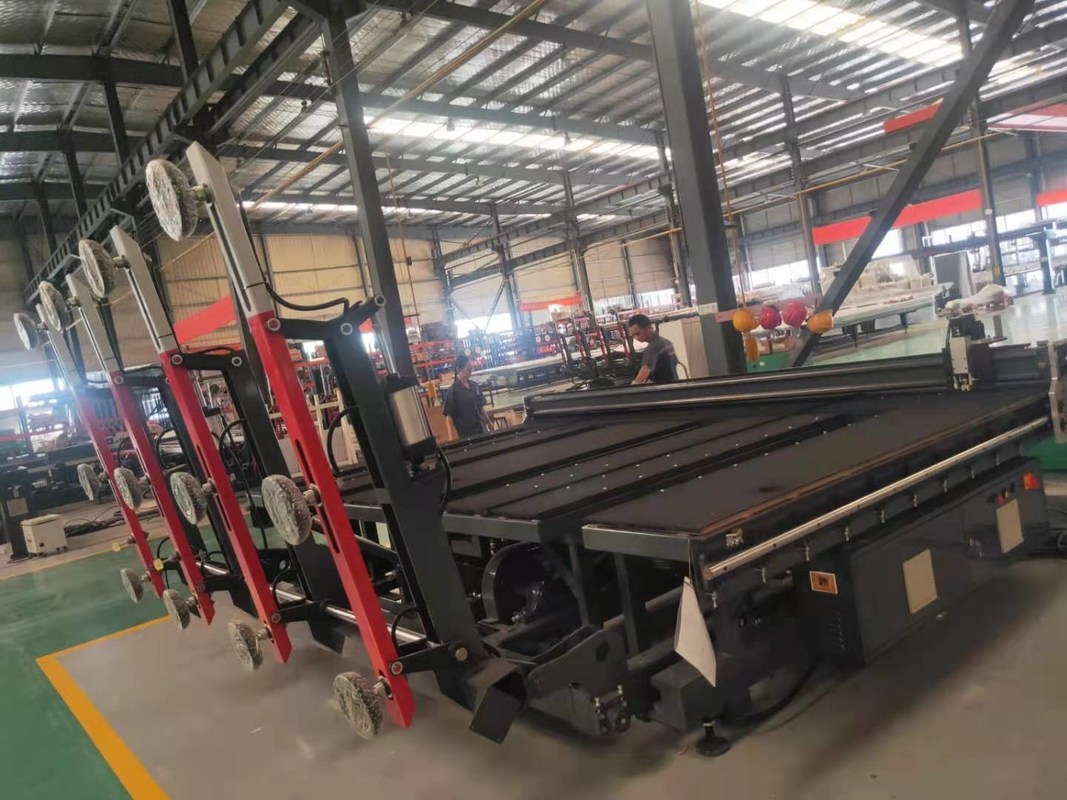

1) Work flow: After starting the inputting machine, arms automatically suck glass from the shelf. Under sensor controlled, glass automatically find glass edge in the X and Y directions.
After moving glass sheets to designated location, transport glass to the automatic cutting table.Cutter will move to coordinate origin, and automatically start to cut according to the preinstall graph.
2)The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing.
| Item. | Spec. |
| Input Voltage | 380V/50Hz~60Hz/3 Phases |
| Power | 14KW |
| Air pressure | 0.4-0.8 Mpa |
| Cutting speed | 0-210m/min |
| Sucker quantity | 9 pieces(3 sucker for every arm) |
| Loading time | 20-50s |
| Vaccum pressure | -70~-90kpa(can be adjusted according to glass thickness) |
| Processing thickness | 2.5-19mm |
| Automatic label(yes/no) | yes |
| Loading moving control | Remote control |
| Sucking loading weight | 500kgs |
| Cutting size | 4200x2600mm |
| Overall size | 4600*3250*1500mm |
| Breaking table size | 4300*2700*900mm |
| Working table height | 900mm |
| Weight | 4900kg |
