Place of Origin:
China
Brand Name:
Jinan Lijiang Glass Machinery
Certification:
CE & ISO9000
Model Number:
Lijiang Glass Cutting Machine

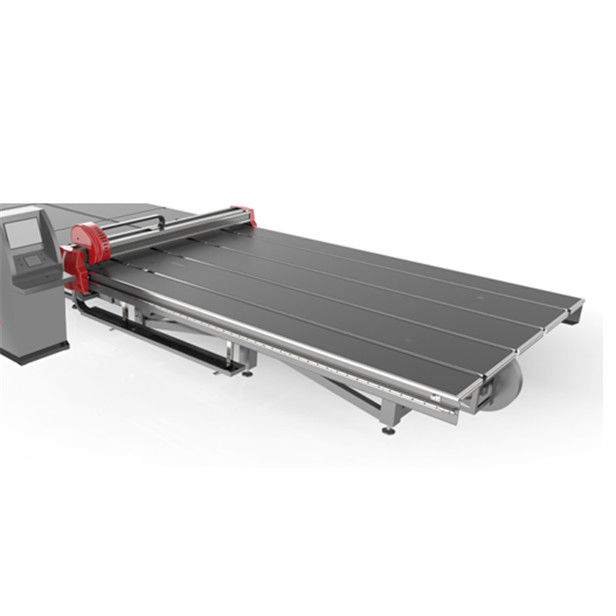

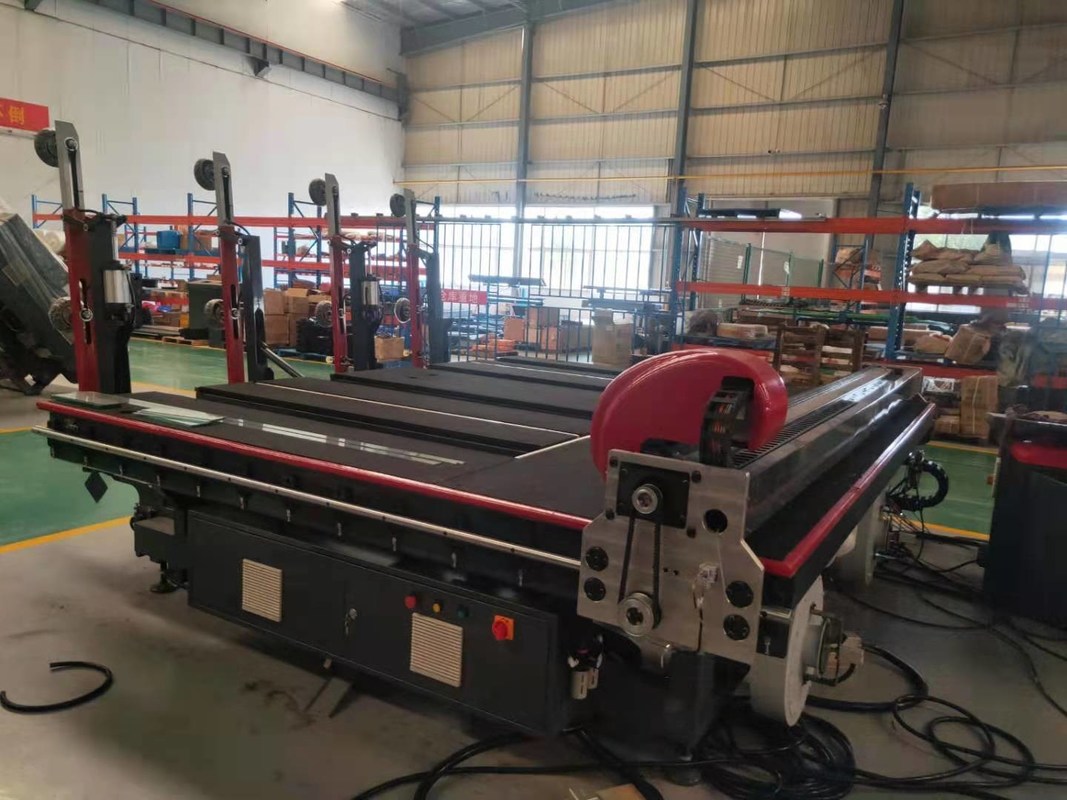

CNC Automatic Glass Cutting Machine Shaped Glass Cutting Table Glass Cuting Machine on Sale
Description:
The machine is equipped with advanced international high-precision servo motors and bearing thread spindles.
The onboard controller consists of PLC computer, CD drive, tough screen, and reliable peripherals.
With the features of accurate transmission and fast convenient cutting size adjustment, the machine is especially suitable for users who want to frequently change the type of specification of glass.
The series of the automatic precision cutting tables are suitable for cutting different specifications of linear and rectangular glass.
It should be the first choice for enterprises engaged in processing sophisticated glass such as decoration glass, special glass, commodity glass, glass for electronic applications and glass for metical using etc.
The cutting table can cut 3 to 24mm thick glass. The minimum cutting unit is 1mm.
|
Item.
|
|
| Input Voltage | 380V/50Hz~60Hz/3 Phases |
| Power | 14KW |
| Air pressure | 0.4-0.8 Mpa |
| Cutting speed | 0-210m/min |

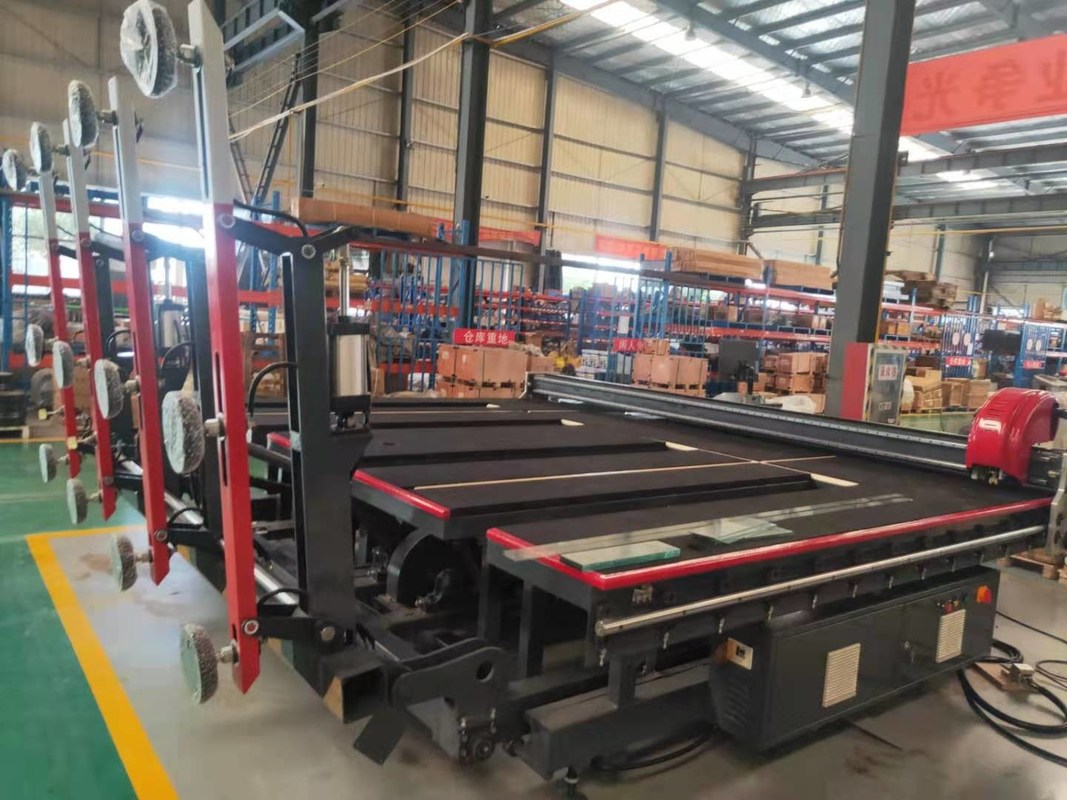

| Sucker quantity | 9 pieces(3 sucker for every arm) |
| Loading time | 20-50s |
| Vaccum pressure | -70~-90kpa(can be adjusted according to glass thickness) |
| Processing thickness | 2.5-19mm |
| Automatic label(yes/no) | yes |
| Loading moving control | Remote control |
| Sucking loading weight | 500kgs |
| Cutting size | 4200x2600mm |
| Overall size | 4600*3250*1500mm |
| Breaking table size | 4300*2700*900mm |
| Working table height | 900mm |
| Weight | 4900kg |
Electrical Part:
PC Control and Microsoft Windows Interface
Power Supply: 220V/60Hz. With voltage stabilizer
Motor: YASKAWA made in Japan; with American control card
Frequency Converter: YASKAWA made in Japan
Variable-frequency Motor: YASKAWA made in Japan
EQUIPMENTS CONFIGURATION:
Infostructure:
Using international high quality profiles for welding and for aging treatment,ensuring frame and platform without deformation.
Cutter-Base: Adjusting pressure according to the thickness of glass,cutter head with 360 degree rotatable, knife cut under cushion(cutting accurately for any straight line and special-shaped glass)
Position System:
Photoelectric automatic edge finding
Oiling System:
Automatic pneumatic oiling
Transferring System:
Air flotation conveying system
Platform:
Using high quality and high density E2 level waterproof panel(Joint venture products),
moistureproof effectively, deformation is not easy.
Felt: Good flatness with good planeness from Sino-foreign joint venture,
Anti-static, High wear resistance.
Solid wood hemming: Using anticorrosive solid wood by high temperature treatment,
deformation is not easy(protecting felt effectively).
