20S Automatic Glass Cutting Table Glass Cutting Machinery For Insualting Glass Sharping

20S Automatic Glass Cutting Table Glass Cutting Machinery For Insualting Glass Sharping
20S Automatic Glass Cutting Table Glass Cutting Machinery For Insualting Glass Sharping
20S Automatic Glass Cutting Table Glass Cutting Machinery For Insualting Glass Sharping 20S Automatic Glass Cutting Table Glass Cutting Machinery For Insualting Glass Sharping 20S Automatic Glass Cutting Table Glass Cutting Machinery For Insualting Glass Sharping 20S Automatic Glass Cutting Table Glass Cutting Machinery For Insualting Glass Sharping

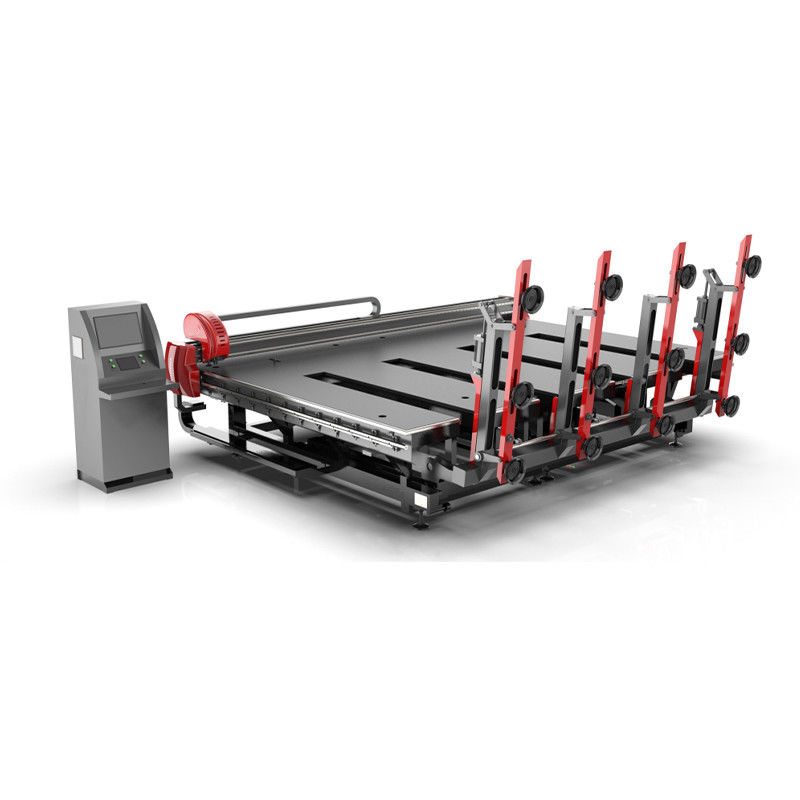

Large Image :  20S Automatic Glass Cutting Table Glass Cutting Machinery For Insualting Glass Sharping

Product Details:
Place of Origin: China
Brand Name: Jinan Lijiang Glass Machinery
Certification: CE & ISO9000
Model Number: Lijiang Glass Cutting Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Discussible
Packaging Details: Wooden Cases Package
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 sets per month

20S Automatic Glass Cutting Table Glass Cutting Machinery For Insualting Glass Sharping

Description
After-sales Service Provided: Online Support Condition: New
Voltage: 220V/380V/415V Weight: According To The Size
Dimension(l*w*h): According To The Size Power(w): 3kw
Glass Thickness: 2-25mm Warranty: One Year
Application: Building Glass Usage: Glass Cutting
Product Name: CNC Glass Cutting Machine Name: Mini Cnc Glass Cutting Machine
Control System: CNC Control Color: Customized
Cutting Accuracy: ±0.5mm Max. Speed: 160m/Min
High Light:

Sharping Automatic Glass Cutting Table

,

20S Automatic Glass Cutting Table

,

Sharping Glass Cutting Machinery

Automatic Glass Cutting table Glass Cutting Machinery



for Hollow glass Insualting Glass Sharping on Sale



Function



It can be applied to the following areas:

Architectural glass, car glass, furniture glass, craft glass, decorative glass, cupboard glass, hollow glass

,spliced mirror .

1.Automatic glass loading.

2.Automatic glass cutting:various shapes glass cutting,spliced mirror cutting, irregular glass cutting, automatic labeling.

3.Air Float glass breaking.

4.Free walking.

5.Remote control.

6.Automatically label the glass(if you need add this function).

7.Spelling software(if you need add this function).

8.Automatic conveying function after glass cutting(if you need add this function).

9.If you want to increase production, you can add a glass cutting table

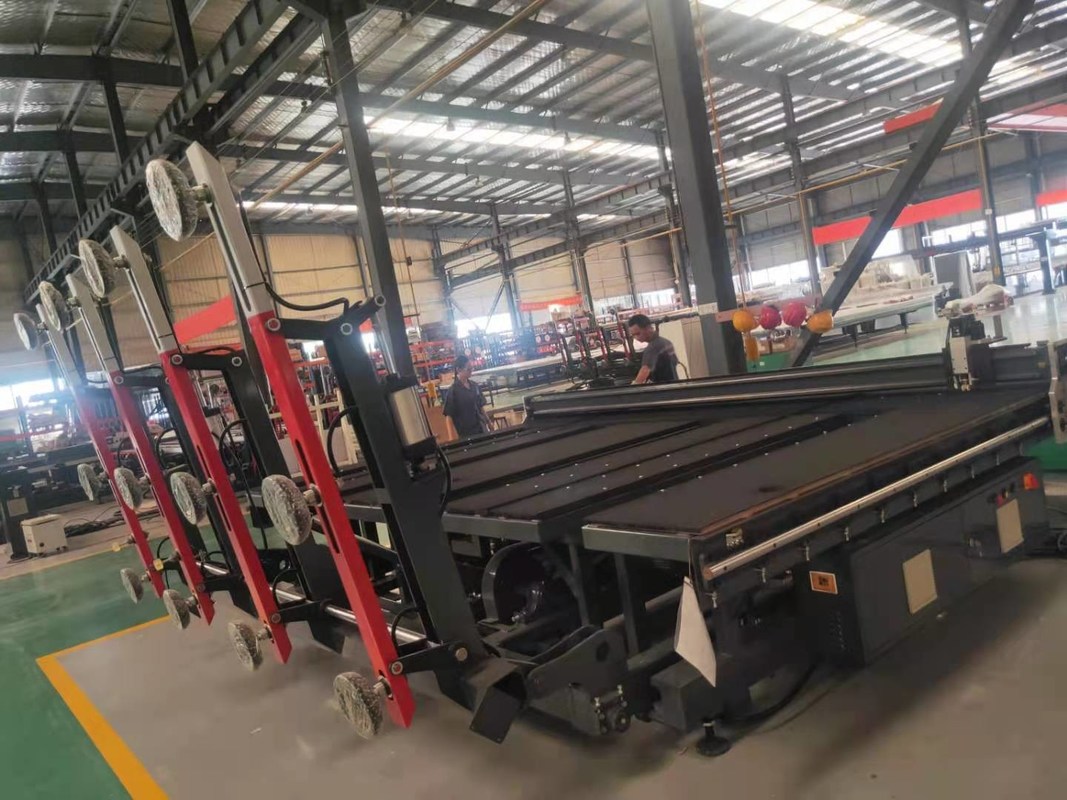

20S Automatic Glass Cutting Table Glass Cutting Machinery For Insualting Glass Sharping 0



Machine function introduction



  Function Functional description

1.Automatic loading glass



Smart suction

After one-touch start of the glass, the machine automatically raises the boom, automatically walks and rotates to find the position and angle of the glass, and is equipped with a suction monitoring system to automatically lift the glass to the cutting table after the glass is sucked, complete the film, and the machine automatically Perform the work of positioning scan cutting.

2.Automatically optimize typesetting glass



Just need enter the original size, the size of the glass to be cut, and the cut shape.Automatic glass layout and automatic optimization greatly saves the cost of using original glass
3.Automatic cutting glass

The cutter head is made of German Boler head and can be rotated freely in 360 degrees to cut any shape.

Computer control, automatic cutting according to optimized layout

4.Air floating breaking glass The machine has an air floating system, and more than one hundred air holes are evenly arranged on the cutting table to ensure the stability of the airflow. It is very easy to push and pull the glass, and breaking glass is easier.

5.Fault alarm detection system



If the machine is faulty, the machine will automatically detect the cause and alarm, display the cause of the fault in the display, and provide corresponding solutions.The problem is solved more conveniently and timely, without delaying production.

(Multi-language optional)

Can choose to add



6.Glass labeling function

Automatic reading:

Automatically read programs without manual operation

Automatic printing:

automatically print out the glass size, customer information, order number and other information on the label

Automatic paste:

label paper is automatically attached to the corresponding position of the glass.no leakage, no mess, customer information at a glance.

Can choose to add



7.Automatic conveying belt

Increase the output,you can choose to add the conveyor belt, and automatically transfer it to the glass breaking table after cutting.

Save time, effort, and labor

Can choose to add



8.Glass breaking table It can be equipped with the glass breaking table, which can be used in conjunction with the cutting machine. Cutting while performing breaking glass,Greatly increased production





Description



1.Import motor /gear /cutter wheel to ensure the stable performance of the machine, high precision, and long service life. and the knife is equipped with a protective device to prevent the collision.

2.Flotation device:the cutting table with more than 100 stomata. With internal air pump and air intake filter device to ensure stable and effective cutting, reduce the failure rate

3.Waterproof table using patented technology: there will be no bubbles, deformation and other issues

4.Glass sucker:It use the Gthe high-strength silica gel,the temperature -30 degrees - 200 degrees, it is durable, tear-resistant,not easy to aging.

5.Intelligent software: automatic scanning ,automatic typesetting,automatic optimization, it can increase the spliced mirror software

6.Automatic oil filling function and automatic constant pressure adjustment function

7.Added automatic machine detection and alarm device so that you can easily see where the machine has failed.This is more convenient for foreign customers to contact manufacturers to solve problems

8.Increased the machine operation stability device to avoid the shaking caused by the machine operation and improve the cutting accuracy of the machine.

9. The speed is greatly improved. It can reach 210 meters per minute .

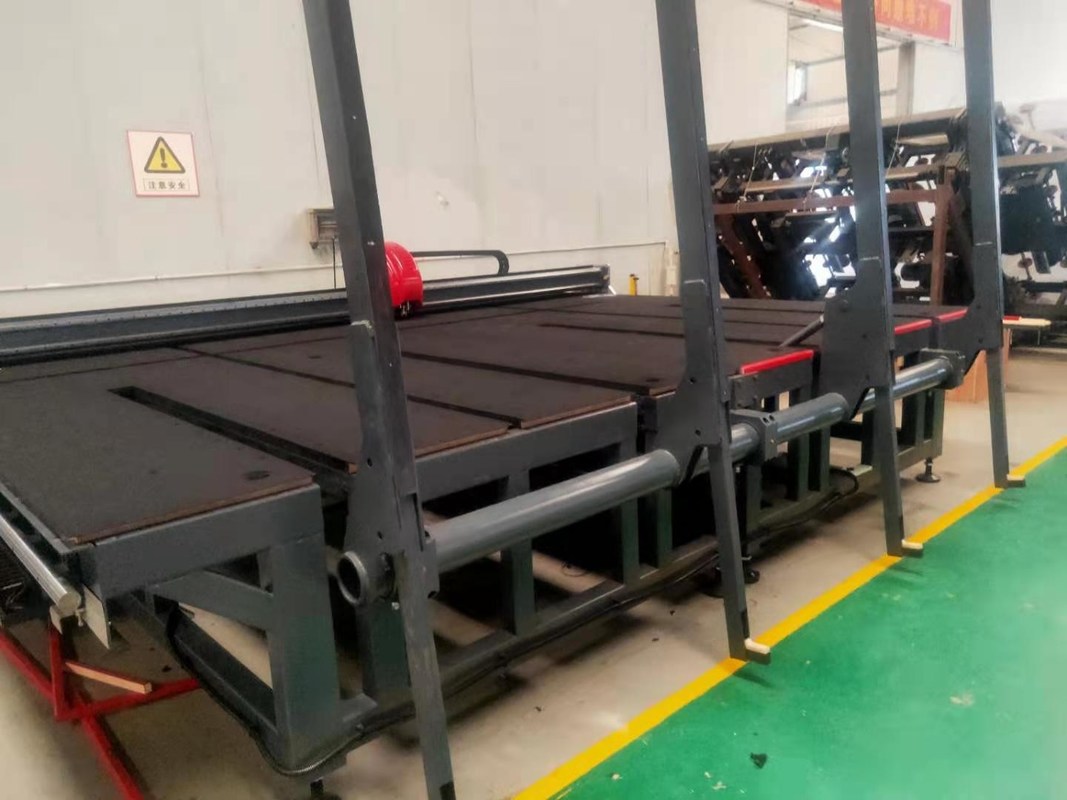

20S Automatic Glass Cutting Table Glass Cutting Machinery For Insualting Glass Sharping 1



Parameter



Dimension:3.1X4.5X1.7M

Weight: 2800KG

Max processing size: 3.66X2.44M

Glass loading time: 20 S

Glass loading arms: 3

Glass sucker : 12

Glass loading depth:0-700mm

Glass processing thickness:3-19mm

Glass cutting speed:0-210m/min

Installed power: 10kw

Running power:2KW

Voltage:380V 50HZ/220V 50HZ



20S Automatic Glass Cutting Table Glass Cutting Machinery For Insualting Glass Sharping 2
