Product Details:
|
| After-sales Service Provided: | Online Support | Condition: | New |
|---|---|---|---|
| Voltage: | 220V/380V/415V | Weight: | According To The Size |
| Dimension(l*w*h): | According To The Size | Power(w): | 3kw |
| Glass Thickness: | 2-25mm | Warranty: | One Year |
| Application: | Building Glass | Usage: | Glass Cutting |
| Product Name: | CNC Glass Cutting Machine | Name: | Mini Cnc Glass Cutting Machine |
| Control System: | CNC Control | Color: | Customized |
| Cutting Accuracy: | ±0.5mm | Max. Speed: | 160m/Min |
| High Light: | 180m/Min CNC Glass Cutting Machine,4200×2800mm CNC Glass Cutting Machine,4200×2800mm cnc glass cutting table |
||
Automatic Glass Cutting table Glass Cutting Machinery
for Hollow glass Insualting Glass Sharping on Sale

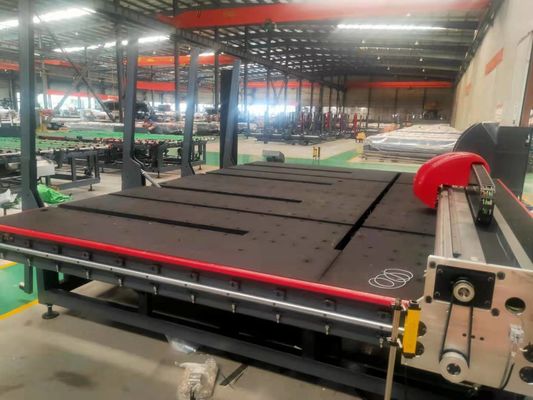

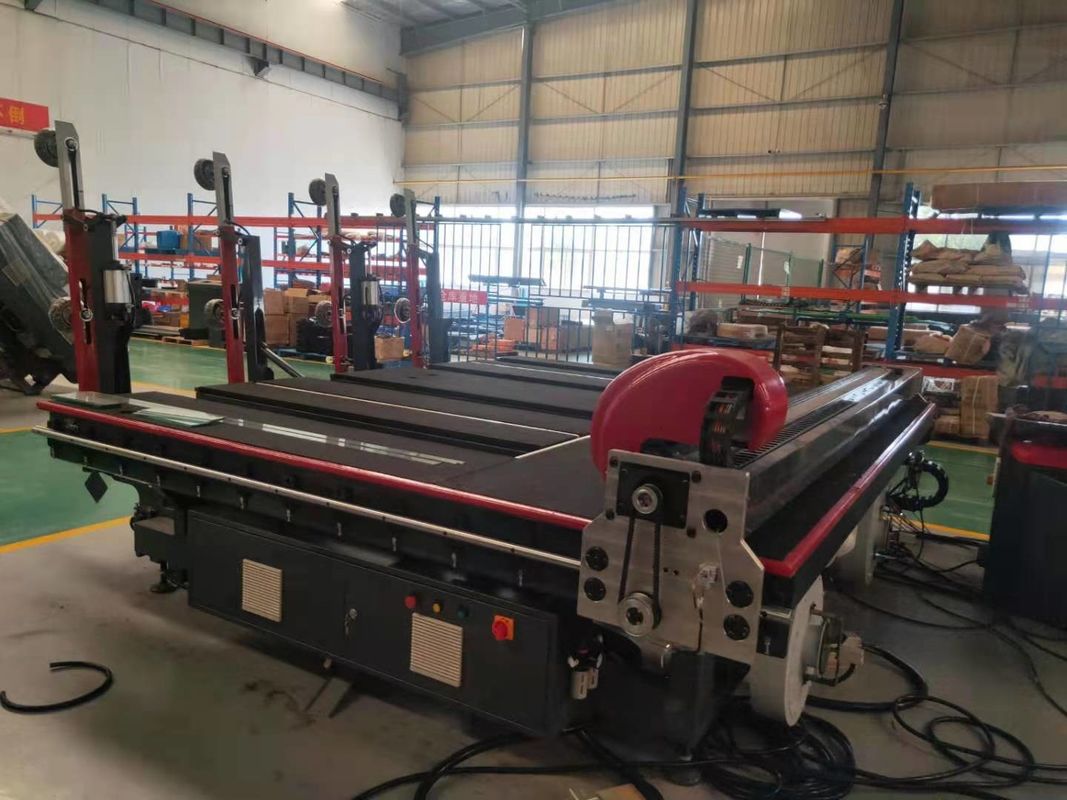

CNC automatic glass cutting line is composed of auto glass loading machine, CNC glass cutting machine and pneumatical glass separating table. The three machines are controlled by one central controller, and compose an automatic glass cutting line in high efficiency and precision.
| Parameters of Jinan LIJIANG Glass CNC Automatic Glass Cutting Line | ||
| Power supply | 380V 50Hz 3P (or customized) | |
| Total power | 16KW | |
| Process glass scale | Max glass size | 4200×2800mm |
| Glass thickness | 3-19mm | |
| Cutting precision | ≤±0.2mm/m | |
| Cutting speed | 180m/min | |
| Dimension | L×W×H (mm) |
14000×3700x900 |
1. Equipment name: automatic glass loading and cutting machine
2. Equipment composition: single-turn single-station automatic glass loading table
automatic glass cutting machine
3. Equipment performance characteristics:
The equipment integrates film loading, air-floating film breaking, linear cutting and special-shaped cutting. It has a small footprint, simple and safe operation, and labor saving. It can walk freely in the workshop through the remote control. Professional mechanical structure supporting Baolun cutting and system optimization software, using Japanese Yaskawa/Inovance servo motor, dual motor drive, greatly improving the stability of the cutting machine and the optimization rate of glass cutting quality. Realize glass automatic loading, automatic cutting, automatic positioning, automatic optimization and breaking operations. The product has high speed, high precision, small investment and quick results. It is the choice for small and medium glass enterprises.
Application:
The architectural glass, automotive glass, furniture glass, craft glass, coated glass, decorative glass, cabinet glass, bathroom
glass, solar glass and other glass cutting operations.
Advantages:
1. Adopt Import Brand Galil and Conctrolling System (optional)
2. CNC automatic glass cutting line adopts independent air source
3. Use Italy OPTIMA typesetting optimazation software
4. Adopt Japan servo motor and Germany gear & rack, ensure stable operation, high precision and long service life
5. Use imported high hardness cutting wheel as machine cutting knife
6. Available for cutting of common glass and Low-E glass
