Place of Origin:
China
Brand Name:
Jinan Lijiang Glass Machinery
Certification:
CE & ISO9000
Model Number:
Lijiang Glass Cutting Machine

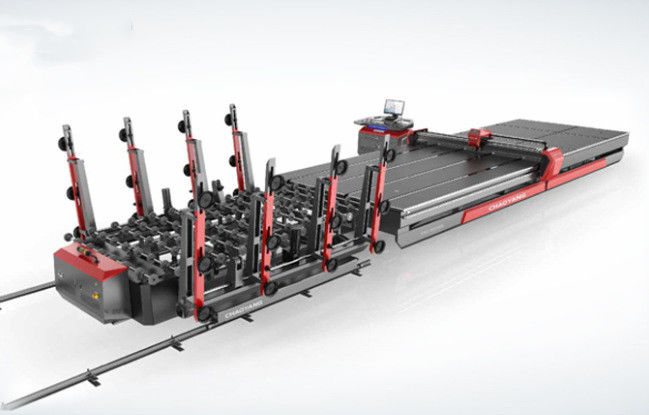

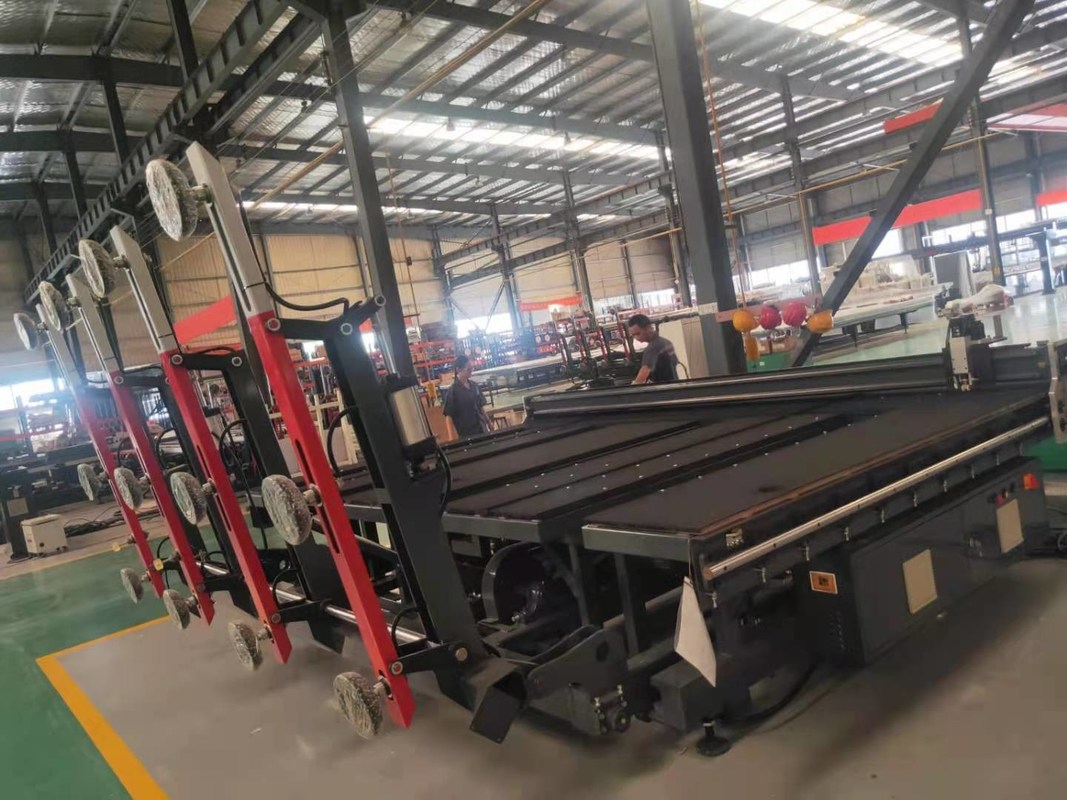

CNC Automatic Glass Cutting Machine Glass Cutting Production Line
for Floating Glass Processing
Brief Introduction:
1. Equipped with 6 sets of imported cutter wheels and a set of setting tool.
2. A set of stability voltage power supply.
3. A set of best optimized software.
4. A set of computer operating system (including a set of computer and cutting software)
Mechanical:
1. The material of the tabletop: Metal tabletop(deformation will not happen)(The smoothness≤±0.2mm/m)
2. Rack/Guides: Imported from Japan and switzerland.
3. Transmission belt/Transmission belt wheels: Barbieri in Italy.
4. Cutter wheels/cutter holder: Samsung in Japan.
5. The tabletop: Industrial blankets imported from Korea (color in black).
6. Turret: It use the pneumatic pressure and the spring pressure at the same time to make the cutting best.
Software:
1.Special cutting soft(It can be used under Windows System).
2.There is a graphic library with hundreds of shapes which is convenient for drawing and operating.
3.There is also a set of Auto CAD drawing software.
4.The optimized software can be selected(Enter the size of the sheet glass directly, then it can cut the glass automatically and it’s not necessary to cut by using CAD drawing).
5.There is a function of auto correcting which can make the cutting accuracy high.
6.There is also a selecting function of cutting path.
7.There is also a function of origin point correcting.
8.Operating Entering: Key board and mouse.
| Item. | |
| Input Voltage | 380V/50Hz~60Hz/3 Phases |
| Power | 14KW |
| Air pressure | 0.4-0.8 Mpa |
| Cutting speed | 0-210m/min |
| Sucker quantity | 9 pieces(3 sucker for every arm) |
| Loading time | 20-50s |
| Vaccum pressure | -70~-90kpa(can be adjusted according to glass thickness) |
| Processing thickness | 2.5-19mm |
| Automatic label(yes/no) | yes |
| Loading moving control | Remote control |
| Sucking loading weight | 500kgs |
| Cutting size | 4200x2600mm |
| Overall size | 4600*3250*1500mm |
| Breaking table size | 4300*2700*900mm |
| Working table height | 900mm |
| Weight | 4900kg |
