CNC Glass Cutting Machine Automatic Glass Cutting Machine Production Line
for Window Manufacturing on sale
Benefits & Advantages
* Automatically load glass on table
* CNC fast cutting
* Air float in the machine
* With glass breaking table
* For various shape of glass cutting
* Machine size can be customized

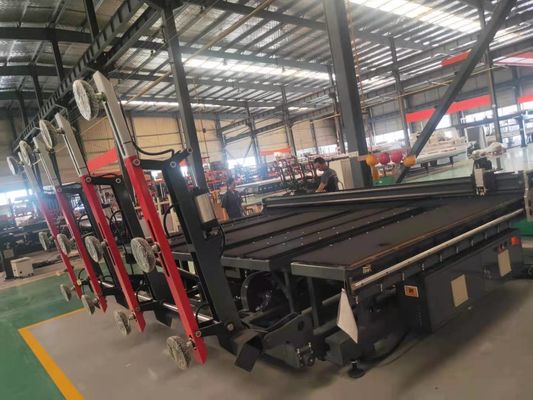

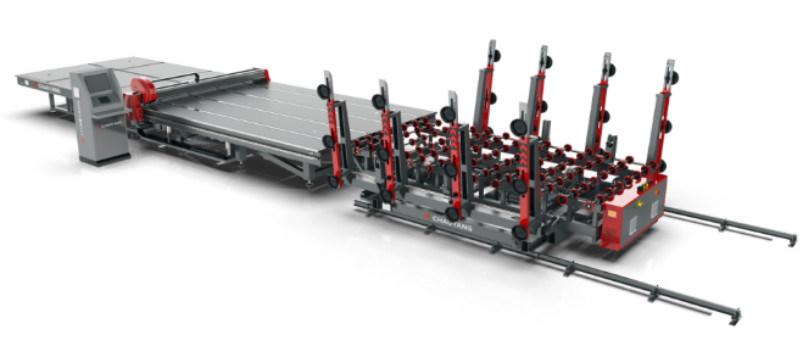

Full automatic glass cutting machine line
With 4 loading arms to load glass automatically (single side or double side)
Each arms has 3pcs suckers
PC computer control, Microsoft windows interface
Standard Chinese and English interface
Controller:America GALI
Rack/Gear:Japan KHK
Cutter wheel / wheel clamp: Belgium
Low voltage electric parts: Schneider (France)
Optimize software
Air float table for easy move
Machine specification:
Glass loading:
Machine size: 4400mm*3120mm
max loading size:4200*3000mm
Loading glass thickness:3~19mm
Fastest cycle loading time:40~50S
Max loading depth:700mm
Max loading weight:900KG
Single side(double side) loading bars:4 arms
Suckers on each arms: 3 pcs
Installation power:8KW
Air compressor:0.3Mpa
Vacuum pressure:-70~90Kpa(adjust by glass thickness)
Glass cutting:
Machine size: 5200mm*3540mm
Max cutting glass layout: 4200*2800mm
Working table height: 900±50mm
Glass thickness: 3~19mm
Linear parallel: ≤±0.20mm/m
Diagonal accuracy: ≤±0.25mm/m(The above accuracy is base on glass before breaking)
Cutting bridge speed: 0~280m/min(can be adjusted)
Cutting bridge acceleration: ≥3.0m/s2
Cutting head speed: ≥150m/min
Cutting head acceleration: ≥6.0m/s2
Cutting head positioning accuracy error: ≤±0.15mm
Machine total power: 8KW
Air compressor: 0.6MPA
Glass breaking:
Machine size: 4200mm*2800mm
Breaking bars: 1+2
Air float function, MDF board
Power: 6.6kw
Multi point push rod contrl function, convenient and relaiable
| Item. |
| Input Voltage |
380V/50Hz~60Hz/3 Phases |
| Power |
14KW |
| Air pressure |
0.4-0.8 Mpa |
| Cutting speed |
0-210m/min |
| Sucker quantity |
9 pieces(3 sucker for every arm) |
| Loading time |
20-50s |
| Vaccum pressure |
-70~-90kpa(can be adjusted according to glass thickness) |
| Processing thickness |
2.5-19mm |
| Automatic label(yes/no) |
yes |
| Loading moving control |
Remote control |
| Sucking loading weight |
500kgs |
| Cutting size |
4200x2600mm |
| Overall size |
4600*3250*1500mm |
| Breaking table size |
4300*2700*900mm |
| Working table height |
900mm |
| Weight |
4900kg |
Warranty and service:
1 year warranty for the machine
Life time service available for parts and malfunctions
24 hours on line service
Working video and installation video avaible
Provide English operation manual
Installation and trainning service
Payment term and shipping:
By T/T, 30% deposit, balance paid before delivery
Machine delivery after 30 days production.
Machine loading in container or sending by LCL cargo is permit
Shipping agent will be offer if you required
