Touch Screen Insulating Glass 98% Argon gas filling machine

Manual Insulating Glass Filling Machine With Touch Screen For Displaying

Argon gas filling machine with touch screen

This argon gas filling machine is manual filling machine, but it has the touch screen to display how much the argon gas value. And this filling machine can set how much gas value you want to fill into insulating glass.

Types of the argon gas filling machine

General manual argon gas filling machine & new fast argon gas filling machine

Insulating Glass Manual Argon Gas Filling Machine For Filling Argon Gas

The type of LJCJ02 smart insulating glass gas filling machine is a special equipment for filling insulating glass. The device by microcomputer and imported from the sensor to form a closed loop control system, high degree of intelligent equipment, precise control, pneumatic concentration adjustable, charging efficiency is high, the operation is simple. It is essential to further improve the performance of the hollow glass equipment.

1. Specifications and technical date :

2. The conditions of use

1.The argon gas source: pressure 0.2Mpa.

The air compressor machine source: pressure 0.4Mpa.

The use of the environment: 0~40 ℃, no condensation, operation panel and control box can not have water intrusion.

3. The main structure of production

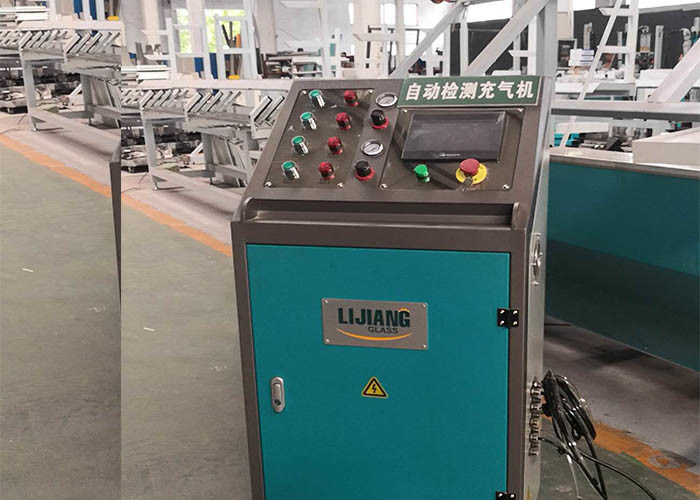

The gas filling machine comprises tree parts. There are filling gas, controlling and detection. The filling gas part mainly comprises outlet circuit, return circuit and control valve. The controller part mainly comprises touch screen, start group selection switch, controlling button, controller and buzzer alarm. Detection part mainly comprises sensor.

4. Main feature

• It is used for filling Argon into insulating glass

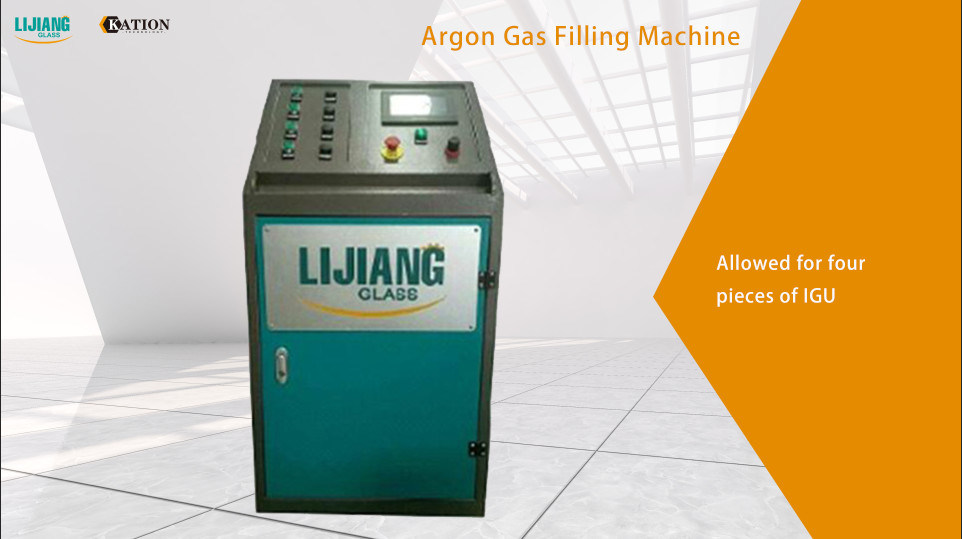

• High effectively, allowed for four pieces of IGU

• When the gas is full, it will alarm and stop automatically

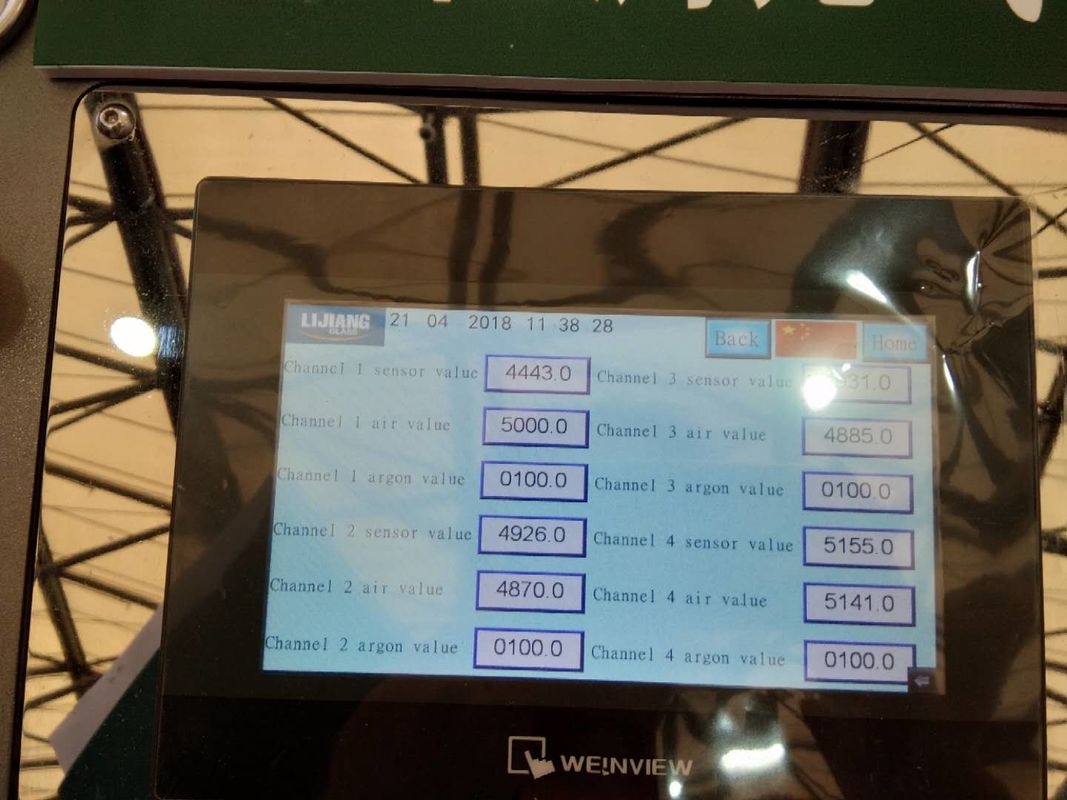

• Can set and display the data of gas value

4. Installation and adjustment

4.1 The equipment placed smoothly, pay attention to prevent the fall and damage controller and control system.

4.2 Connect the power socket, the total air interface, the outlet pipe and the return pipe.

5.Before inflation to adjust the technical parameters

5.1 The adjustment of the argon gas flow through the control valve on the panel, adjust the flow of argon, argon is the smaller the glass flow should be smaller, so that it can improve the accuracy of the control system, but also can prevent the broken glass; at the beginning of the best will flow down, when the operator can operate after a gradual increase in the gas flow increases the inflation rate, improve work efficiency, but the initial use of gas flow must be adjusted to a minimum, and then gradually increase, but not the inflation adjustment speed is too fast, otherwise it will damage the separation layer hollow glass cavity with air and argon, reducing the accuracy of gas concentration and gas concentration detection.

5.2 Inflation pressure setting:In order to avoid the double glass damage because of the high inflation pressure . we need make the working pressure is 0.2mpa, adjust the argon gas reducing valve in the control panel into 0.1-0.2mpa, Inside the machines box, make the air resource of air compressed machines into 0.4mpa.

According to the size of the insulating glass and the inflation rate to set the upper and lower limits of pressure, when the double glass bigger than 1.5 m X 1.5 m, the air resource of air compressor properly adjusted bigger value.

5. Installation and adjustment

5.1 The equipment placed smoothly, pay attention to prevent the fall and damage controller and control system.

5.2 Connect the power socket, the total air interface, the outlet pipe and the return pipe.

6.Before inflation to adjust the technical parameters

6.1 The adjustment of the argon gas flow through the control valve on the panel, adjust the flow of argon, argon is the smaller the glass flow should be smaller, so that it can improve the accuracy of the control system, but also can prevent the broken glass; at the beginning of the best will flow down, when the operator can operate after a gradual increase in the gas flow increases the inflation rate, improve work efficiency, but the initial use of gas flow must be adjusted to a minimum, and then gradually increase, but not the inflation adjustment speed is too fast, otherwise it will damage the separation layer hollow glass cavity with air and argon, reducing the accuracy of gas concentration and gas concentration detection.

6.2 Inflation pressure setting:In order to avoid the double glass damage because of the high inflation pressure . we need make the working pressure is 0.2mpa, adjust the argon gas reducing valve in the control panel into 0.1-0.2mpa, Inside the machines box, make the air resource of air compressed machines into 0.4mpa.

According to the size of the insulating glass and the inflation rate to set the upper and lower limits of pressure, when the double glass bigger than 1.5 m X 1.5 m, the air resource of air compressor properly adjusted bigger value.
