Multi-functional Glass Cutting Table / Glass Cutter Machine on Sale

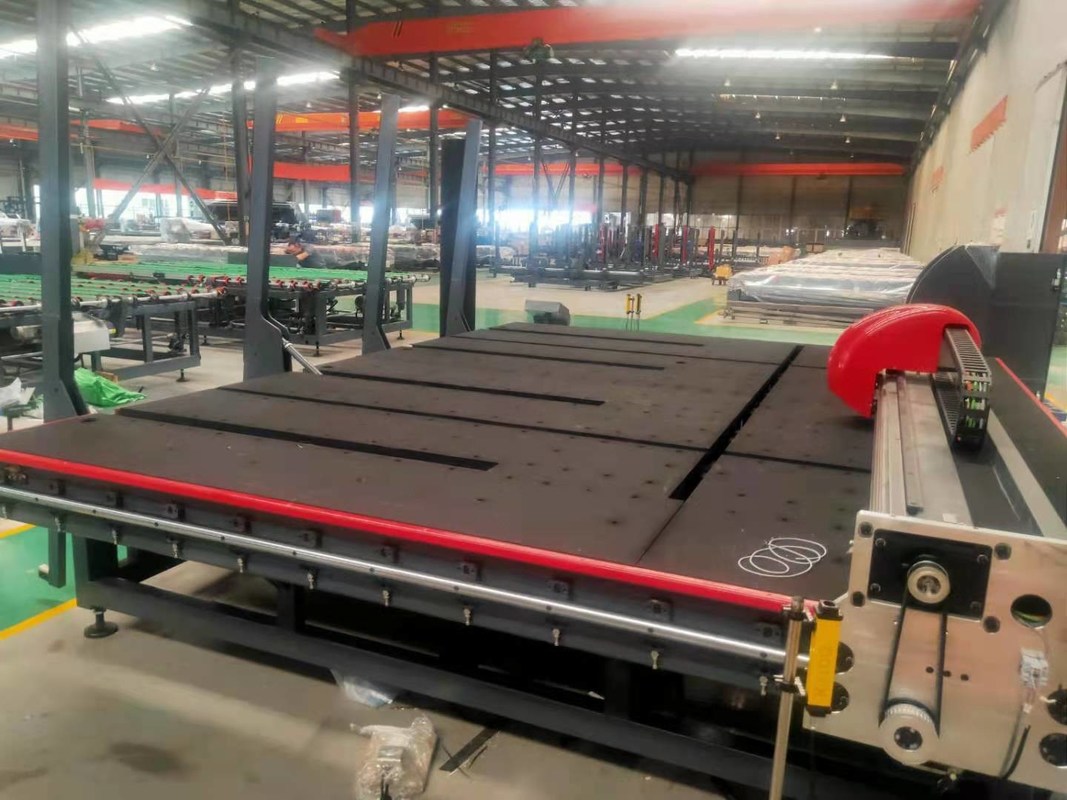

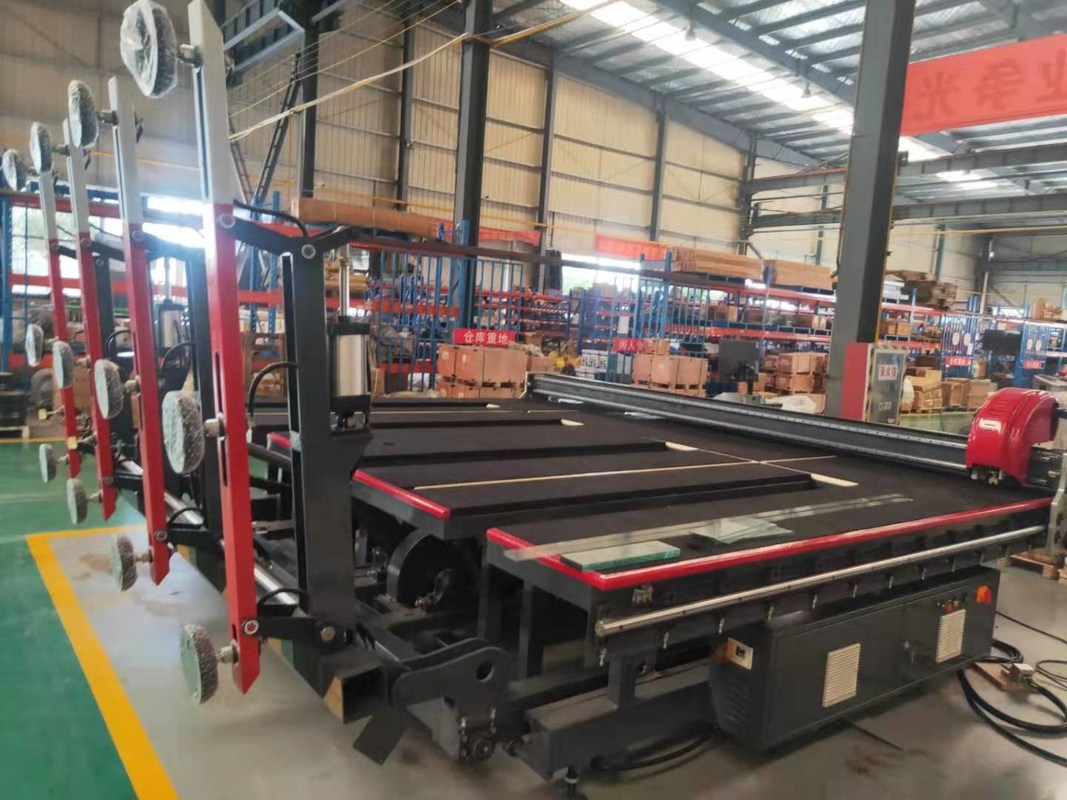

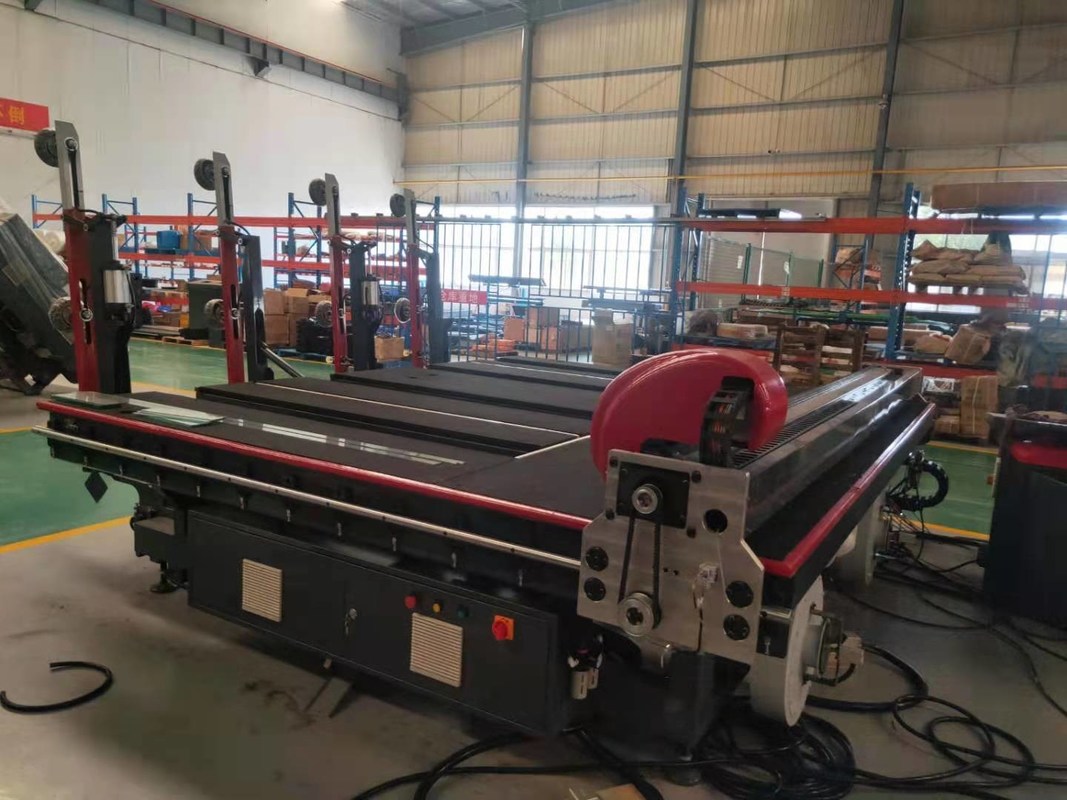

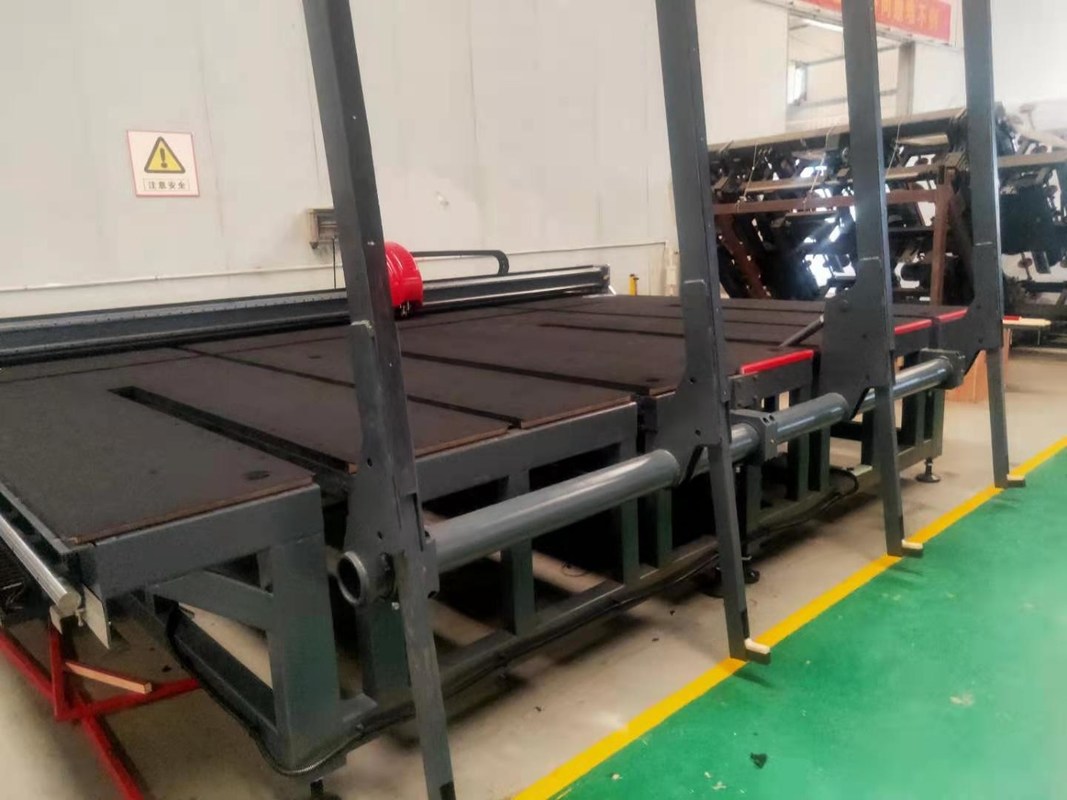

Multi-functional glass cutting machine is based on many years of our company's working experience accumulation and technological research and development, in the light of glass deep-processing of safety, efficiency, personnel inputs, glass loading, glass storage and difficulty of moving, we have successfully developed a multi-functional glass cutting machine.

1. It makes glass move easily and solves the difficulties of glass loading and unloading.

2. Using the wireless remote control system, it works more flexibly and adapts to a variety of working conditions.

3. This machine improves working efficiency, saves human resources, and makes glass processing more secure.
4. The main electrical use of imported parts, the equipment failure rate is low.
5. Reducing the rate of glass breakage.

Multi-functional glass cutting machine is based on many years of our company's working experience accumulation and technological research and development, in the light of glass deep-processing of safety, efficiency, personnel inputs, glass loading, glass storage and difficulty of moving, we have successfully developed a multi-functional glass cutting machine.

Air-floated Breaking Table for Glass Cutting

It is mainly composed of four parts: frame mechanism, splitting mechanism, pneumatic control system and electrical control system. * Sheet size: Min size: 1500 *1200mm (Single Side loading) * Max loading size: 2600 x 2000 mm * Glass sheet thickness: 3 ~ 19mm * Working absorption depth: 700 mm * X-axis walking speed: 5-25m/min (adjustable) * Y-axis walking speed: 8-12 m/min (adjustable) * Conveying speed: 5-25m/min (adjustable) * Number of flip arms: 8 arms (double side loading) * Number of single arm suckers: three * Loading type: Double side loading * Working cycle: 45S (15S for each additional position) * Installation power supply: AC380V/50HZ (special circumstances can be adjusted according to customer requirements) * Installation total power: 5-10 kw * Compressed air: 0.6-0.8 Mpa; * Vacuum: -50-99 Kpa (adjustable according to glass thickness) * Working table height: 900 + 20mm * Machine size: 4650 x 2980 x 900mm

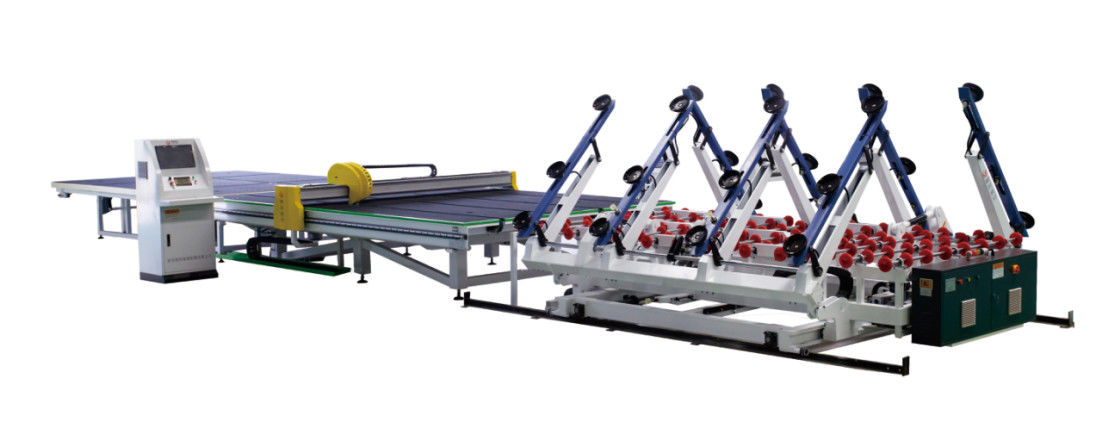

Fully Automatic CNC Glass Cutting Machine

Its working principle is to convey the cut glass by conveying belt to worktable, automatically input the position of glass through photoelectric scanning system, and then the cutting head with a diamond wheel on the cutter holder moves along X and Y directions respectively by program control, cut the sheet. The CNC motion controller is used in the control part of the machine, and an advanced AC servo motor is used in the drive part. * Max size: 2600*2000mm * Thickness:3～19mm * Cutting accuracy:±15 * Cutting accuracy of special-shaped glass:±20 * Cutting speed:0-200m/min * Conveying speed:0-25m/min * Machine size:9600X2800X900±20mm * Working table height:900mm±20mm * Weight:2600kg * Total power of equipment:5-8kw

Fully Automatic Glass Loading Table

It is mainly used for automatic glass loading. After putting the glass in the designated position and giving the signal of loading, the big arm turns up about 95 degrees through the overturning mechanism, and the whole machine starts to move forward. When the induction device on the small arm touches the glass, the whole machine stops walking and the glass is sucked by the suction cup through the vacuum system on the glass, small arm lifting motor lifts the glass upward and backward about 80 mm. The walking motor retreats and the big arm falls down. When the big arm is in place, the suction cup under the glass begins to blow. When the small arm falls down, the glass falls on the conveyor wheel. Finally, the glass is conveyed to the cutting table by the conveyor wheel. * Breaking bar: 1+1 type * Table Size: 9600x2800x900mm * Glass thickness:3-19mm * Power: 4kw * Table height: 900 + 20mm
