Product Details:
|
| Machine Type: | Glass Cutting Machine | Voltage: | 380W / 50HZ |
|---|---|---|---|
| Max Glass Size: | 2440*3660 Mm | Weight: | 1500 Kg |
| Power: | 10 Kw | Color: | Customer Choose |
| After-sales Service: | Online Support | Warranty: | 1 Year |
| High Light: | 10Kw CNC Glass Cutting Machine,2440*3660 mm CNC Glass Cutting Machine,700mm automatic glass cutting table |
||
Function
It can be applied to the following areas: Architectural glass, car glass, furniture glass, craft glass, decorative glass, cupboard glass, hollow glass
, spliced mirror.
1.Automatic glass loading.
2.Automatic glass cutting: various shapes glass cutting, spliced mirror cutting, irregular glass cutting, automatic labeling.
3.Air Float glass breaking.
4.Free walking.
5.Remote control.
6.Automatically label the glass(if you need to add this function).
7.Spelling software(if you need to add this function).
8.Automatic conveying function after glass cutting(if you need to add this function).
9.If you want to increase production, you can add a glass cutting table
| Function | Functional description | |
| √ |

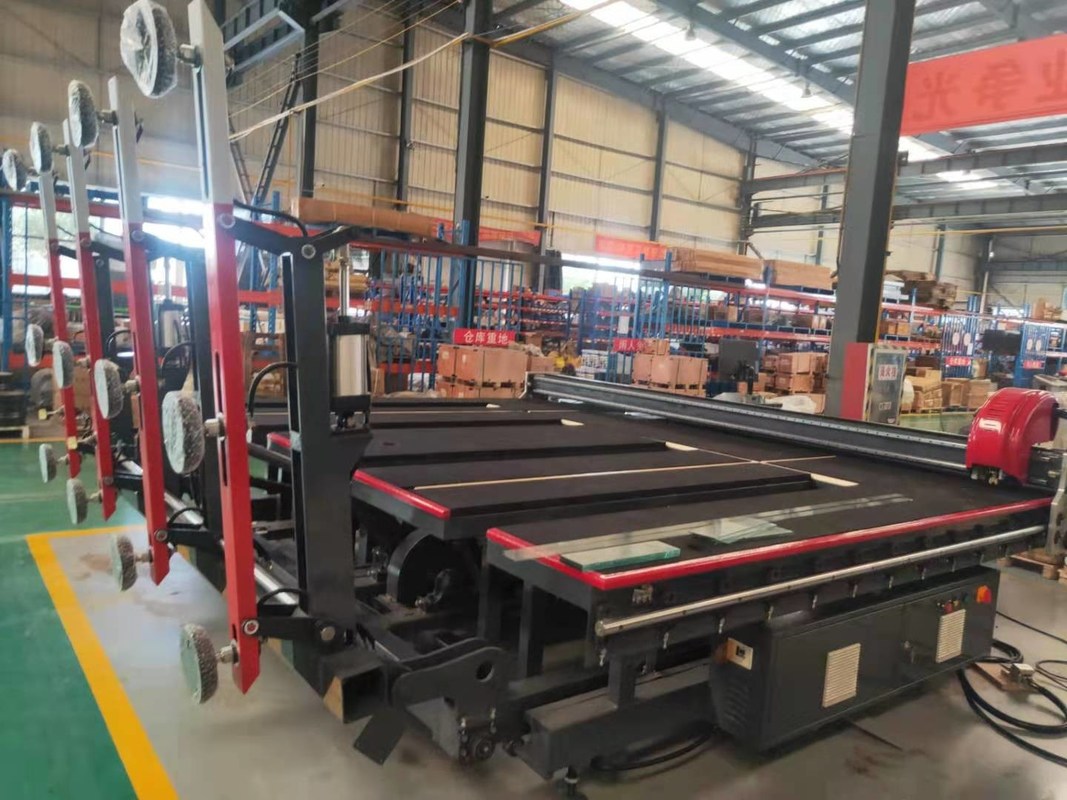

1.Automatic loading glass
|
Smart suction After the one-touch start of the glass, the machine automatically raises the boom, automatically walks and rotates to find the position and angle of the glass, and is equipped with a suction monitoring system to automatically lift the glass to the cutting table after the glass is sucked, complete the film, and the machine automatically Perform the work of positioning scan cutting. |
| √ |
2.Automatically optimize typesetting glass
|
Just need to enter the original size, the size of the glass to be cut, and the cut shape. Automatic glass layout and automatic optimization greatly saves the cost of using original glass |
| √ | 3.Automatic cutting glass |
The cutter head is made of a German Boler head and can be rotated freely in 360 degrees to cut any shape. Computer control, automatic cutting according to optimized layout |
| √ | 4.Air floating breaking glass | The machine has an air floating system, and more than one hundred air holes are evenly arranged on the cutting table to ensure the stability of the airflow. It is very easy to push and pull the glass, and breaking glass is easier. |
| √ |
5.Fault alarm detection system
|
If the machine is faulty, the machine will automatically detect the cause and alarm, display the cause of the fault in the display, and provide corresponding solutions. The problem is solved more conveniently and timely, without delaying production. (Multi-language optional) |
|
Can choose to add
|
6.Glass labeling function |
Automatic reading: Automatically read programs without manual operation. Automatic printing: Automatically print out the glass size, customer information, order number, and other information on the label. Automatic paste: label paper is automatically attached to the corresponding position of the glass.no leakage, no mess, customer information at a glance. |
|
Can choose to add
|
7.Automatic conveying belt |
To increase the output, you could choose to add the conveyor belt, and automatically transfer it to the glass breaking table after cutting. Save time, effort, and labor. |
|
Can choose to add
|
8.Glass breaking table | It can be equipped with a glass breaking table, which can be used in conjunction with the cutting machine. Cutting while performing breaking glass, Greatly increased production. |
Description
1.Import motor /gear /cutter wheel to ensure the stable performance of the machine, high precision, and long service life. and the knife is equipped with a protective device to prevent collision.
2.Flotation device: the cutting table with more than 100 stomata. With internal air pump and air intake filter device to ensure stable and effective cutting, reduce the failure rate
3.Waterproof table using patented technology: there will be no bubbles, deformation, and other issues
4.Glass sucker: It uses high-strength silica gel, the temperature -30 degrees - 200 degrees, it is durable, tear-resistant, not easy to aging.
5.Intelligent software: automatic scanning, automatic typesetting, automatic optimization, it can increase the spliced mirror software
6.Automatic oil filling function and automatic constant pressure adjustment function
7.Added automatic machine detection and alarm device so that you can easily see where the machine has failed. This is more convenient for foreign customers to contact manufacturers to solve problems
8.Increased the machine operation stability device to avoid the shaking caused by the machine operation and improve the cutting accuracy of the machine.
9. The speed is greatly improved. It can reach 210 meters per minute.
Parameter
Dimension:3.1X4.5X1.7M
Weight: 2800KG
Max processing size: 3.66X2.44M
Glass loading time: 20 S
Glass loading arms: 3
Glass sucker: 12
Glass loading depth:0-700mm
Glass processing thickness:3-19mm
Glass cutting speed:0-210m/min
Installed power: 10kw
Running power:2KW
Voltage:380V 50HZ/220V 50HZ
