Automatic Glass 3+1 Type 19mm Air Floated Breaking Table

Automatic Glass 3+1 Type 19mm Air Floated Breaking Table
Automatic Glass 3+1 Type 19mm Air Floated Breaking Table Automatic Glass 3+1 Type 19mm Air Floated Breaking Table Automatic Glass 3+1 Type 19mm Air Floated Breaking Table

Large Image :  Automatic Glass 3+1 Type 19mm Air Floated Breaking Table

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJSCLM
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable,
Packaging Details: wooden case or container
Delivery Time: 60days
Payment Terms: L/C, T/T
Supply Ability: 10set/month

Automatic Glass 3+1 Type 19mm Air Floated Breaking Table

Description
Name: CNC Automatic Glass Cutting Machine Glass Cutting Line Advantage: CNC Control
Function: Loading Breaking And Cutting
High Light:

19mm Air Floated Breaking Table

,

3+1 Air Floated Breaking Table

,

19mm glass cutting table machine

Fully automatic glass cutting Line( Max Glass Cutting size :3000X6000mm)
Automatic Glass 3+1 Type 19mm Air Floated Breaking Table 0

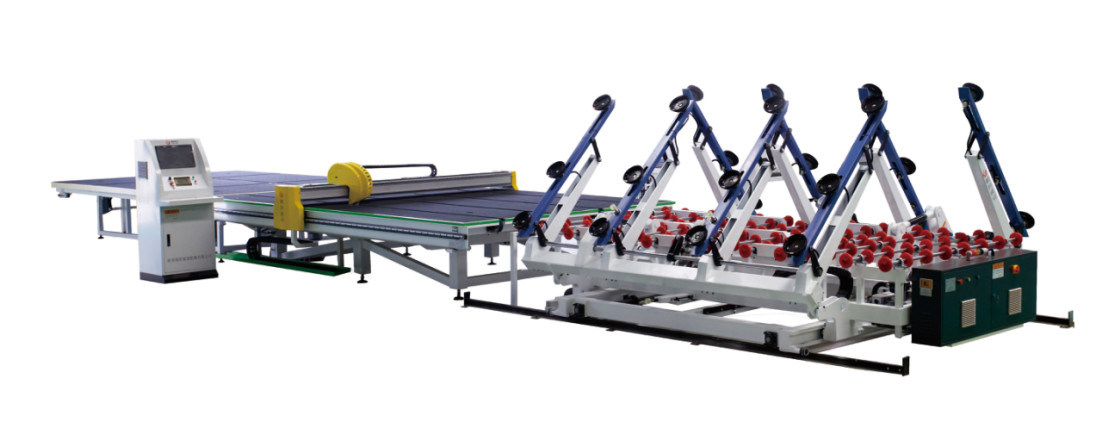

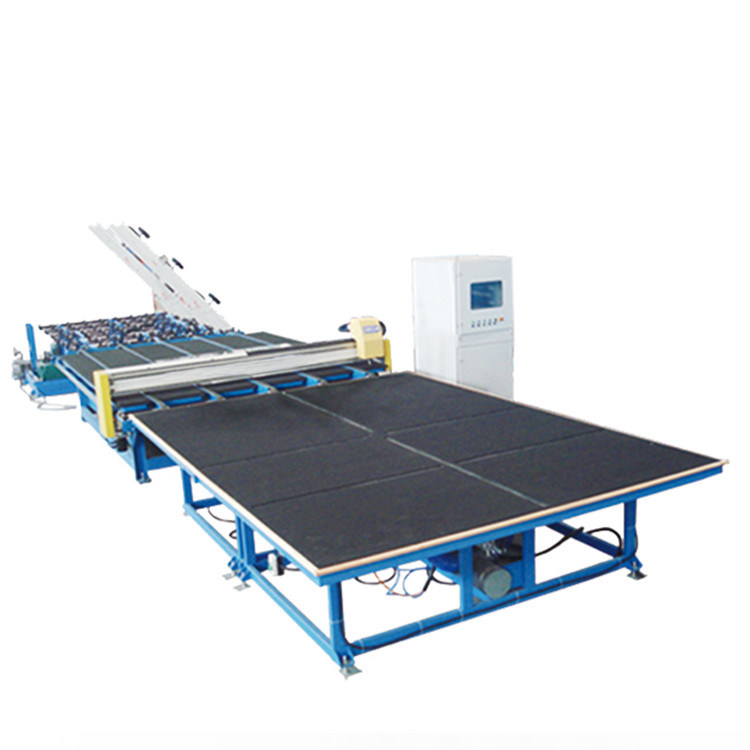

The overall plan of the project: CNC automatic glass cutting line is composed of automatic loading table, automatic cutting table and air-floated breaking table. The automatic glass cutting line is mainly used in the processing of flat glass, which can quickly and accurately load sheets, cut straight-line,special-shaped glass and air-floated mechanical breaking sheets.Work flow is as follows: Loading table uses mechanical turnover, through the vacuum suction cup taking glass sheet from the rack, put down to the loading table. The glass is conveyed to the cutting table through the roller on the loading table and the conveyor belt on the cutting table.The cutter holder on the cutting beam of the cutting machine drives the cutter to move at high speed in X direction and Y direction by servo motor. Using Z-axis motor rotation to control the tangent trajectory of tool. At the same time, the cutter pressure and the depth of the cutter are controlled by analog quantity, and the four axes are operated simultaneously to cut. When the cutting is finished, the glass sheet is sent to the air-floated breaking table for breaking through the air cushion formed by the conveyor belt and the breaking table.

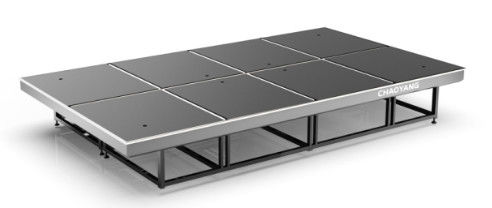

  • LJCY-BP-6133 Air-floated breaking table (3+1 type)
    Automatic Glass 3+1 Type 19mm Air Floated Breaking Table 1

  • Equipment Composition:
  • ,Breaking bar: 3+1 type

    • ,Table Size: 6300×3500mm

    • ,Glass thickness:3-19mm

    • ,Power: 8kw

    • ,Table height: 900 + 20mm

    • ,Working table: Waterproof High Density Plate

    • ,Table: Imported industrial felt (black)

    • ,Breaking bar: solid wood (natural color)



• Note: Depending on the delivery date and technical improvement, the production company reserves the right to replace the purchased parts of the same brand.
technical parameter;

• ,Contactors: Renmin/Zhengtai

• ,Circuit Breaker: Renmin/Zhengtai

• ,Button: Renmin/Zhengtai

• ,Main solenoid valve: Airtac

• ,Other Pneumatic Components: Deke/Shengguan

• ,Fan:Liyuan
Mechanical part;

• It is mainly composed of four parts: frame mechanism, splitting mechanism, pneumatic control system and electrical control system.
Electrical part:
Equipment Composition:





Automatic Glass 3+1 Type 19mm Air Floated Breaking Table 2

Automatic Glass 3+1 Type 19mm Air Floated Breaking Table 3

LJSCLM CNC Glass Cutting Line


Automatic Glass 3+1 Type 19mm Air Floated Breaking Table 4

LJSCLM CNC Intelligent Automatic High Speed Glass Cutting Line is ready for installation

Automatic Glass 3+1 Type 19mm Air Floated Breaking Table 5

Automatic Glass 3+1 Type 19mm Air Floated Breaking Table 6

  •

Op







  • Automatic Glass 3+1 Type 19mm Air Floated Breaking Table 7

Automatic Glass 3+1 Type 19mm Air Floated Breaking Table 8

Automatic Glass 3+1 Type 19mm Air Floated Breaking Table 9Automatic Glass 3+1 Type 19mm Air Floated Breaking Table 8
