Product Details:
|
| Name: | Spacer Cutting Machine | Guideway: | Siemens |
|---|---|---|---|
| PLC: | Siemens | Pneumatic Component: | SMC |
| Switching Power Supply: | MSYSTEM | Frequency Converter: | OMRON |
| CPU: | Japan YASKAWA | Main Electrical Components The Main Electrical Components Are Adopted Siemens, SMC And So On Famous: | Import |
| I/O Model: | MSYSTEM | Servo Motor: | YASKAWA |
| COLOR: | Green | ||
| High Light: | 56mm aluminium laser cutting machine,Warm Edge aluminium cutting machine |
||

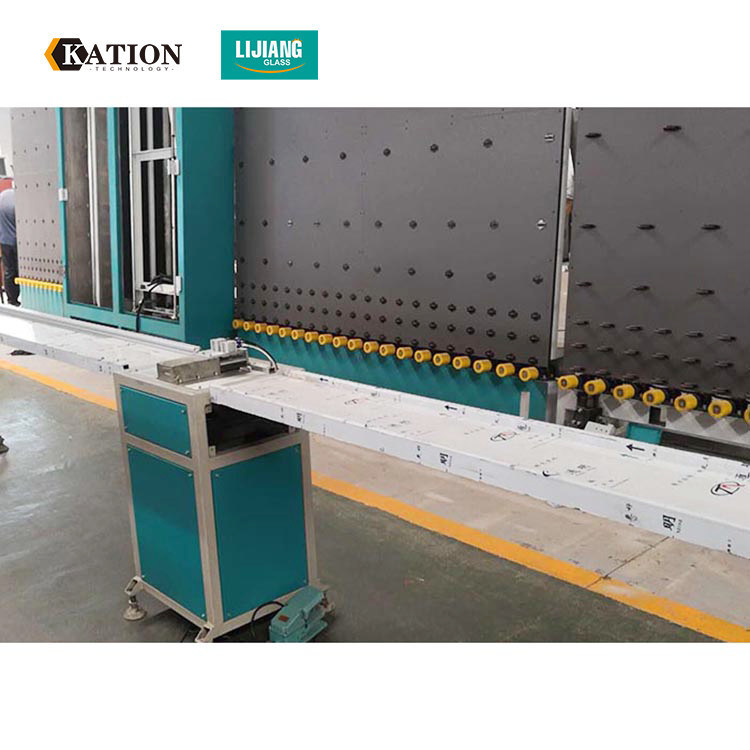

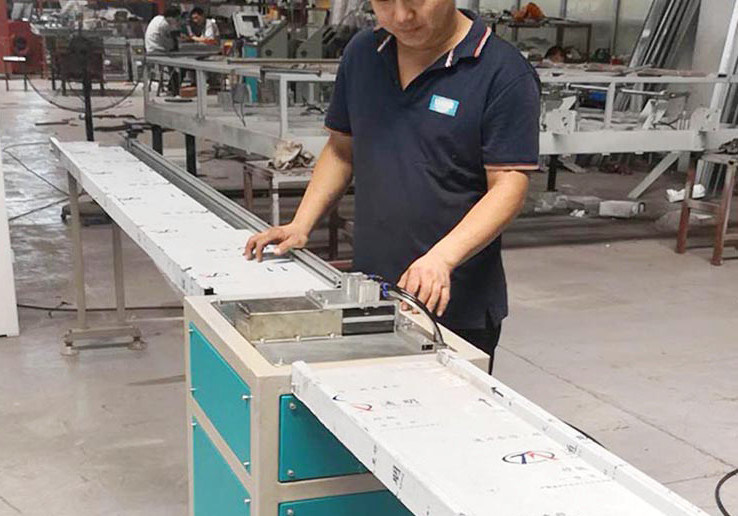

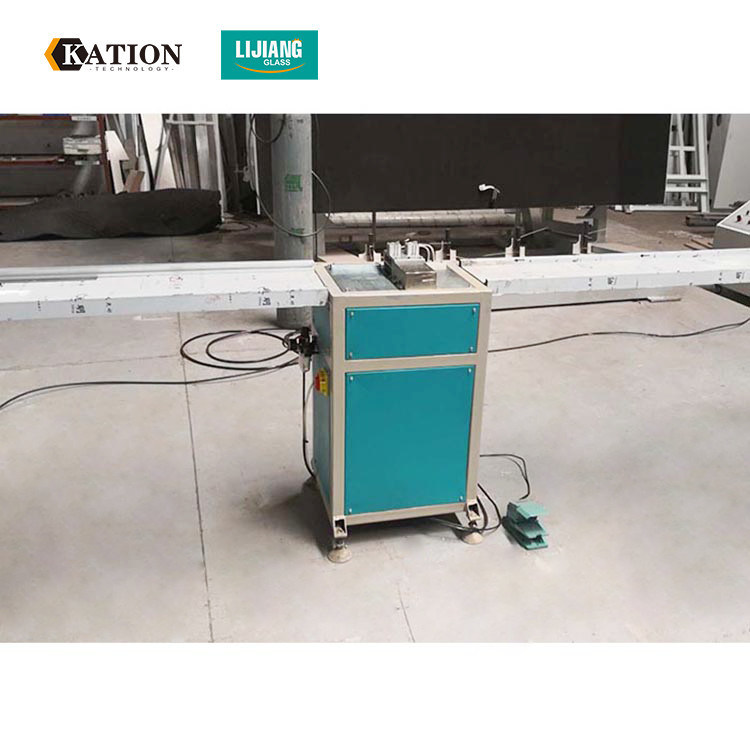

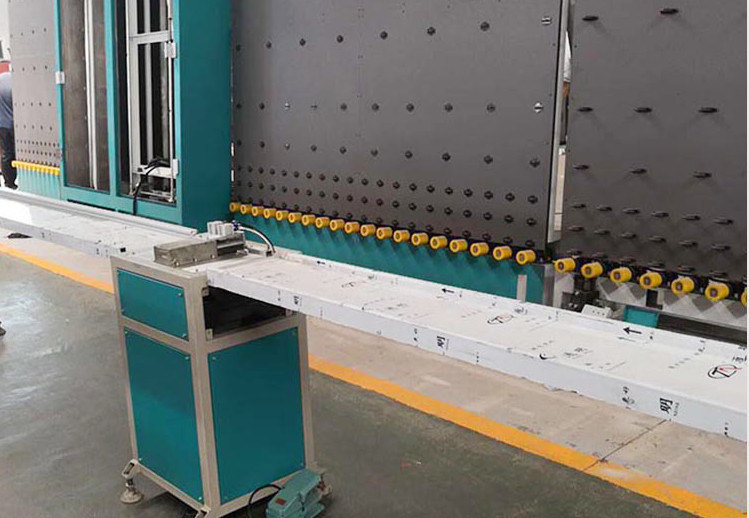

Aluminum strip warm edge cutting frame green simple easy to cut quickly
Jinan lijiang QUTOMATIC equipment co., LTD. Is a set of product development, design, sales, service as one of the enterprises. The company is located in the beautiful spring city - jinan. Due to the proximity of the beijing-shanghai high-speed railway, the transportation is very convenient. The company insists on "high quality products". The company through the establishment of technology research and development center, hired experts to guide, efforts to create first-class products. We also cooperate with domestic well-known enterprises, and actively introduce foreign advanced technology.Aluminum strip cutting machine insulating glass processing equipment butyl rubber coating requirements, insulating glass processing equipment butyl rubber is the first seal of insulating glass, professional aluminum tea cutting machine related to many performance characteristics of Windows and glass. The coating of butyl rubber shall comply with the following requirements: 1 head processing is reasonable, no night, insulating glass processing equipment glass before the glass is cleaned, the spacing frame and the glass is evenly spaced; After glass is laminated, the rubber thickness and width of the insulating glass processing equipment are evenly spread through the roller press under certain pressure, and there is no broken line and no bubble. Insulating glass processing equipment polythioglue coating after the tablet, this step usually adopts a two-component gluing machine or manual, after gluing, pay attention not to lack of glue or more glue phenomenon, insulating glass processing equipment to keep the appearance of the glass clean. At the same time, to ensure that the ratio of desiccant and polythioglue is appropriate, insulating glass after the production of drying time depends on the specific ambient temperature.
Technical data
| Max.glass size | 2500mm |
| Min.glass size | 170mm*400mm (2000mm machine) |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | <350kg/m³ |
| Plane angle | 6°- 9° |
| Max glass weight | 400kg |
| Voltage power | 380V 12kw |
| Overall dimension | 8700mm*2000mm*3500mm |
Main components list
| Name | Brand |
| Switch | Switch |
| Servo motor | Japan YASKAWA |
| I/O model | Japan MSYSTEM |
| Lower voltage component | Siemens |
| CPU | Japan YASKAWA |
| Frequency converter | Japan OMRON |
| Switching power supply | Taiwan MW |
| Pneumatic component | Japan SMC |
| PLC | Siemens |
| Guideway | Siemens |
