Product Details:
|
| Name: | Aluminum Strip Cutting Saw | Power Supply: | 380V 50Hz |
|---|---|---|---|
| Total Power: | 0.55kw | Dimension: | 5000*1050*415mm |
| Feature: | High Efficiency | ||
| High Light: | 6000r/Min aluminium section cutting machine,Glass aluminum laser cutter |
||

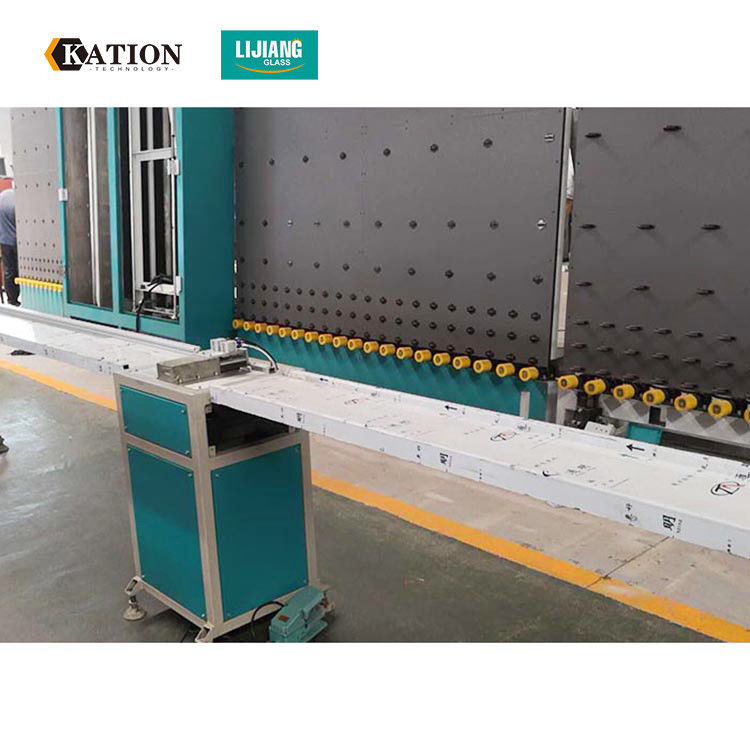

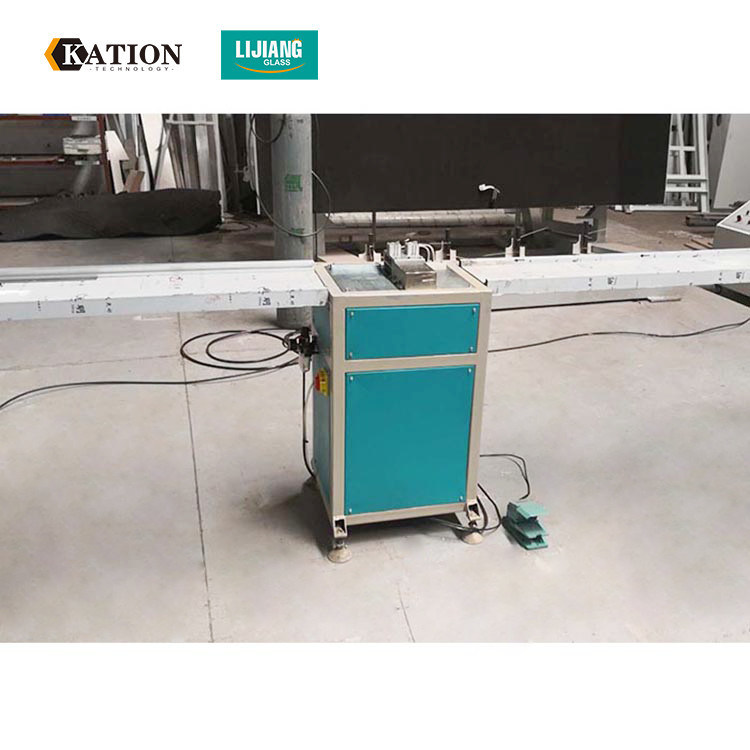

1. Description of Aluminum strip cutting saw
Aluminum strip cutting saw is used to cut aluminum strip of hollow glass.LJQJ02 Aluminum Spacer Cutting Machine is special equipment for cutting aluminum spacer of making the insulating glass process, consists of three parts: the input feeding section, the host, the output feeding section, the machine is simple, safe, unique positioning device is easy to move, accurate positioning.
2. Main technical parameter:
| Working Environment | Parameter | Unit |
| Working Temperature | 15～40℃ | |
| Transport / Storage Temperature | -20～55℃ | |
| Transport / Storage Humidity | 30～90% | |
| Input Power | AC220V±10%,50Hz | |
| Installed Power | 1.65 | KW |
| Working Speed | 6000 | r/min |
| Cutting Saw Diameter | 255 | ㎜ |
| Dimension | 4260×400×1200 | ㎜ |
3.Main feature of Aluminum Spacer Cutting Machine
3.1Aluminum Cutting Machine allowed to cut many spacers,keep high efficiency
3.2 Spacer Cutting Machine is used for cutting aluminum strip
4.Detail of Aluminum Spacer bar Cutting Machine
Placed aluminum in the input feeding section, with a large aluminum block inside of the scale (the actual cutting length of aluminum is the distance from saw to the inside of large aluminum block), according to the cutting length moving small sliding aluminum block of output feeding section, and tighten.
5.Related products
5.1Molecular sieve filling machine LJFGJ 03
Main feature
Technical data
| Power supply | 220V 50Hz |
| Total power | 1kw |
| Dimension | 2490*400*2200mm |
5.2 Butyl Extruder Machine LJTB 01
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Main feature
• PLC control system, touch screen interface
• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust
• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full
• Fast preheat, improve work efficiency
• with preheating function
• With exhaust inflatable function, improve the quality of sealing and save time for plastic
• Quickly coating speed,can up to 47m/min
• Saving the amount of glue
