Freezer For Double Glass Processing Machinery

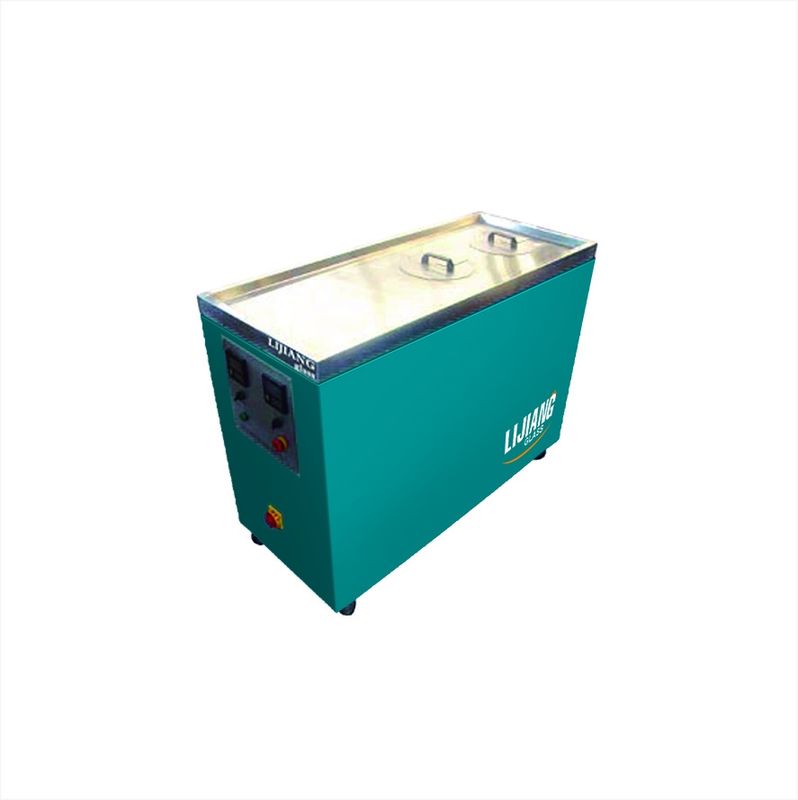

                       Freezer LJSGF01

LJSGF01 Freezer is used for short time refrigerating and heating the spreading gun of

Sealant spreading machine, while you don’t need to wash and clear the spreading gun.

The use of machine can reduce the waste of sealant for clean the gun, reduce the

production cost, and greatly increase the work efficiency.

LJSGF01 Freezer is one of the accessory machines for Sealant spreading machine to

produce Insulating Glass. It has the following features: cover small floor area, easy to

move, reliability, easy service, and so on.

The Freezer adopts the most advanced America Refrigerating system, the core component

(scroll compressor) of which is with the features of high efficiency, low noise, high reliability,

and so on. The operator can adjust the work parameter at any time, and the temperature

status of cold and hot barrel is showed clear on the screen.

Structural Feature and Function

The LJLX01 Freezer is comprised of stander, refrigerating unit, refrigerating barrel, heating

barrel, electric control system and so on.

The refrigerating of antifreeze is completed by the combination of refrigerating unit and

refrigerating barrel.

There is a commercial so called refrigerant in the storage tank of compressor unit, it is colorless

gas in normal temperature, but under the pressure of itself, it is colorless liquid. The compressor

compresses the refrigerant with high pressure when it is in gas status, then; it comes through the

condenser and releases heat by means of cooling fin, at last, condensed to liquid status. Due to

the liquid refrigerant losses the pressure from condenser after it passes through the capacity tube,

it becomes gaseous immediately when it comes through the evaporator on the outside of refrigerating

barrel. As liquid will lower temperature when it becomes gaseous, at the same time, absorbs the

latent heat from the anti-freeze in the barrel, thereby, low the refrigerant’s temperature. Then, the

gaseous refrigerant in the evaporator will be forced back to condenser by compressor and becomes

liquid. This cycle repeats again and again to take away the heat of anti-freeze.

The refrigerant in the refrigerating barrel is the combination of glycol and water, the mixing ratio is

1:1. After put the spreading gun in the barrel, the water level should be 2 to 3 cm lower the bung.

The heating barrel is heated through outside ektexine by two heaters, in order to increase the

temperature of inside water. The water level is the same as refrigerating barrel’s.

The control part in panel consists of temperature controller and switch. It adopts digital temperature

controller, which can switch on or off at any time and adjust the temperature of cold and hot barrel.

Main feature

• It is used for storing the gun when manual glue gun stop work during the process of gluing

insulating glass

• Storing at low temperature,to prevent sealant solidify

• Apply to polysulfide and silicone

• Can be effectively reduced waste when cleaning the glue
