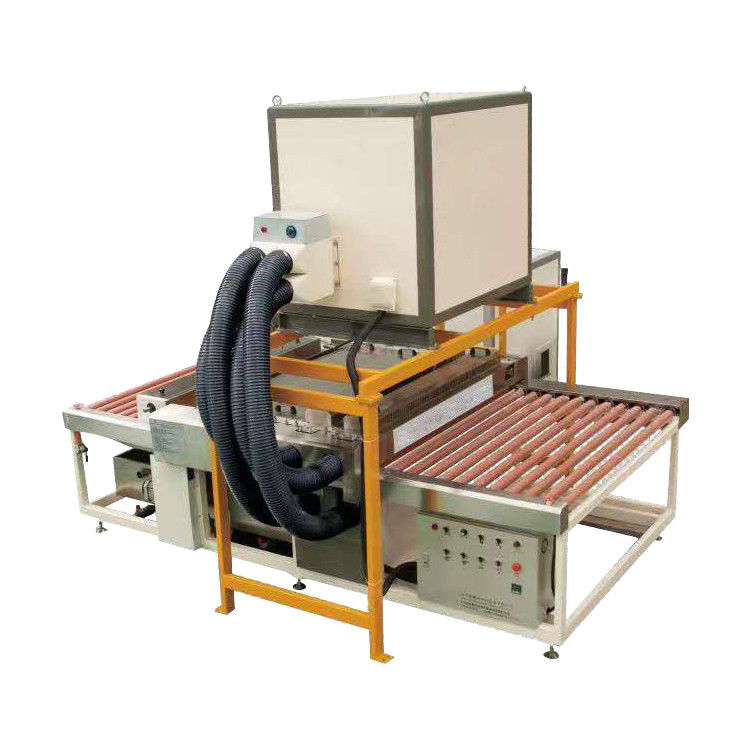

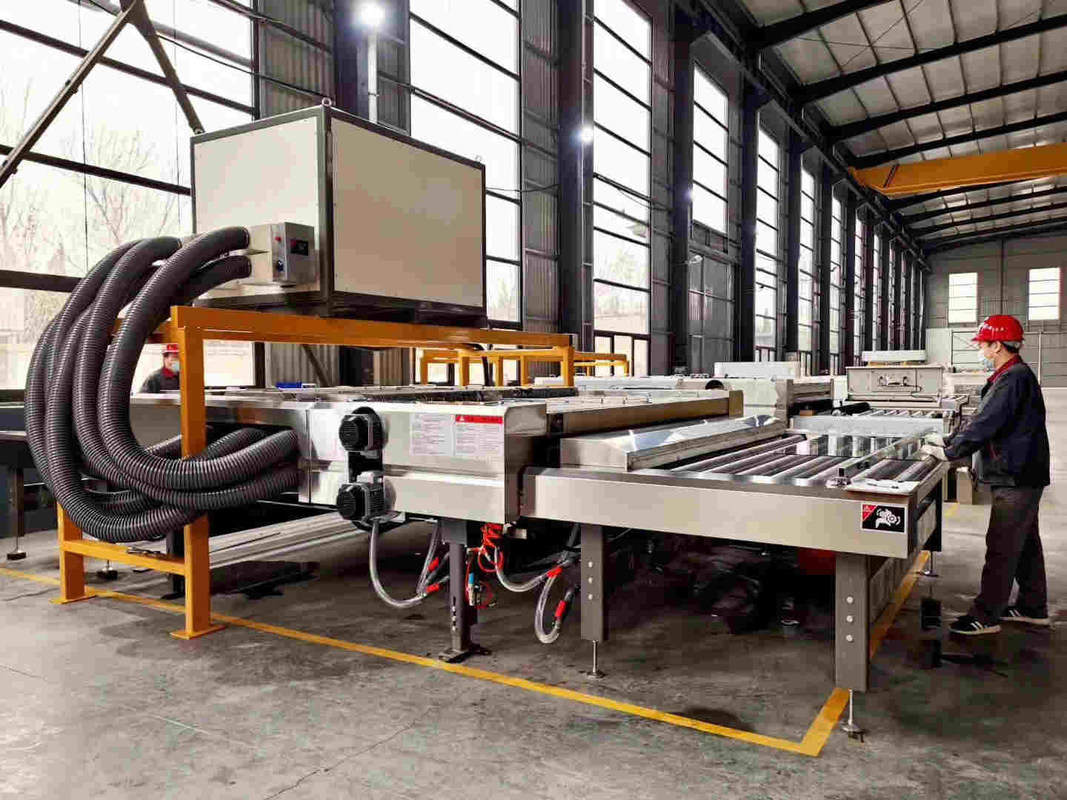

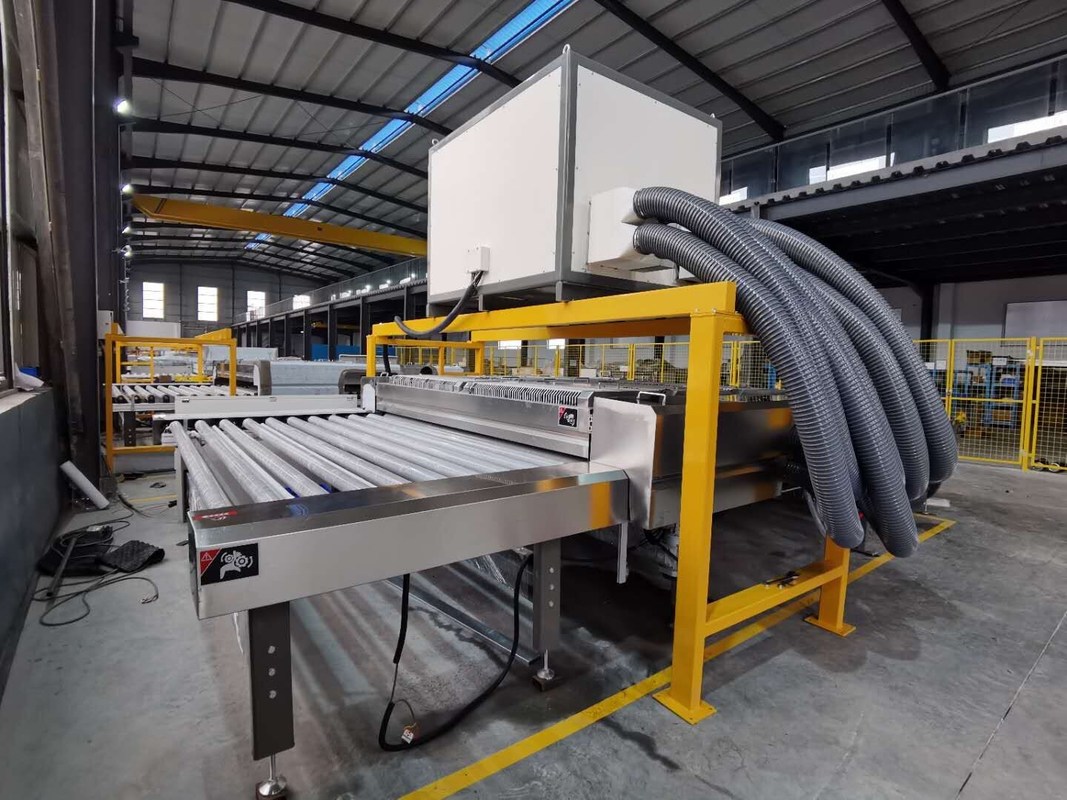

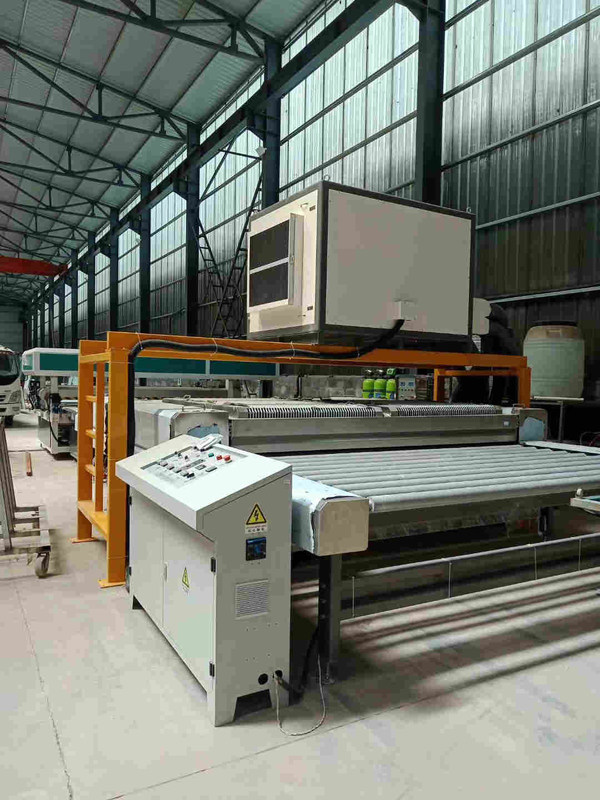

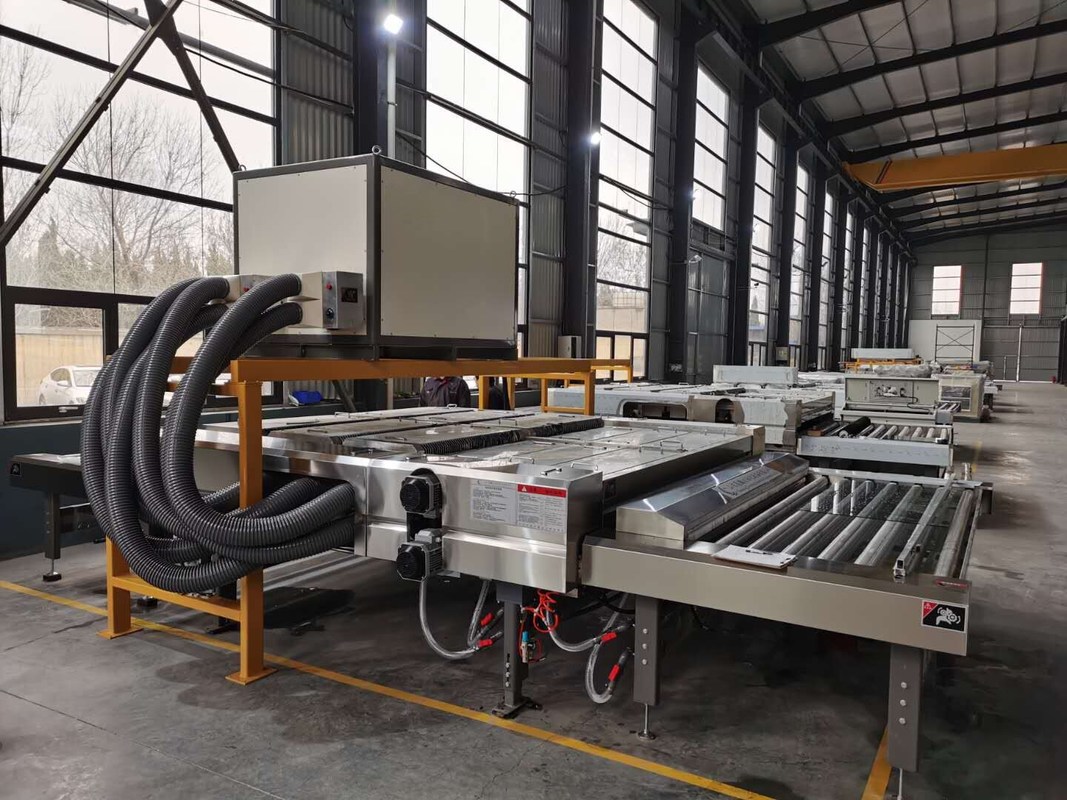

Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500
Structural characteristics:
1. The transfer rubber roller adopts gear rotation, which is stable and convenient for maintenance. The upper and lower brush rollers use two motors for transmission movement, which is stable and the belt is durable.
2. The top of the machine is equipped with a stainless steel water tray, and the roller covered by the transfer rubber can be cleaned by itself during the rotation; it is also equipped with a sprinkler system that can wet the glass surface before the glass enters the cleaning part to improve the cleaning effect. The parts of the washing part that are in contact with water are all made of stainless steel, equipped with a circulation pump, the water tank can draw out the washing liquid, and perform three-layer washing. Water can get better results).
3. The machine transmission adopts vulcanized rubber cover roller structure (no contact with acid liquid). The cleaning part and the drying part are automatically lifted. The maximum lifting range is 400mm to adapt to the cleaning of different glass thicknesses. Continue to clean and replace the comb.
4. Equipped with 3 pairs of hair brush rollers (φ150mm), which can clean LOW-E hard glass, ordinary coated glass and sunlight coated glass. When cleaning coated glass, two pairs of powerful brush heads will lift up the cylinder, but will not hurt Coated surface.
5. For the drying part, the air-drying system is equipped with two pairs of air knives, a pair of straight air knives and oblique air knives
In application, the high-pressure fan can completely dry the glass surface, the lateral wind force is large, and the air drying effect is good. (Two cold air knife, no need to heat). Keep the product after washing can meet the requirements of drying level. The upper blade adjusts the lift through the control system. The maximum internal opening width is 400mm, which is convenient to adjust the height and degree of the air blade and improve the drying effect. Equipped with high-pressure fan 22kw, air intake through air filtration, high wind force, good drying effect, the entire bellows is installed on the top of the drying part, and automatically rises and falls following the washing and drying parts to ensure that the washed products can meet the requirements of drying level.
6. Frames and other sheet metal parts that are not in contact with water are sprayed with advanced mechanical coatings after special processing. The coating has strong adhesion and the surface is bright and durable.
specification
|
Maximum glass width
|
2500mm (effective maximum: 2650mm)
|
|
Minimum glass specification
|
400mm×400mm (limited to single row on left and right sides)
|
|
Glass thickness
|
3mm-25mm (digital display)
|
|
Speed range
|
glass thickness within 3-25mm Vmax=1-12m/min
|
|
Main drive, brush speed regulation method
|
frequency control
|
|
Table height
|
900±25mm
|
|
Total power
|
42KW(water-bearing wind heating: 15KW)
|
|
Water source
|
self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment
shall be provided by the buyer)
|
|
Power source
|
380V 50Hz
|
|
Dimensions (length × width × height)
|
approximately 6260*4800*3100mm
|
|
Weight
|
3940kg
|
production description
LJWT02 Water treatment system
Description►►►
1. The quartz sand filter Accumulative work is up to 8 ~ 20 hours, back flush for 20 minutes.Accumulative work is up to 1.5 -2 hours, replace the quartz sand filter material.
2. The activated carbon adsorption filter: When exports residual chlorine content > 0.1 mg/L, should replace the activated carbon filter material, normally when the
cumulative work is up to 1 year, replace the activated carbon filter material.
3. The water softener: Replace the softening resin for 1 year work
4. The security filter Generally, cumulative work for three months ,a fine filter should be replaced. When the fine filter pressure is less than 0.04 Mpa and water shortage indicator light is on,a fine filter should be replaced,too.
5. Inverse osmosis filter
After 6 months of work, application drug RO membrane should be clean.
After 1-1.5 years accumulated work,we should replace the RO membrane.
