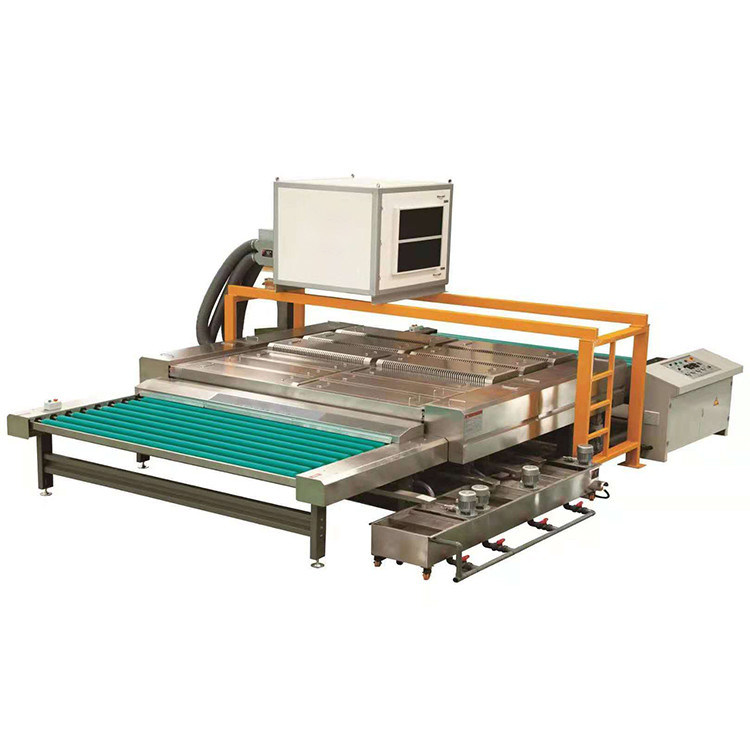

Horizontal glass washing machine used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.
| Max washing Glass | 2500mm(2650mm) |
| Power supply | 380V 50Hz |
| Dimension(L*W*H) | 6260*4800*3100 |
| Weight | 3940kg |
| Glass thinkness | 3-25mm |
- 1.Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency；
- 2. The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder
- 3. The shaft of rubber roller is made of stainless steel
- 4. The washing part in contact with water is made of stainless steel
- 5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain
- 6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface)；
- 7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing)；
