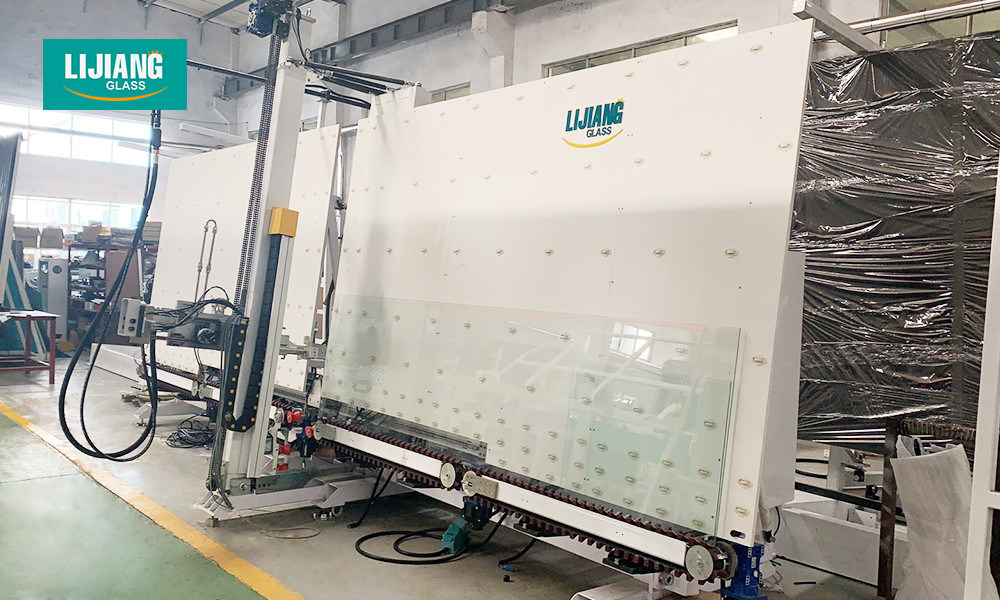

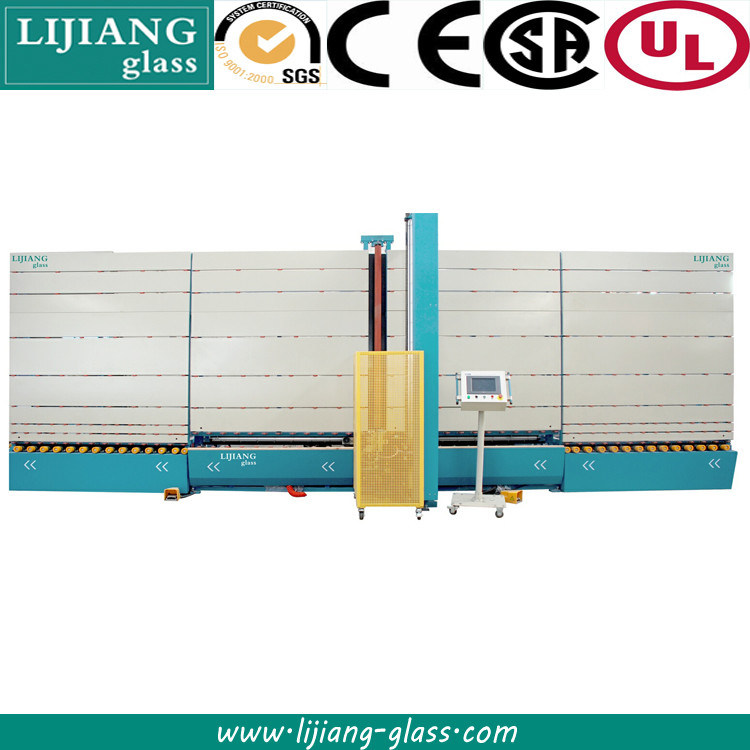

|Name:||Smart Vertical Edge Deleting Machine For Low-E Glass And Double Glazing Glass||Max Glass Size:||2500*4500mm|
|Min Glass Szie:||350*500mm||Glass Thickness:||3-15mm|
|Glass Film Deleting Speed:||15m/min||Grinding Wheel:||10/12/15|
|Machine Direction:||Let To Right /right To Left||Electricity Components:||Schneider|
glass making machine,
double glazing glass machine
1, Low-e glass deleting machine have Two-way glass access
2, Low-e glass deleting machine have High deleting speed
3, Low-e glass deleting machine can Auto recognize coating side of low-e glass.
4, Low-e glass deleting machine can Auto measure the size and the thickness
5, Low-e glass deleting machine have Safety protection device, Auto-dedusting function, Adopt the high power fan
6, Low-e glass deleting machine have PLC control system,touch screen interface
7, Low-e glass deleting machine have servo control systems )(conveyor, sucker, lifting, rotaty, machine head movement )
8, French Schneider
|Max.glass processing size||2500*4500mm|
|Min.glass processing size||350*500mm|
|Edge deleting width||10-50mm|
|Glass conveyor speed:||30m/min|
|Edge deleting speed||0-15m/min|
|Abrasive wheel width||10/12/15mm|
|Air supply||Flow 0.2m3/min|
|Total power||3P 380V 50Hz 3.35KW|
JINAN LIJIANG QUTOMATIC EQUIPMENT CO.LTD is an enterprise which integrated product development, designing, sale and service into a whole. The company is located in the beautiful spring city, Jinan. Because it is close to Beijing-shanghai high-speed railway line, it’s very convent for transportation.
The company adheres to the “Hi-Q products”. We are striving to create the top-grade products through setting up technology research and development center, inviting some experts to guide. We also cooperate with the domestic well-know enterprises and actively import foreign advanced technology. Now our company are the main supplier of glass deep processing enterprises in China. Our equipment are used by the main domestic famous glass factories, such as NORTH GLASS, XIN FU XING GLASS,YAO HUA GLASS, DALIAN HUAYING GLASS etc. We also have more than 400 customers who use our machines in China. We have got CE certification in 2017. So far our machines has exported to more than 30 countries and regions, just like Europe, South America, Middle East, Southeast Asia and so on.
At the same time, our company cooperates with scientific research institution, which is based on research and development center, imported advanced intelligence. Our company successively cooperates with institution of China North Industries Group and Shandong University in order to develop more new products. Now we have already successfully produced vertical insulating glass production line, vertical insulating glass sealing robot and new butyl extruder machine, which quality has reached the domestic top-grade level.
LIJIANG GLASS are goes into a leading way in the mechanical field with the advanced technology, first-class products, perfect service and good reputation!
