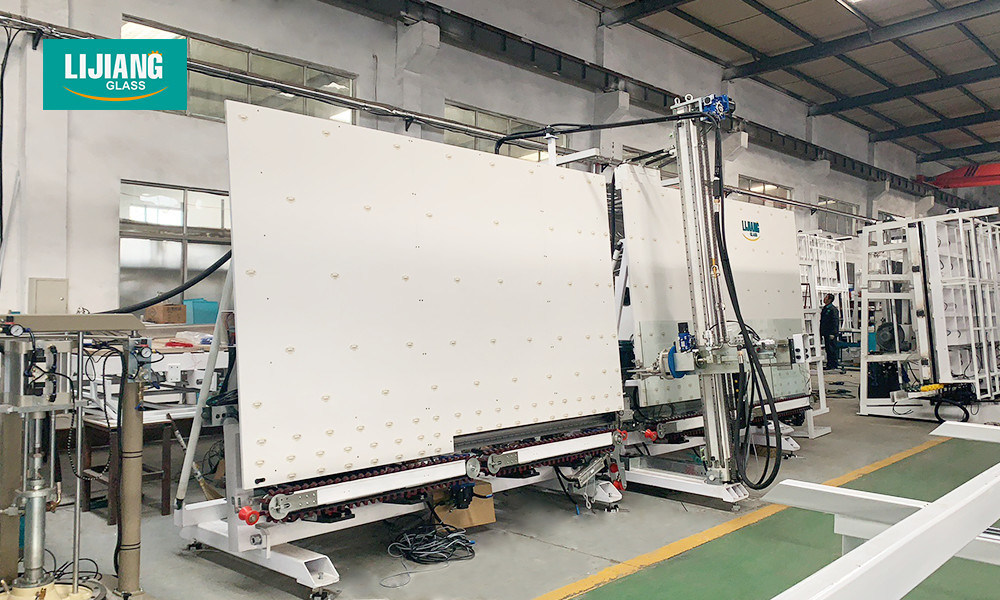

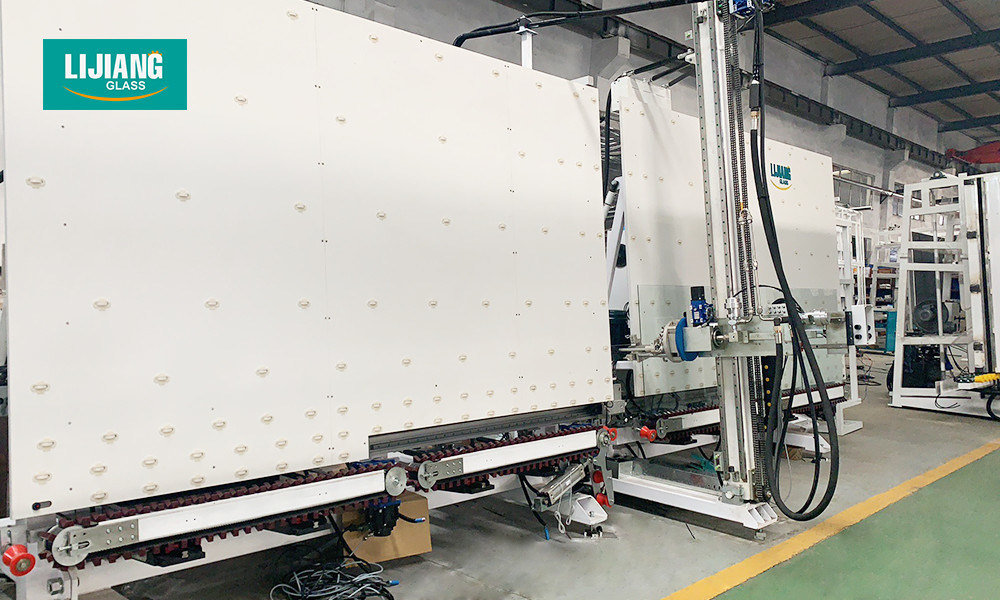

Vertical Automatic Low E Glass Deleting Machine For Insulating Glass Production Line

Vertical Automatic Low E Glass Deleting Machine For Insulating Glass Production Line
Vertical Automatic Low E Glass Deleting Machine For Insulating Glass Production Line Vertical Automatic Low E Glass Deleting Machine For Insulating Glass Production Line Vertical Automatic Low E Glass Deleting Machine For Insulating Glass Production Line

Large Image :  Vertical Automatic Low E Glass Deleting Machine For Insulating Glass Production Line

Product Details:
Place of Origin: CHINA
Brand Name: Lijiang
Certification: CE
Model Number: LJCM2545
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: WOODEN BOX
Delivery Time: 30DAYS
Payment Terms: L/C, T/T
Supply Ability: 10 SETS PER MONTH
Contact Now

Vertical Automatic Low E Glass Deleting Machine For Insulating Glass Production Line

Description
Name: Low-e Glass Film Deleting Machine Max Glass Size: 2500*4500mm
Min Glass Szie: 350*500mm Glass Thickness: 3-15mm
Glass Film Deleting Speed: 15m/min Grinding Wheel: 10/12/15
Machine Direction: Let To Right /right To Left User Field: Glass Processing Field
High Light:

glass making machine

,

double glazing glass machine

Vertical automatic Low-e glass deleting machine for insulating glass production line



  • low-e deleting machine have Two-way glass access way
  • low-e deleting machine have a High deleting low-e film  speed
  • low-e deleting machine can Automatic  recognize coating side of low-e glass.
  • low-e deleting machine could Automatically  measure the size and the thickness of low-e glass
  • low-e deleting machine have Safety protection device and Auto-dedusting function and Adopt the high power fan
  • PLC control system,touch screen interface
  • 5 servo control systems )(conveyor, sucker, lifting, rotaty, machine head movement )
  • French Schneider

Vertical Automatic Low E Glass Deleting Machine For Insulating Glass Production Line 0Vertical Automatic Low E Glass Deleting Machine For Insulating Glass Production Line 1







Max.glass processing size 2500*4500mm
Min.glass processing size 350*500mm
Glass thickness 3-19mm
Edge deleting width 10-50mm
Glass conveyor speed: 30m/min
Edge deleting speed 0-15m/min
Abrasive wheel width 10/12/15mm
Air supply Flow 0.2m3/min
Air pressure ≥0.8MPa
Total power 3P 380V 50Hz 3.35KW
Dimension 8000*2500*3400mm
