Product Details:
|
| NAME: | SEALING ROBOT | MAX GLASS SIZE: | 2500*4000MM |
|---|---|---|---|
| MIN GLASS SIZE: | 350*400MM | Electricity Brand: | Germany Simens |
| Glass Thickness: | 12-50mm | Working Speed: | 5-40m/min |
| Using Materials: | Polysofield | User: | Toughened Glass Manufacturer |
| High Light: | glass production machinery,double glazing machinery |
||
Automatic vertical Insulating glass machine Double glass machine Sealing robot
Mechanical head is placed in front
Achieve the real connection with IG line when doing stepped glass.
Storage Function
It can store three pieces of insulating glasses on the three belts ( less than 1.8m.), it need 2 more sets servo motors, control system

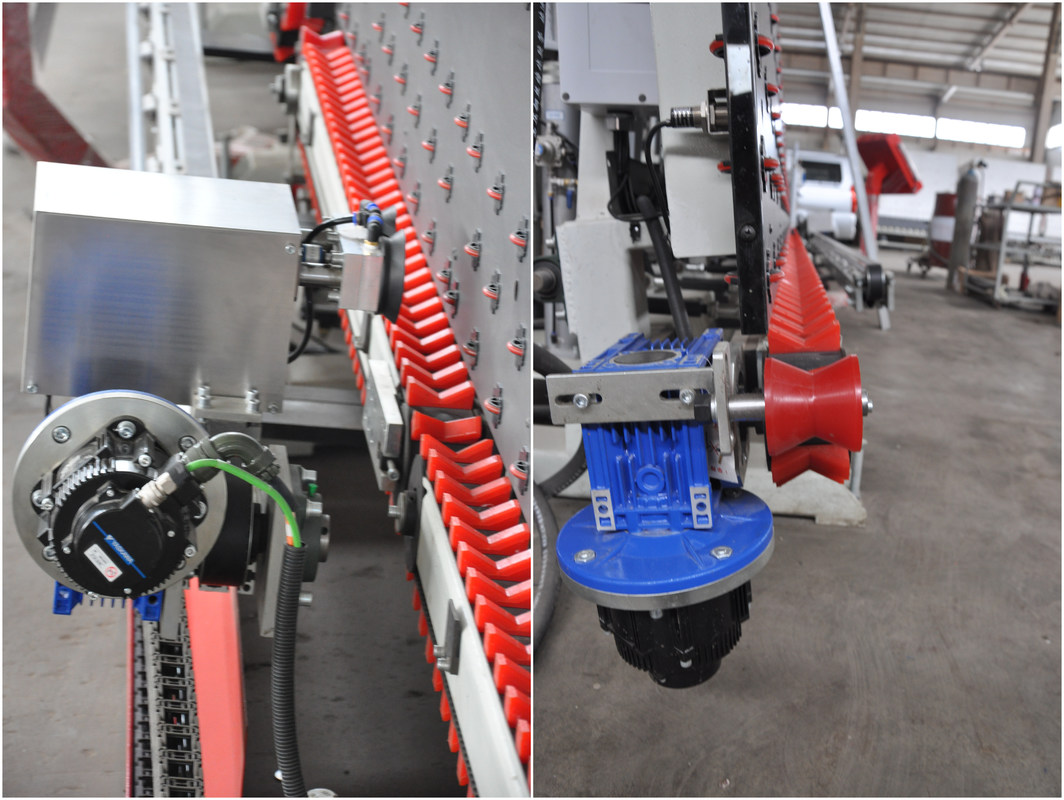

The robot uses eight YASKAWA servos, four of them control transmission parts, in the another four servos, they control sucker, lifting, driving and Forward & backward movement and rotating.
Single Glue System
Equipped with single A component and single B component.
Double Glue Systems(option )
Equipped with two sets of A components and two sets of B components, which can be used for two kinds of sealants, such as silicone rubber, polysulfide rubber and silicone structural adhesive.
| Max.glass size | 2000*2500mm | 2000*2500mm |
| 2500*3500mm | 2500*4500mm | |
| Min.glass size | 2000*2500mm | 170*400mm |
| 2500*3500mm | 300*400mm | |
| Glass thickness | 12-56mm | |
| Working speed | 5-40m/min | |
| Air pressure | 0.6-0.8MPa | |
| Squeeze pressure | <350kg/m³ | |
| Plane angle | 6°- 9° | |
| Max glass weight | 400kg | |
| Voltage power | 380V 12kw | |
| Overall dimension | 8700mm*2000mm*3500mm | |
| Name | Brand |
| Servo motor | Japan YASKAWA |
| I/O model | Japan MSYSTEM |
| Lower voltage component | Germany Siemens |
| CPU | Japan YASKAWA |
| Switching power supply | Taiwan MW |
| Pneumatic component | Japan SMC |
| Electrical proportional valve | Japan SMC |
| Precision pressure regulating valve | Japan SMC |
| Touch screen | Taiwan WENVIEW |
| Guideway | Taiwan HIWIN |
