Product Details:
|
| NAME: | SEALING ROBOT | MAX GLASS SIZE: | 2500*4000MM |
|---|---|---|---|
| MIN GLASS SIZE: | 350*400MM | Electricity Brand: | Germany Simens |
| Glass Thickness: | 12-50mm | Working Speed: | 5-40m/min |
| Using Materials: | Silicon/polysofield | ||
| High Light: | double glazing manufacturing equipment,double glazing machinery |
||

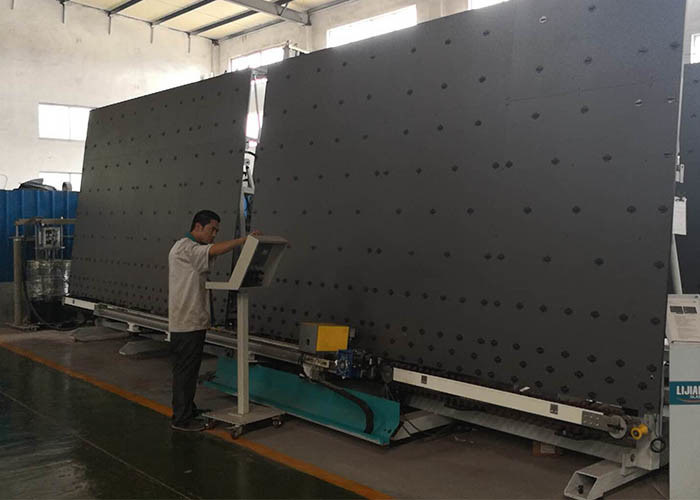

Automatic Vertical Double Glazing Sealing Robot double glazing glass machine
LJTJ2540 is the latest automatic vertical insulating glass sealing robot. It is used to coat double glazed glass through mixing the A component and B component together according to a certain percentage. Applied to double/triple/shaped and stepped glasses (Optional) with stable performance and easy operation.
Equipped with two sets of A components and two sets of B components, which can be used for two kinds of sealants, such as silicone rubber, polysulfide rubber and silicone structural adhesive.
The dyad body device has two functions. The left one is used for filtering impurities and moisture when filling gas into , then the right one plays the role of lubrication.
It can store three pieces of insulating glasses on the three belts when their size are less than 1.8m.
| Max.glass size | 2000*2500mm | 2000*2500mm |
| 2500*3500mm | 2500*4500mm | |
| Min.glass size | 2000*2500mm | 170*400mm |
| 2500*3500mm | 300*400mm | |
| Glass thickness | 12-56mm | |
| Working speed | 5-40m/min | |
| Air pressure | 0.6-0.8MPa | |
| Squeeze pressure | <350kg/m³ | |
| Plane angle | 6°- 9° | |
| Max glass weight | 400kg | |
| Voltage power | 380V 12kw | |
| Overall dimension | 8700mm*2000mm*3500mm | |
