Product Details:
|
| Working Air Pressure: | 0.6Mpa | Mixed Rate: | 6:1---14:1 |
|---|---|---|---|
| Diameter Of Sealant A/B: | 570mm/280mm | Sealant Volume: | 6L/min |
| Sealant Spreading Press: | 15-20Mpa | Machine Size: | 1100*950*1630mm |
| Color: | Green | Name: | Higher Efficiency Sealant Spreading Machine For Insulating Glass Sealing Machine Insulating Glass Production Line |
| High Light: | double glazing manufacturing equipment,double glazing machinery |
||

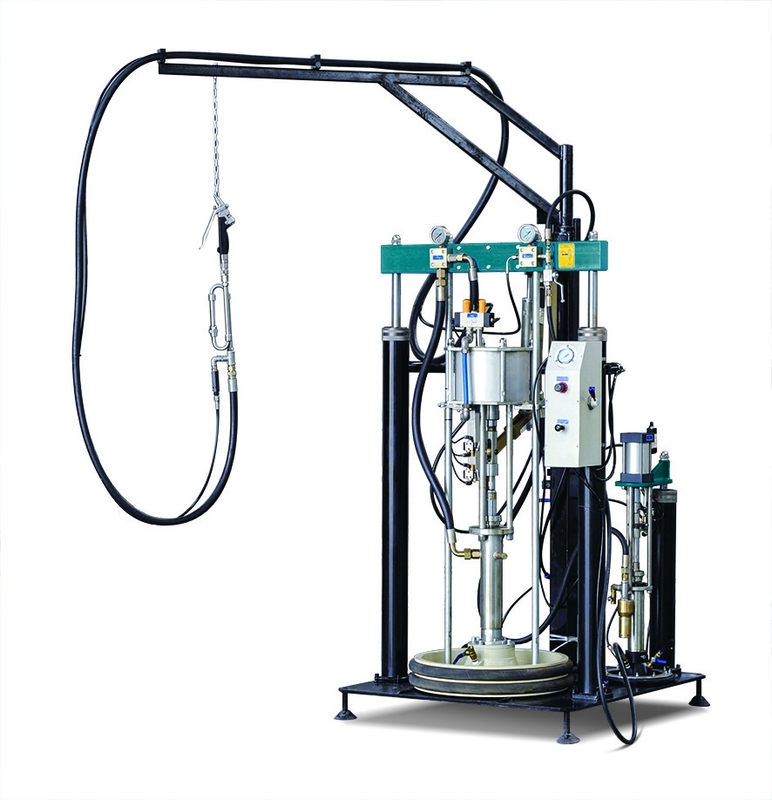

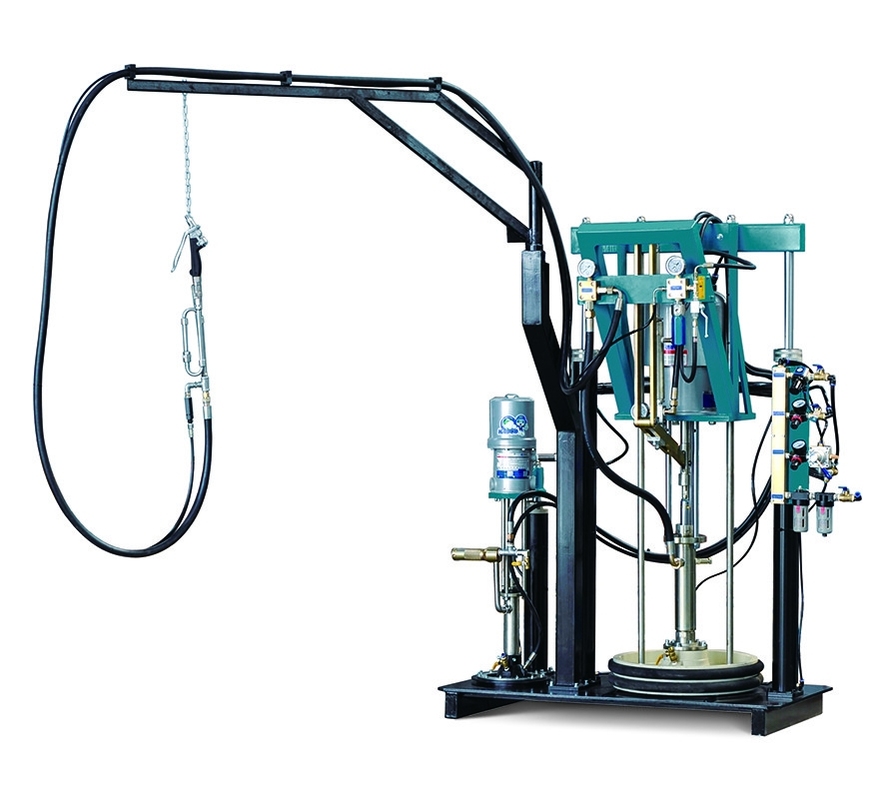

APPLICATION
This seamlant sealing pumps is one of the double glazing machine was designed by advanced technology from abroad and made in China. It is special equipment used for spreading the two-component polysulphide glue and/or two-component silicone structure glue for insulating glass or curtain wall glass.A and B pump adopt Korea brand HASCO.So it can ensure the reliable working-effect. It is the important machine fou insulating galss manufacture.
Special and convenient mixed device of the glass sealing machine can ensure the high quality mixing of the two-component polysulphide glue and/or two-component silicone structure glue. This sealing galss machine is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.
Main feature
1.Imported motor system to improve equipment efficiency
2.Imported sealant gun, stainless steel mixer
3.High pressure protect device
4.Mixed rate detector
5.Anti-back flow control structure
6.Important control parts adopt Korea Brand
7.Mixed rate detector can control the rare of two kinds of glue
Main technical parameter
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
| Weight | 490kg |
| Capacity of the glue drum | 200-300 ml/200 kg |
Company Introduction
JINAN LIJIANG QUTOMATIC EQUIPMENT CO.LTD is an enterprise which integrated product development, designing, sale and service into a whole. The company is located in the beautiful spring city, Jinan. Because it is close to Beijing-shanghai high-speed railway line, it’s very convent for transportation.
The company adheres to the “Hi-Q products”. We are striving to create the top-grade products through setting up technology research and development center, inviting some experts to guide. We also cooperate with the domestic well-know enterprises and actively import foreign advanced technology. Now our company are the main supplier of glass deep processing enterprises in China. Our equipment are used by the main domestic famous glass factories, such as NORTH GLASS, XIN FU XING GLASS,YAO HUA GLASS, DALIAN HUAYING GLASS etc. We also have more than 400 customers who use our machines in China. We have got CE certification in 2017. So far our machines has exported to more than 30 countries and regions, just like Europe, South America, Middle East, Southeast Asia and so on.
At the same time, our company cooperates with scientific research institution, which is based on research and development center, imported advanced intelligence. Our company successively cooperates with institution of China North Industries Group and Shandong University in order to develop more new products. Now we have already successfully produced vertical insulating glass production line, vertical insulating glass sealing robot and new butyl extruder machine, which quality has reached the domestic top-grade level.
LIJIANG GLASS are goes into a leading way in the mechanical field with the advanced technology, first-class products, perfect service and good reputation!
