LJGZ2020 Desiccant Filling Machine Double Glazing Glass Machine Insulating glass machine automated filling machine

LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine
LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine

Large Image :  LJGZ2020 Desiccant Filling Machine Double Glazing Glass Machine Insulating glass machine automated filling machine

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG
Certification: CE
Model Number: LJGZ2020
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 7500 PER SET
Packaging Details: wooden box or film cover
Delivery Time: 5days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 sets per month

LJGZ2020 Desiccant Filling Machine Double Glazing Glass Machine Insulating glass machine automated filling machine

Description
Name: Desiccant Filling Machine Speed: 1200 Pieces Per Day
Operate: Automatic Plc: Siemens
Frame: Can Filling Shape Size: 1300*1100*1650mm
Maximum Size: 2500mm*2500mm Minimal Size: 300*250mm
Air Source: 0.65Mpa Total Power: AC220V 50HZ 1KW
Aluminum Specifications: 6A--27A
High Light:

double glazing manufacturing equipment

,

double glazing machinery

Machine describtion:

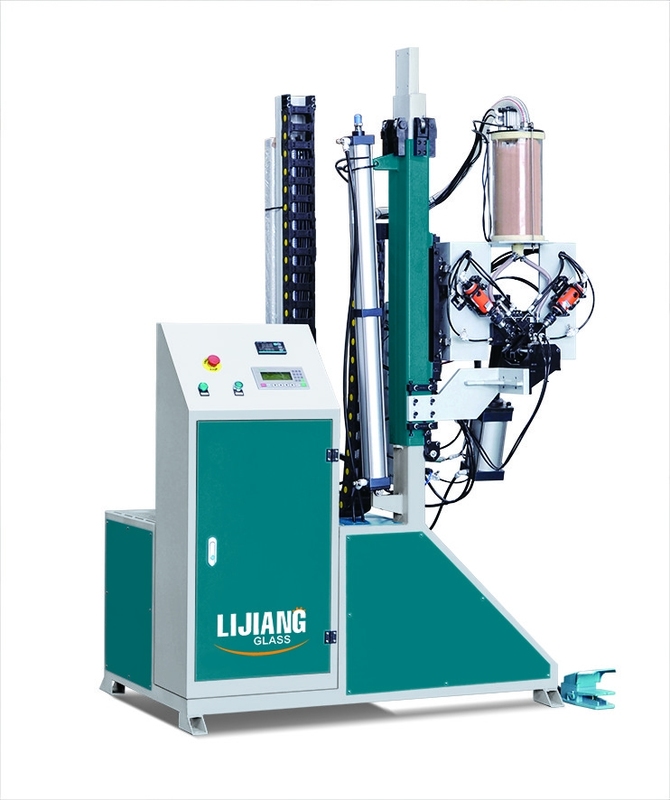

Desiccant Filling Machine can automatically achieve actions of drilling holes automatically in the spacer frames,  filling desiccant and sealant.

Desiccant Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure  property of sealant. Desiccant Filling Machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.

LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine 0





The main parts of the desiccant filling machine





Name Brand Name Brand
PLC German SIEMENS Triplet TAIWAN AIRTAC
Low voltage electrical apparatus German SIEMENS Solenoid valve TAIWAN AIRTAC
Sensor Korea AUTONICS Gas driller Taiwan BOA
Guide Taiwan TBI Switch power Taiwan TEND

Main technical parameter





Filling aluminum frame’s maximum size 2500mm*2500mm
Filling aluminum frame’s minimal size 300mm*250mm
Article aluminum specifications 5.5-24mm
Air source ≥0.65MPa
Power supply and power consumption AC220V 50Hz 1.8KW
Molecular sieve diameter needed 0.5-0.9mm
Dimension 1300mm*1100mm*3650mm

LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine 1

LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine 2LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine 3LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine 4



Company Profile

JINAN LIJIANG QUTOMATIC EQUIPMENT CO.LTD is an enterprise which integrated product development, designing, sale and service into a whole. The company is located in the beautiful spring city, Jinan. Because it is close to Beijing-shanghai high-speed railway line, it’s very convent for transportation.

The company adheres to the “Hi-Q products”. We are striving to create the top-grade products through setting up technology research and development center, inviting some experts to guide. We also cooperate with the domestic well-know enterprises and actively import foreign advanced technology. Now our company are the main supplier of glass deep processing enterprises in China. Our equipment are used by the main domestic famous glass factories, such as NORTH GLASS, XIN FU XING GLASS,YAO HUA GLASS, DALIAN HUAYING GLASS etc. We also have more than 400 customers who use our machines in China. We have got CE certification in 2017. So far our machines has exported to more than 30 countries and regions, just like Europe, South America, Middle East, Southeast Asia and so on.

At the same time, our company cooperates with scientific research institution, which is based on research and development center, imported advanced intelligence. Our company successively cooperates with institution of China North Industries Group and Shandong University in order to develop more new products. Now we have already successfully produced vertical insulating glass production line, vertical insulating glass sealing robot and new butyl extruder machine, which quality has reached the domestic top-grade level.

LIJIANG GLASS are goes into a leading way in the mechanical field with the advanced technology, first-class products, perfect service and good reputation!

LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine 5







Our technology team

LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine 6

Our quality control:

LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine 7

LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine 8

Our exhibition  show

 Germany glass show

LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine 9

LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine 10



Our service team



LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine 11





Shiping

LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine 12LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine 13



LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine 14LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine 15LJGZ2020 Desiccant Filling Machine   Double Glazing Glass Machine  Insulating glass machine automated filling machine 16
