Place of Origin:
china
Brand Name:
LIJIANG
Certification:
CE

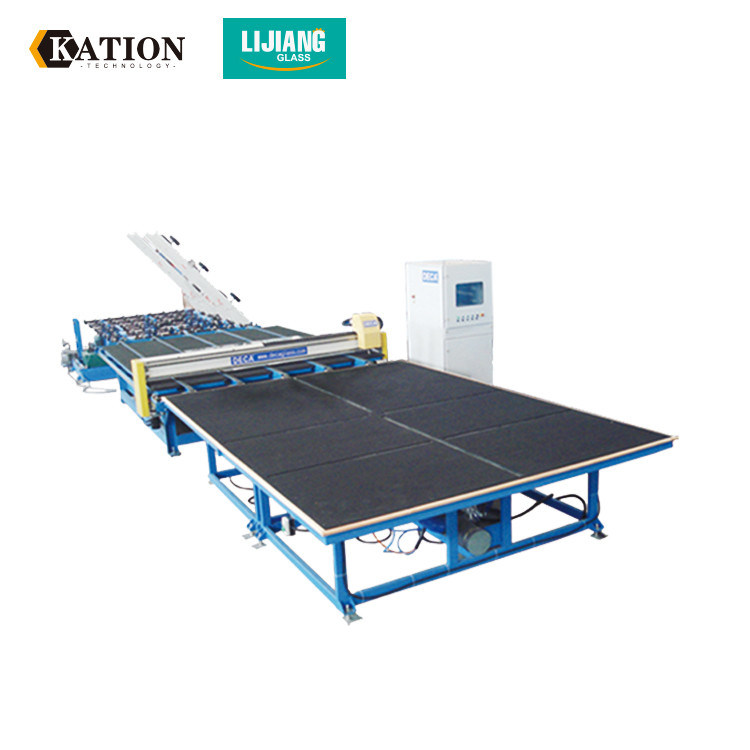

Automatic Glass cutting machine used in hollow glass production line
Automatic glass cutting machine consists of chassis mechanism, beam mechanism, worktable mechanism, cutting knife mechanism, conveying mechanism, photoelectric scanning positioning mechanism and electrical control system.
Automatic glass cutting machine working principle
Automatic glass cutting machineis to convey the cut glass by conveying belt to worktable, automatically input the position of glass through photoelectric scanning system, and then the cutting head with diamond wheel on the cutter holder moves along X and Y directions respectively by program control, cut the sheet. CNC motion controller is used in the control part of the machine, and advanced AC servo motor is used in the drive part.
technical parameter
| cutting precision | ≤±0.30mm |
| max.cutting size | 3660×2750mm |
| min.cutting size | 100×100mm |
| glass thickness | 3~19mm |
| cutting speed | max100m/min |
| working table height | 930±25mm |
| cutting table height | 4710×3250×930mm |
| cutting table dimension | 1500kg |
| loading table transport speed | 40m/min |
| loading table tilting speed | 7m/min |
| loading table forward distance | 1000mm |
| loading table max.absorb size | 3660×2750mm |
| loading table min.absorb size | 1800×1800mm |
| loading table dimension (odd station) | 6000×3900×930mm |
| max. thickness of glass packing | 800mm |
| min.glass nog height | 240mm |
| breaking table dimension | 4200×3000×930mm |
| air cushion motor power | 5.5kw |
| air pressure | 0.5--0.8Mpa |
| power supply | AC380V 50Hz |
| total power | 18.5KW |
