Product Details:
|
| Name: | Automatic Glass Loading Machine | Application: | Glass Crane Loading Machine |
|---|---|---|---|
| Max.load: | 300kg Or 500kg Or 600kg | Rotated Angle: | 90° |
| Upright Height: | 3400mm Or 3900mm | Rail Length: | 1000mm |
| High Light: | glass production machinery,double glazing machinery |
||

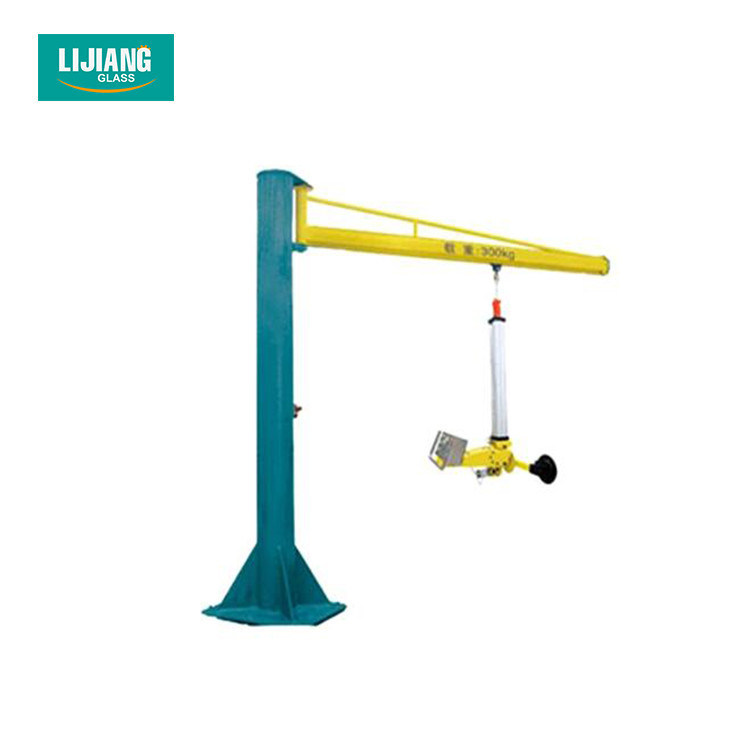

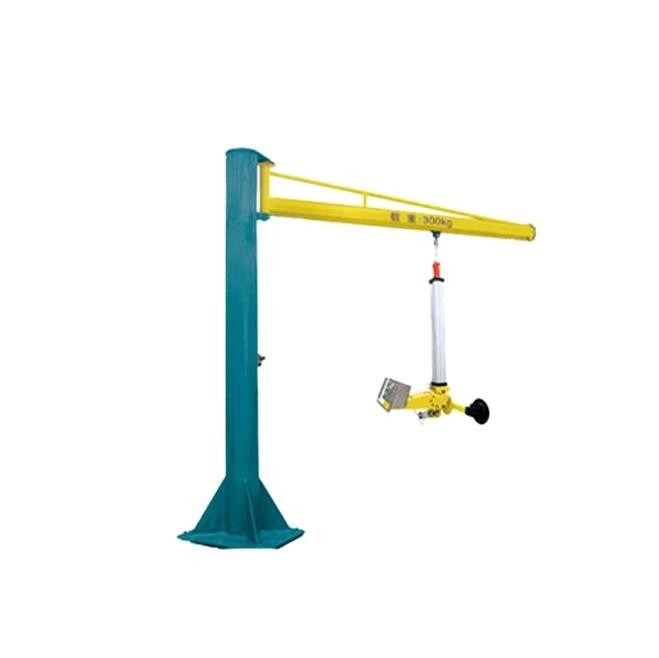

Glass lifting cantilever crane
1. Production
Description of the product: glass lifting cantilever crane can load of 300 kg.
Glass lifting cantilever crane can be used without external power supply. The suction, release and rotation of the suction cup are all controlled by remote control. Each suction cup has a separate switch which can be used as required, and the suction cup holder has a telescopic rod which can be installed or removed as required.
Glass lifting cantilever crane and electrical components are manufactured by the Schneider brand of France, and the vacuum pressure control adopts the German Festoon brand, the electromagnetic valve and the pressure gauge and the filter adopts the Japan SMC, the remote controller adopts the Taiwan Yuding brand, and the gas pipe adopts the German Festoon and the Taiwan Airtac brand, and the sucker is a silicone suction cup.
Glass lifting cantilever crane is reliable and safe, easy to operate.
Glass lifting cantilever crane is commonly used for glass loading and unloading work in glass deep processing process, such as cutting, grinding, cleaning, tempered, laminated and insulated.
Technical data
| Max.load | 300kg/500kg/600kg |
| Rotated angle | 90° |
| Upright height | 3400mm or 3900mm |
| Rail length | 1000mm |
| Quantity of sucker | 2 or 4 |
| Air pressure | 0.5MPa-0.8MPa |
