Powerful Vertical Insulating Glass Machine / Glass Sealing Robot Machine

Ji Nan Li Jiang Vertical Insulating Glass Sealing Robot Machine In Blue

Equipment Characteristic

⇒Fully automatic and efficient equipment

⇒Min & max glass sizes can be adjusted

⇒German siemens control system,makes the equipment performance more stable

⇒Eight servo system

⇒Machine can automatically measure glass size,glue depth and glue speed can online adjuat

⇒Timing belt positioning is accurate and transmission is stable

⇒Glass corner is full of glue, no bubbles, smooth surface, no need for secondary glue

⇒Auto - trimming function, make glass corner smooth, no scratches and pollution

Detial

1.Two sets of system:single or double adhesive system,glue a and glue b automatic mixing and ratio

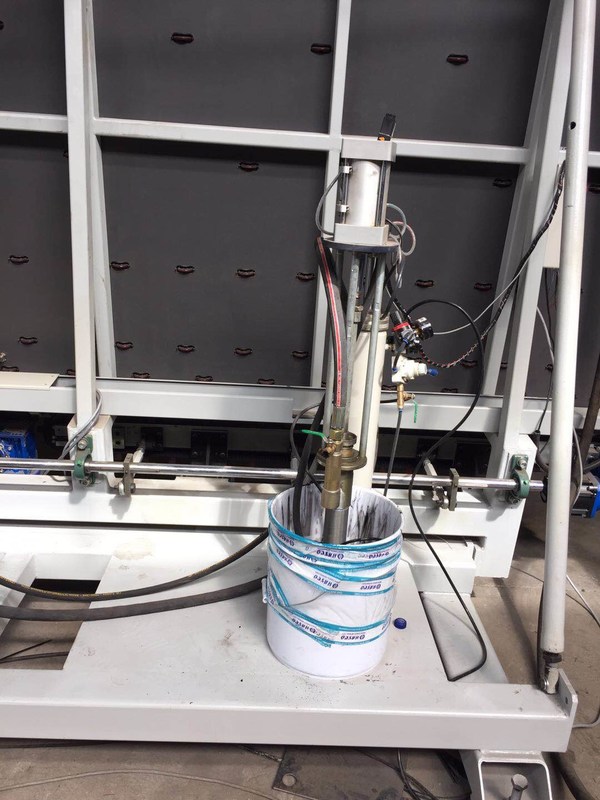

2.Back glue device:b glue with the increase of pressure automatically flow back to the rubber barrel, save energy

3.Dyad body device:the device on the left automatically filters out moisture and impurities, while the device on the right lubricates

4.Two suckers device:hold on to the glass to prevent it from falling off during sealing

5.Sealing device:german siemens servo motor controls the sealing part with 360° rotating; scrape blade scrapes out extra glue and no need to repair glass corner by second time

6.Timing belt positioning is accurate and transmission is stable

7.Sensor:position the glass and sensor glue deep automatically

8.Storage function:when the size of insulating glass is less than 1.8m,the storage part can put 3 pieces

9.Optional:shaped,triple and stepped glass

10.Special device:manual device,be eary to adjust in case

11.Eight servos:four of them control transmission parts,in the another four servos,they control sucker,lifting,driving and revering and rotating

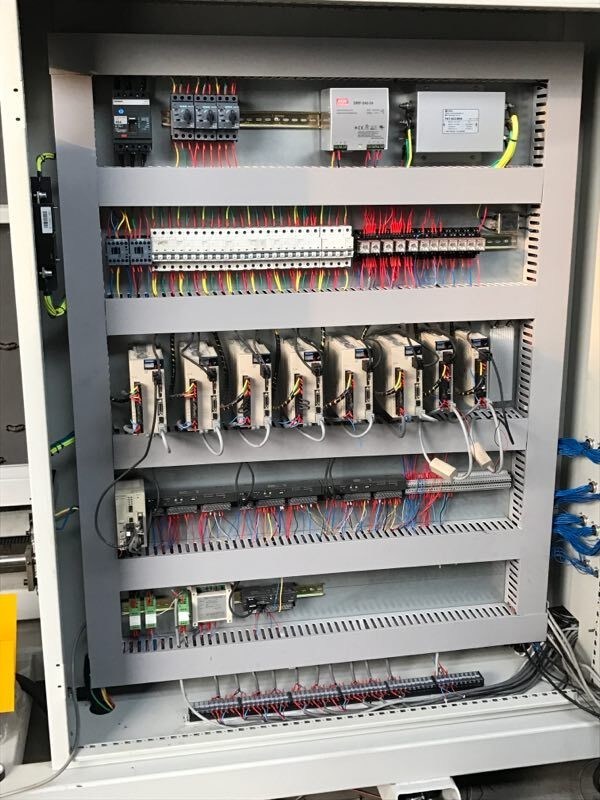

Main electrical components and technical data
