Aluminum Spacer Bending Insulating Glass Machine 26 S Speed For Large Frame

Aluminum Spacer Bending Insulating Glass Machine 26 S Speed For Large Frame

glass making machine

double glazing glass machine

Place of Origin:

JINAN,CHINA

Brand Name:

LIJIANG GLASS

Certification:

CE

Model Number:

LJZW2020

Contact Us
Request A Quote
Aluminum Spacer Bending Insulating Glass Machine 26 S Speed For Large Frame
Product Details
Name:
Automatic Spacer Bending Machine
Max.bending Size:
2000mm*2000mm
Min.bending Size:
250mm*200mm
Dimensional Error:
≤±0.5mm
Angle Error:
≤±1º
Processing Speed:
≤26s
Highlight:

glass making machine

,

double glazing glass machine

Payment & Shipping Terms
Minimum Order Quantity
One set
Price
Negotiable
Packaging Details
Container
Delivery Time
15 days
Supply Ability
10 sets per week
RELATED PRODUCTS
Good price 15m/min Automatic Low-E Glass Film Removing Machine For Glass Edge Deletion online

15m/min Automatic Low-E Glass Film Removing Machine For Glass Edge Deletion

Get Best Price
Good price High Efficiency PLC Insulating Glass Machine For Insulating Glass Processing online Video

High Efficiency PLC Insulating Glass Machine For Insulating Glass Processing

Get Best Price
Good price CE Certified Insulating Glass Machine Low Power Consumption online Video

CE Certified Insulating Glass Machine Low Power Consumption

Get Best Price
Good price Automatic Insulating Glass Machine 2500x3500mm For Glass Processing online Video

Automatic Insulating Glass Machine 2500x3500mm For Glass Processing

Get Best Price
CONTACT US
Contact Now
Product Description

Hollow Bending Insulating Glass Machine 26 S Speed For Large Aluminum Frame



Technical data



Max.bending size 2500mm*2500mm
Min.bending size 250mm*200mm
Aluminum spacer width 5.5-24mm
Dimensional error ≤±0.5mm
Angle error ≤±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm





Optional functions:

  • USB input function, read the excel format file directly etc(optional)
  • Spacer printing function(Optional)
  • Can bend aluminum spacer ,Technoform, Alupro, Thermix, warm spacer (Swisspacer) and stainless steel ( optional)
  • Automatic drill gas filling hole (Optional)

Main features :

  • Connect to ERP system (Optional)
  • Adopt Siemens PLC control system, touch screen interface
  • Japan FUJI CNC servo control system
  • Four spacer size storage units
  • Automatically cut and feed aluminum spacers
  • Auxiliary function of adjustment for bending large aluminum frame
  • Aluminum spacers are available in different sizes and sizes
  • Bend shaped spacer frames continuously
  • Separated guard board outside of bender
  • Automatically avoid the connection while bending and cutting
  • Pause and Reset device for handling equipment failures
  • Bend aluminum spacer, Technoform, Alupro and so on

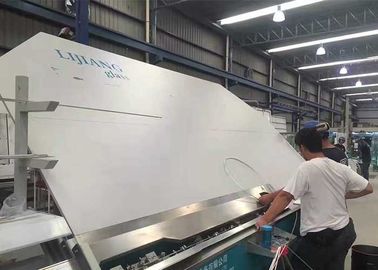

Aluminum Spacer Bending Insulating Glass Machine 26 S Speed For Large Frame 0
