Product Details:
|
| Name: | Low-e Glass Edge Deletion Machine | Max.glass Processing Size: | 2500*4500mm |
|---|---|---|---|
| Min.glass Processing Size: | 350*500mm | Glass Thickness: | 3-19mm |
| Edge Deleting Width: | 10-50mm | Glass Conveyor Speed:: | 30m/min |
| Edge Deleting Speed: | 0-15m/min | Abrasive Wheel Width: | 10/12/15mm |
| High Light: | glass making machine,double glazing glass machine |
||

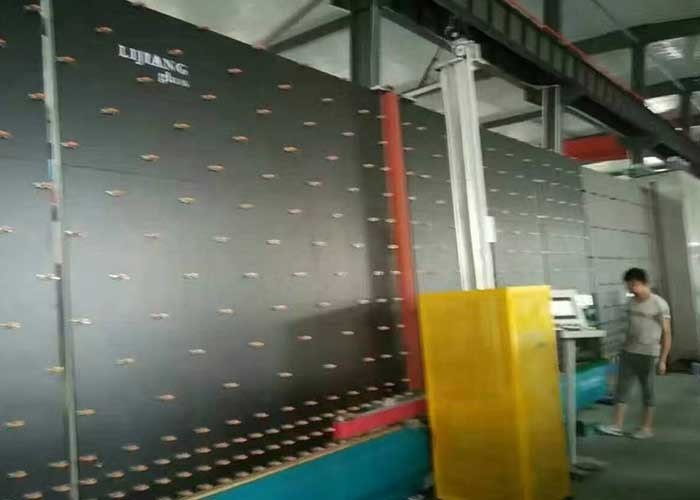

Low E Insulating Glass Machine PLC Control , Glass Edge Deletion 0 To 15 M / Min
Low-e glass edge deletion machine is used to finish the low-e glass four sides with different grinding wheels.
Technical data
| Production name | Smart glass edge deletion machine |
| Application | Smart Low-e glass edge deletion machine |
| Max glass machine | 2500*4500mm |
| Min.glass processing size | 400*400mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 2- 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 3.35KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3680KG |
Main features:
