Place of Origin:
JINAN,CHINA
Brand Name:
LIJIANG GLASS
Certification:
CE
Model Number:
LJQJ02
Main features:
1. It is used for cutting aluminum strip
2. Allowed to cut many spacers,keep high efficiency
3. It is called manual spacer bar cutting machine, the same using of spacer bending machine.
| Production name | Aluminum spacer cutting machine |
| Brand name | LIJIANG GLASS |
| Warranty time | 1 year |
| Place of origin | Jinan, China |
| Application | Insulated glass processing machinery |
| Spacer kinds | Aluminum, stainless steel, Alupro and so on |
| Power supply | 380V 50Hz |
| Spacer length | 2400mm |
| Total power | 0.55kw |
| Dimension | 5000*1050*415mm |

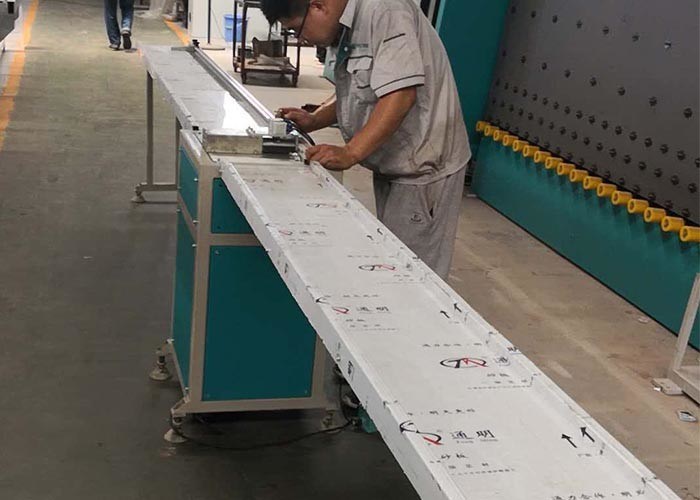

Main introduce of the semi-auto spacer bar cutting machine
This aluminum spacing bar cutting machine is the specialized equipment that cuts aluminum bars according to the fixed dimension in the production of aluminum groove type hollow glass. The cutting saw web is mounted in the middle of the aluminum spacer bar cutter. It is equipped with a fixed dimension device to be capable of moving freely. Put the aluminum spacing bars on the working table of this aluminum spacing bar cutting machine and move the locating piece to the desired length (within 2400 mm). When the cylinder is compressed, the saw can finish the cutting process automatically. This type of aluminum spacer bar cutter can adapt to cut aluminum spacing strips with the size of 6 mm to 18 mm in width and 6 mm in height.
