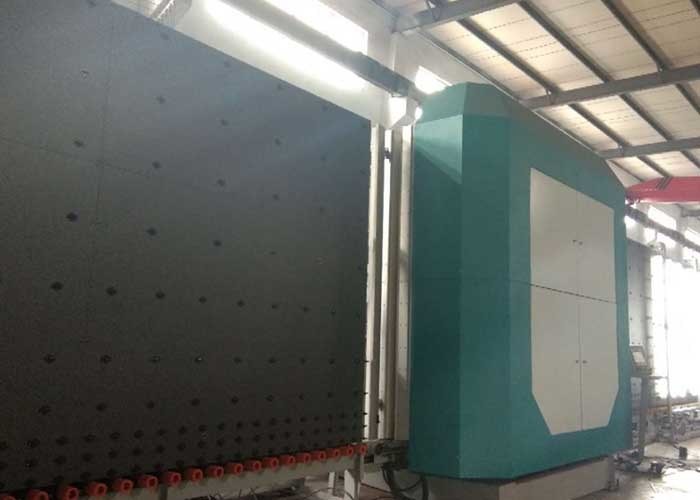

Product Details:
|
| Production Name: | Insulating Glass Production Line | Min Size: | 300mm*500mm |
|---|---|---|---|
| Max Size: | 2500mm*3500mm | Function: | Filling Argon Gas Online |
| Gas Filling Time: | 5- 6s Per ㎡ | Production Capacity: | 500 Pieces - 1000 Pieces |
| Pressing Way: | Servo Motor | ||
| Highlight: | glass making machine,double glazing glass machine |
||
Technical data
| Max.glass size | 2500*3500mm/2200*3000mm/2000*2500mm |
| Min.glass size | 280*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 48m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:≤50μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW/27KW/24KW |
| Dimension | 23500*3500*3700mm/18350*2600*3250mm/16400*2500*3100mm |
| Weight | 6500kg/6000kg/5200kg |
Part list
| Components | Brand |
| Circuit breaker | Siemens |
| Contactor | Siemens |
| PLC | Siemens |
| Touch screen | Taiwan Wenview |
| Power switch | Taiwan |
| Frequency | Dongyuan |
| Relay | Japan Omron |
| Optoelectronic switch | Korea Autonics |
| Servo motor | Japan Yaskawa |
| Pneumatic component | Taiwan Airtac |
l Adopt SIEMENS and OMRON control system, keep stable performance
l PLC control system, touch screen interface
l Automatically adjust the depth of glue with digital display
l Using servo to control system, modular function, superposition function
l Applicable to produce stepped IG, triple IG and shaped IG
Glass washing part:
Main feature:
l Automatic detect low-e & high performance glass
l Wash online and offline low-e glass, automatically recognizes Low-e film
l Washing part adopts the design of upper and lower washing sections
l Adopt variable frequency fan, energy efficient, good cleaning effect
l The air knife can automatically adjust the width of the air knife according to the thickness
l Using intelligent intermittent energy-saving working methods
l Hierarchical type washing system
l Water tank automatic temperature control, water replenishing system
l European silencer system&stainless steel drying system
Pressing robot:
Main feature:
Ultra-long insulating glass can be compressed in the second time
The machine adopts servo torque compression
The pressure plate with adjustable flat and no deformation, can guarantee long-lasting high-precision tablet
Equipped with a precisely adjustable front platen mechanism
The system can diagnose fault information
The press plate can be opened to 65mm width for easy maintenance
Applicable to produce stepped IG, triple IG and shaped IG
Gas filling parts (Optional):
Automatically filling argon gas within the plate with high, synchronous compressing glasses, to maximize the gas retention rate
When filling shaped IG, inflatable front side of the rectangular size required 450mm (length), 280mm (high)
No need to drill holes in spacer frame
Standard filling gas is Argon
Fast reacting sensor for permanent control of gas filling process
Automatically set filling data and display data on the screen
Double Gas filling & Pressing (Optional):
Main Features
Two pieces of IGU could be pressed and filled gas in once time, each IGU could fill argon gas over 90%.
Can be better prevented the pressing part to be out of shape by pressing two pieces of IGU in once time.
Filling gas into one piece of IGU only needs 22s ( 1000mm*1000mm).
Solving the problem of waiting for working on the sealing robot. Improve work efficiency highly.
Installing two spacer frames for two IGU by one workman.
Automatically measuring glass size and labeling (labeling can be allowed before pressing and after pressing) with ERP system.
From transfer part to pressing part, each part is divided.
Suitable for mass production in a factory, Ultra-fast speed.
