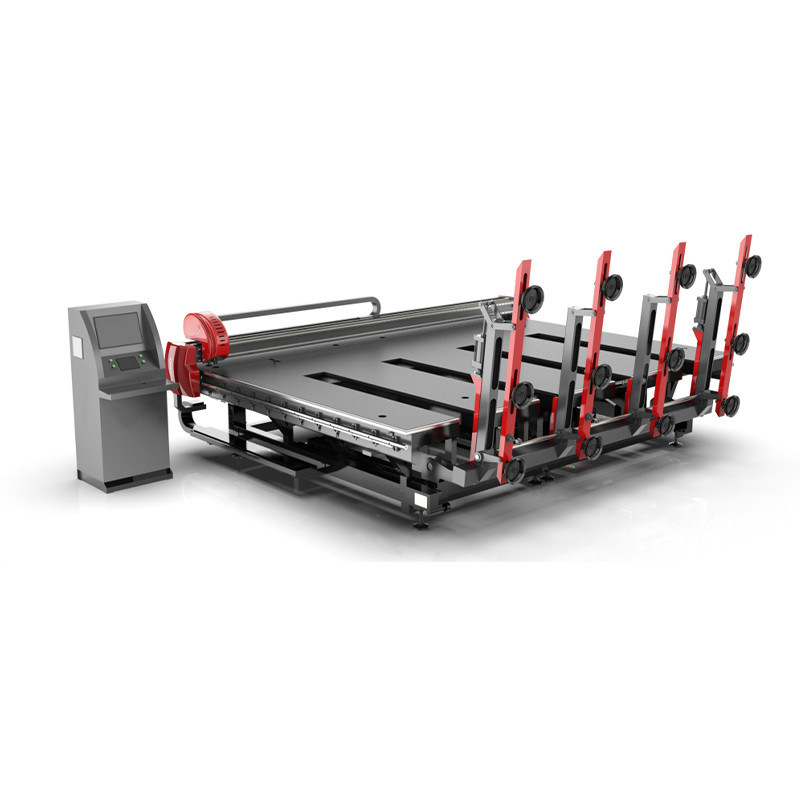

CNC Glass Cutting Machine With Cutting Table And The Breaking Table

CNC Glass Cutting Machine With Cutting Table And The Breaking Table

Main Features of the glass cutting machine :

1. Through professional structural software analysis, to ensure the stability, dynamic balance and mechanical strength of the equipment, ensure the most perfect match and prevent the workbench structure from deforming.

2. The device has a one-key reset function. Clicking on the touch screen will automatically complete all preparations before you start, greatly improving your productivity.

3. Arrange the cables and gas lines reasonably so that they completely seal.

4. The guide rail uses a high-speed silent linear guide with high cutting accuracy and low noise.

5. Double motor high speed drive (large inertia Yasukawa servo) ensures cutting speed and smoothness.

6. Conveying device, synchronous automatic transmission device, convenient for glass transmission up and down, frequency conversion speed regulation, stable, easy to optimize transmission speed.

7. Compensation function, tool eccentricity compensation, clearance compensation, pitch compensation.

8. Positioning device, photoelectric scanning positioning system.

9. The cutter head has a cutter protection function. If the cutter head falls outside the glass or glass gap, the program will automatically stop, thereby effectively preventing damage to the parts and glass.

10. The driving part adopts advanced Japanese Yaskawa servo motor, which has reliable equipment, small error and high efficiency.

11. For rice polishing, a SMC proportional solenoid valve made in Japan is used. The pressure is automatically adjusted according to the thickness of the glass. The cutter head rotates 360 degrees, and the upper and lower buffer cutters cut (straight lines and glass of various special shapes can be cut accurately).

12. After aging treatment, chassis material is welded and formed by national standard manganese containing profile bridge steel (Q345A). The comprehensive mechanical properties, plasticity and welding properties of this steel are excellent. The entire frame is processed and the tempering aging treatment significantly improves the stability and accuracy of the equipment, ensuring product stability. Rust and oxide film on the surface are removed through a special rust removal process. The top coat is sprayed with a premium epoxy primer and the top coat is sprayed with a premium automotive paint.

4.Configure

1. ,NSK Main Bearing: NSK；
2. ,Guideway: FUJUN;
3. ,Rack/Gear: RUIAN;
4. ,Table: Imported industrial felt;
5. ,Table board: waterproof high density board;
6. ,Knife wheel/holder: Bowler, Germany;

5.Technical parameter

Opti
