1 - 40mm Butyl Sealant Extruder Use For Double Glazing Production

1 - 40mm Butyl Sealant Extruder Use For Double Glazing Production
1 - 40mm Butyl Sealant Extruder Use For Double Glazing Production 1 - 40mm Butyl Sealant Extruder Use For Double Glazing Production 1 - 40mm Butyl Sealant Extruder Use For Double Glazing Production 1 - 40mm Butyl Sealant Extruder Use For Double Glazing Production

Large Image :  1 - 40mm Butyl Sealant Extruder Use For Double Glazing Production

Product Details:
Place of Origin: China
Brand Name: Lijiang
Certification: CE
Model Number: LJGZ2020
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: 6000-7000usd
Packaging Details: WOODENCASE
Delivery Time: 30-40WORKING DAYS
Payment Terms: L/C, D/A
Supply Ability: 20SET/MONTH

1 - 40mm Butyl Sealant Extruder Use For Double Glazing Production

Description
Power(W): 5KW Glass Thickness: 1-40mm
Squeeze Pressure: 10-18Mpa Name: Double Glazing Butyl Sealant Extruder For Insulating Glass Machine
High Light:

Double Glazing Production Sealant Extruder

,

40mm Butyl Sealant Extruder

,

1mm Butyl Sealant Extruder

Double Glazing 1-40mm Butyl Sealant Extruder Use For Double Glazing Production
Double Glazing butyl sealant extruder for insulating glass machine

 1 - 40mm Butyl Sealant Extruder Use For Double Glazing Production 0

LJTB01 Type Butyl Extrusion Type LJTB01 is used to spread the aluminum spacer frame evenly with hot melt butyl. The machine uses a large electrical control panel, which makes the operation easier. Aluminum conveyor is controlled by frequency converter, speed can be adjusted from 0m/min to 47m/min, which is the fastest speed in China. It is very popular for energy saving. The crimping system adopts pneumatic and hydraulic supercharging system, which makes the crimping pressure more stable. Dispensing cylinders can be easily refilled with butyl using a vertical rotating support system. It can extend the life of the crimping system and adjust the heating time within 24 hours by electric and pneumatic pressure. The distance of the press head can be automatically adjusted according to different aluminum intervals. This machine has reached worldwide technology by its features of perfect function and stable running mode.
Squeeze pressure
10-18MPa
Temperature
110~140℃
Aluminum spacer width
4-30mm
Speed
0-47m/min
Diameter of butyl cylinder
200mm
Air supply
0.4m³/min
Air pressure
≥0.6MPa
Total power
380V, 5KW, 50HZ
Dimension
2600×680×1100mm(L×W×H)
Weight
650kg
1 - 40mm Butyl Sealant Extruder Use For Double Glazing Production 1

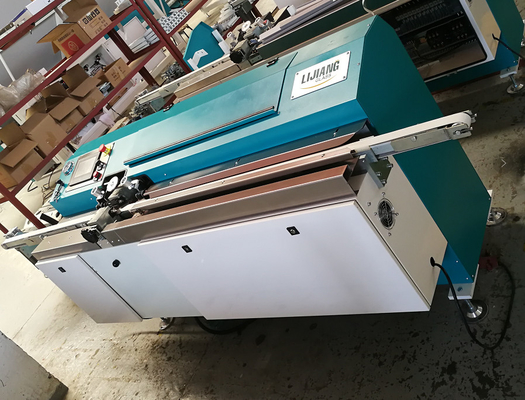

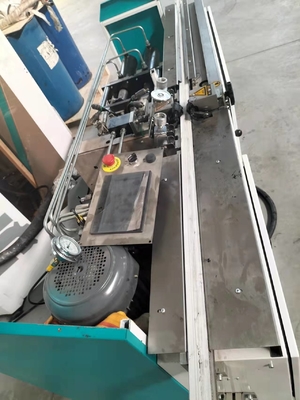

Machine Details
The automatic butyl extruder is used to evenly spread the aluminum spacer frame (and other spacers) with hot melt butyl. Butyl extrusion uses large electric control panel which can operate easier than before. The speed can be adjusted from 0m/min to 47m/min, which is the fastest speed in China so far. Butyl extruders are very popular for energy saving. The crimping system adopts German hydraulic and pneumatic supercharging system, which makes the crimping pressure more stable. Butyl extruder has reached worldwide technology with its complete function and famous spare parts characteristics.
1 - 40mm Butyl Sealant Extruder Use For Double Glazing Production 2
1 - 40mm Butyl Sealant Extruder Use For Double Glazing Production 3

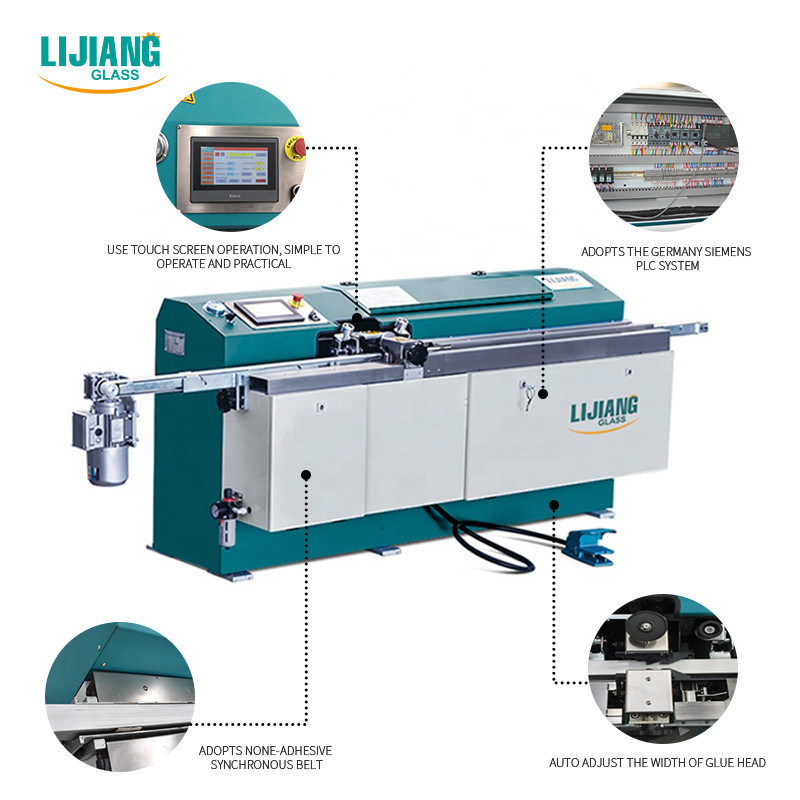

Main feature

  • PLC control system, touch screen interface
  • Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust
  • The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full
  • Fast preheat, improve work efficiency
  • with preheating function
  • With exhaust inflatable function, improve the quality of sealing and save time for plastic
  • Quickly coating speed, can up to 47m/min
  • Saving the amount of glue
