Spacer Glue Spreading Double Glazing Butyl Extruding Machine Ig Equipment

Spacer Glue Spreading Double Glazing Butyl Extruding Machine Ig Equipment
Spacer Glue Spreading Double Glazing Butyl Extruding Machine Ig Equipment Spacer Glue Spreading Double Glazing Butyl Extruding Machine Ig Equipment Spacer Glue Spreading Double Glazing Butyl Extruding Machine Ig Equipment Spacer Glue Spreading Double Glazing Butyl Extruding Machine Ig Equipment Spacer Glue Spreading Double Glazing Butyl Extruding Machine Ig Equipment

Large Image :  Spacer Glue Spreading Double Glazing Butyl Extruding Machine Ig Equipment

Product Details:
Place of Origin: china
Brand Name: lijiang
Certification: ce
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 11950
Packaging Details: containet

Spacer Glue Spreading Double Glazing Butyl Extruding Machine Ig Equipment

Description
Name: LJTB01 Butty Extruder Machine Diameter Of Butyl Cylinder: 200mm
Air Supply: 0.4m³/min Air Pressure: ≥0.6MPa
Total Power  : 380V, 5KW, 50HZ Weight: 650KG
High Light:

Double Glazing Butyl Extruding Machine

,

Glue Spreading Butyl Extruding Machine

,

Ig Butyl Extruding Machine

spacer glue spreading double glazing for butyl extruding machine ig equipment

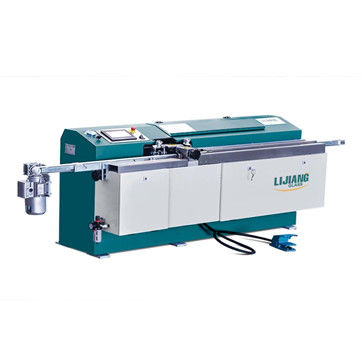

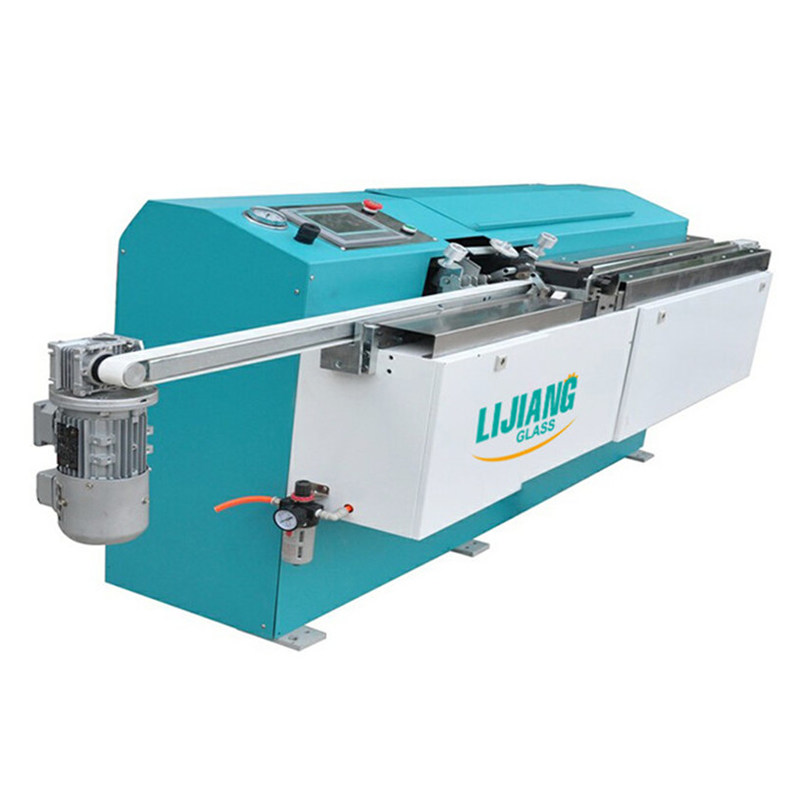

LJTB01 Butty Extruder Machine



LJTB01 butyl extruder machine use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. LJTB01 butyl extruder machine is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The LJTB01 butyl extruder machine has reached the worldwide technology with the characteristic of complete function and stable working mode.



² Technical Data of  electrical control panel



Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 4-30mm
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5KW, 50HZ
Dimension 2600*680*1100mm(L*W*H)
Weight 650kg



² Other features of extrusion coating machine

1. Filter out debris automatically through auto exhaust, keep spreading quickly and evenly.

2. Quickly speed of warming, improve work effect.

3. Adjustable coating speed, can up to 0-47m/min.

4. Can save about 40% materials, only 5g/m.

5. Extruder head height adjustment structure.

6. Automatic centering and clamping structure.

7. Stable temperature and it is convenient to adjust the sealing material automatically.

FAQ

Q: What is the system of Kation’s after sale service?

A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding customer to find the usual problem and the answer when customers meet.

Q: What is the details of the after sale service?

A: Step1: Notice before installation

Step2 : Confirm before installation

Step3: On-site installation

Step4: On-site debugging

Step5: On-site training

Step6: Client sign

Step7: On-line service

Step8: Technical service

More details please search www.lijiang-glass.com

Q: What's the payment term?

A: T/T, L/C and other payment terms could be negotiated.

Q: About this Machine,What’s the guarantee ?

A:1)Our guarantee for 12 months.

2)24 hour’s technical support by email or calling

3)English manual and video tutorial

4)We will provide the consumable parts at an agency price

5)24 hours on line service each day, free technical support.

Q:How about your warranty?

A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory

Q:Can we visit your factory before order?

A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
