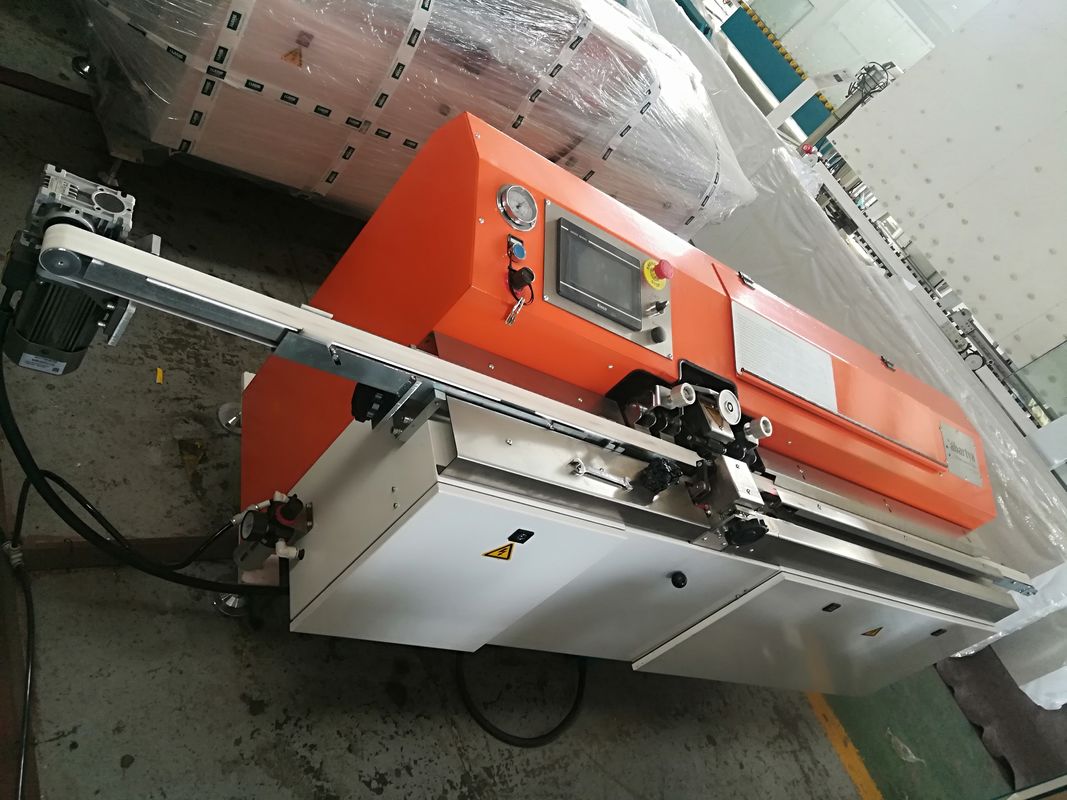

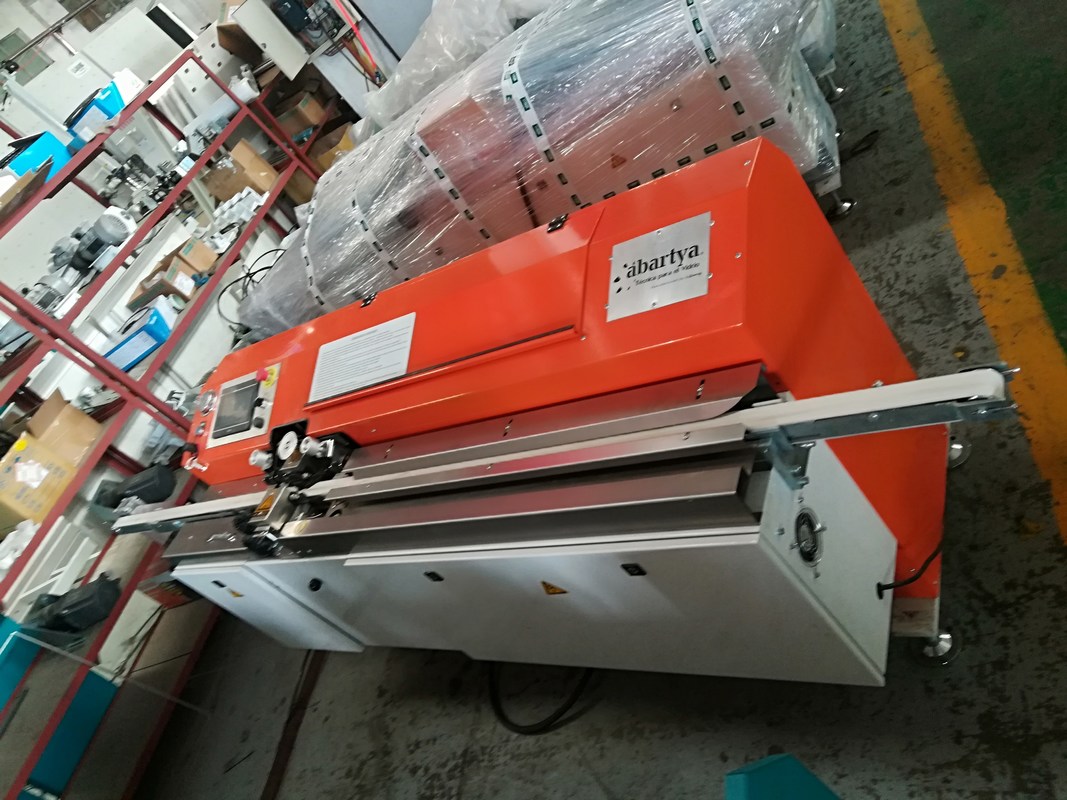

CE Automatic Butyl Machine Hot Melt Butyl Extruder Equipment For Insulating Processing

CE Automatic Butyl Machine Hot Melt Butyl Extruder Equipment For Insulating Processing
CE Automatic Butyl Machine Hot Melt Butyl Extruder Equipment For Insulating Processing CE Automatic Butyl Machine Hot Melt Butyl Extruder Equipment For Insulating Processing

Large Image :  CE Automatic Butyl Machine Hot Melt Butyl Extruder Equipment For Insulating Processing

Product Details:
Place of Origin: JINAN, CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden box
Delivery Time: 5-8 Week
Supply Ability: 40 Set per year

CE Automatic Butyl Machine Hot Melt Butyl Extruder Equipment For Insulating Processing

Description
Product Name: Butyl Extruder Machine Voltage: 3P 380V 50Hz
Power: 5.7Kw Squeeze Pressure: 10-25MPa
Temperature: 110-140℃ Glue Thickness: 0.3-0.5mm
Glue Width: 3.5mm Diameter Of Butyl Cylinder: 200mm
High Light:

CE Automatic Butyl Machine

,

CE Hot Melt Butyl Extruder

,

Insulating Processing Hot Melt Butyl Extruder



Automatic Butyl Machine With CE Hot Melt Butyl Extruder Equipment for insulating processing

Aotomatic Bulyl Extruder Machine with high quolity

Application



PLC control system,touch screen interface

Automatically adjust the amount of glue according to different speeds

Automatically identify the width of aluminum bar,accordingly glue nuzzle can adjust automatically.

Hydraulic systerm uses German components to ensurethat the glue is even and full

Fast preheat,improve work efficiency

with preheating function

With exhaust and inflatable function,improve coating quality and asve time for feeding glue

Quickly coating speed,can up to 47m/min

Squeeze pressure:10-18MPa

Temperature:110-140℃

Aluminumspacerwidth:6A-27A

Speed:5-47m/min

Diameter of butyl cylinder:200mm

Air supply:0.4㎡/min

Air pressure:>0.6Mpa

Total power:380V,5.7KW,50HZ

Dimension:2800*700*900mm

Weight:650kg

CE Automatic Butyl Machine Hot Melt Butyl Extruder Equipment For Insulating Processing 0CE Automatic Butyl Machine Hot Melt Butyl Extruder Equipment For Insulating Processing 1CE Automatic Butyl Machine Hot Melt Butyl Extruder Equipment For Insulating Processing 2

Tech parameters of Automatic hot melt Extruder Machine



Squeeze pressure 10-18MPa
Temperature 110~140℃
Glue thickness 0.3-0.5mm
Glue width 3.5mm
Aluminum spacer width 5.5-26.5mm
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5.7KW,50HZ
Dimension 2800×700×900mm(L×W×H)
weight 750kg







Equipment details of Automatic Butyl Extruder Insulating Glass machine



Germany Siemens parts



Butyl extruder machine Adopt German brand Siemens PLC, stable performance.

CE Automatic Butyl Machine Hot Melt Butyl Extruder Equipment For Insulating Processing 3

KINCO Touch Screen



Use toubh screen operation ,simple trial,Clear interface, Simple operation, Smart touch screen,Updated programming.

CE Automatic Butyl Machine Hot Melt Butyl Extruder Equipment For Insulating Processing 4





Germany HAVE Valve



High speed butyl extruder machine Adopt Germany’s Harvey valve, more stable performance.

CE Automatic Butyl Machine Hot Melt Butyl Extruder Equipment For Insulating Processing 5



Alarm system



Adopt Automatically alarm system, reminding adding butyl.

CE Automatic Butyl Machine Hot Melt Butyl Extruder Equipment For Insulating Processing 6



Glue cylinder

The rubber cylinder adopt the pull-up structure, which is convenient for changing butyl.

CE Automatic Butyl Machine Hot Melt Butyl Extruder Equipment For Insulating Processing 7



Germany Maximator Cylinder

Super charging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.

CE Automatic Butyl Machine Hot Melt Butyl Extruder Equipment For Insulating Processing 8

Adjust the glue putput automatically according to the speed change



The height adjustment of beam is convenient,effective to solve the provlem of white line

CE Automatic Butyl Machine Hot Melt Butyl Extruder Equipment For Insulating Processing 9

Other product of LIJIANG GLASS





Spacer Bending Machine With Aluminum Bars And Warm Bars

Application

The full automatic spacer bending machine is used for making frames ( or other materials) for insulating glass, which replaces the traditional fabrication technology. The Automatic Spacer Bending Machine With Aluminum Bars And Warm Bars can make a variety of convex polygonal aluminum frames by one aluminum strip in one time. The bending machine is available to bend aluminum bars, stainless steel bars, warm bars and thermex and so on. Also on the bending mahcine, also contains printing code , printing label , drilling holes and USB, machine hand for support big frame

Equipment details

  • Adopt Siemens PLC control system, touch screen interface
  • Japan FUJI CNC servo control system
  • Four spacer size storage units
  • Aluminum spacers are available in different sizes and sizes
  • Automatically cut and feed aluminum spacers
  • Bend shaped spacer frames continuously
  • Automatically avoid the connecting corner while bending and cutting
  • The special machine hand device is used to bend big spacer frame
  • Heavy duty connectors is convenience and safety for installation and debugging
  • Taiwan Airtac Magnetic valve; German Siemens PLC control system; Japan Fuji servo control system.
  • Spare parts of all machine have ID codes.
  • Precise bending effect, corner error less than 0.1mm.

Leading Technology

  • Spacer printing code function (Optional)
  • Automatic drill gas filling hole (Optional)
  • Printing label sticker function (Optional)
  • USB input function, read the excel format file directly etc (Optional)
  • Connect to ERP system (Optional)
  • Can bend aluminum spacer ,Technoform, Alupro, Thermix, warm spacer (Swisspacer) and stainless steel ( Optional) and so on.
  • We have the special soft system which could avoid the 120mm to reduce waste. For example, if the length of the gusset is 60mm, when the program calculates the right angle, there is a gusset. When you start to bend the rectangular frame, you need firstly transport 120mm, then cut 120mm, and then step on the pedal to bend frame, so you will waste the 120mm.

Technical data

Max.bending size 2000mm*2000mm (2500mm*2500mm)
Min.bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm

Electrical parameters

NAME BRAND NAME BRAND
PLC GERMAN SIEMENS Triplet Taiwan AIRTAC
Low voltage electrical apparatus GERMAN SIEMENS Cylinder Taiwan AIRTAC
Servo motor JAPAN FUJI Solenoid valve Taiwan AIRTAC
Servo driver JAPAN FUJI Switch power Taiwan TEND
Relay JAPAN OMRON TOUCH SCREEN Taiwan WEINVIEW
Sensor KOREA AUTONICS GUIDE Taiwan TBI



CE Automatic Butyl Machine Hot Melt Butyl Extruder Equipment For Insulating Processing 10CE Automatic Butyl Machine Hot Melt Butyl Extruder Equipment For Insulating Processing 11CE Automatic Butyl Machine Hot Melt Butyl Extruder Equipment For Insulating Processing 12
