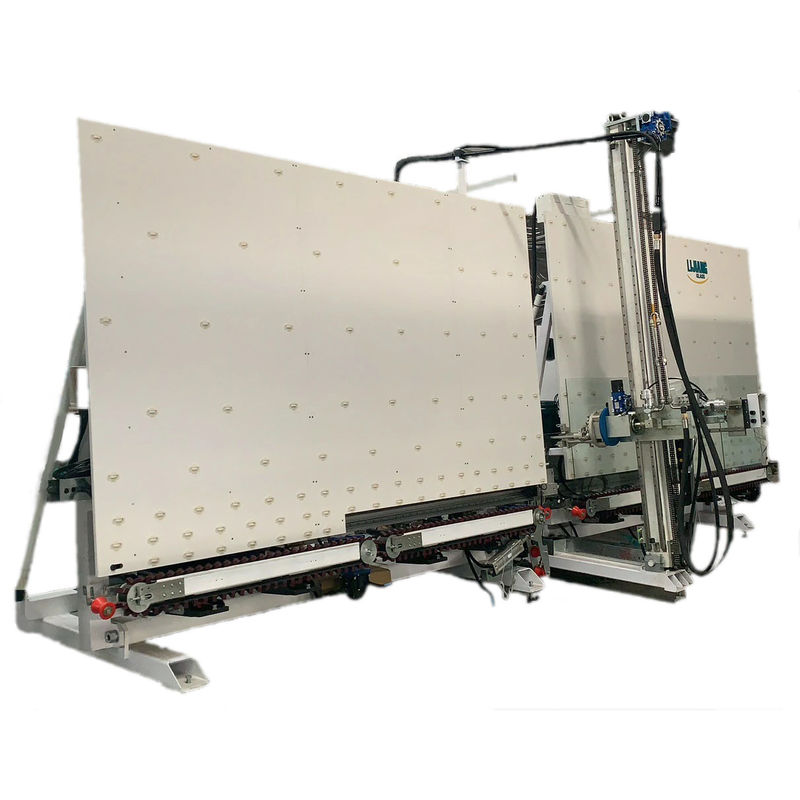

Product Details:
|
| Name: | Vertical Insulating Glass Sealing Robot | Max.glass Size: | 2000*2500mm |
|---|---|---|---|
| Min.glass Size: | 170*400mm | Glass Thickness: | 12-56mm |
| Working Speed: | 5-40m/min | Air Pressure: | 0.6-0.8MPa |
| High Light: | Vertical Insulating Glass Sealing Robot,Hollow Insulating Glass Sealing Robot,Hollow Glass Sealant Sealing Machine |
||
l Min & Max glass sizes can be optional
l Adopt 8 servo motors
l Adopt Japan ANCHUAN servo control system with stable performance
l Automatically measure glass size, glue depth and glue speed with linear adjustment
l Adopt timing belt to keep smooth convey with accurate position
l Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
l The glass corners are full without air bubbles, smooth surface, no need to
l Full automatic and high-efficiency machine
l New scraper design, especially for making train IG with very even sides and corners, without any bubbles.
l Automatically repair glass corners with beautiful surface
l Smooth convey without scratch and pollution
l Single-function parts are equipped with manual functions, easy adjustment

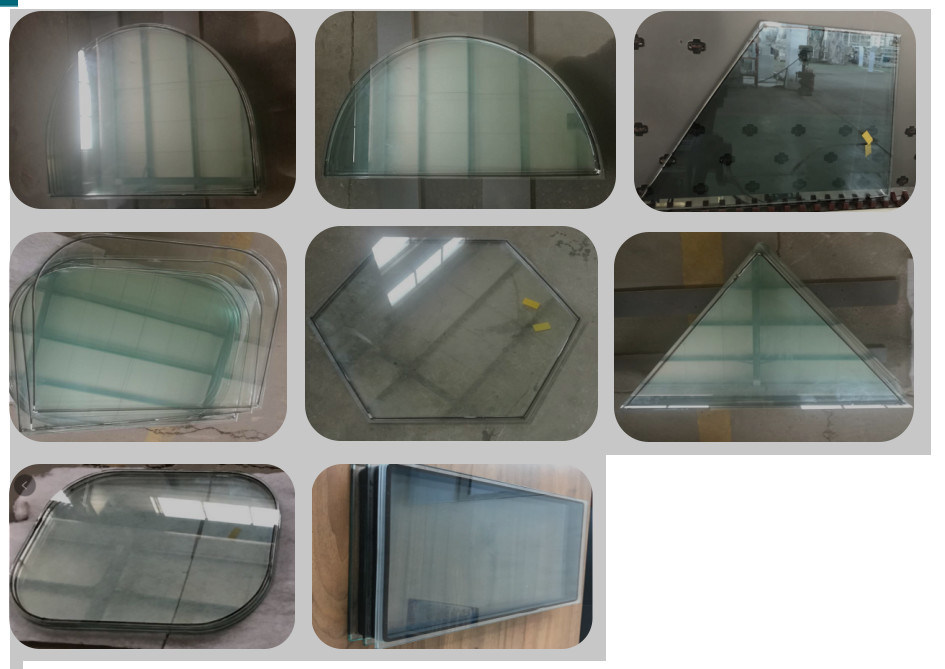

l Shaped IG units (Optional)
l Stepped IG units with four sides (Optional)
l Double and Triple IG units
| Max.glass size | 2000mm |
| Min.glass size | 170mm*400mm (2000mm machine) |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | <350kg/m³ |
| Plane angle | 6°- 9° |
| Max glass weight | 400kg |
| Voltage power | 380V 12kw |
| Overall dimension | 8700mm*2000mm*3500mm |
Main components list of automatic sealing robot equipment
| Name | Brand |
| Switch | SIEMENS |
| Servo motor | Japan YASKAWA |
| I/O model | Japan MSYSTEM |
| Lower voltage component | Siemens |
| CPU | Japan YASKAWA |
| Frequency converter | Japan OMRON |
| Switching power supply | Taiwan MW |
| Pneumatic component | Japan SMC |
| PLC | Siemens |
| Guideway | Siemens |
FAQ of 2019 High quality insulating glass sealing robot supplier
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you
within 24 hours and help you to repair your problem controller freely, even it's not from our factory
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and
pick up you from airport.
Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days
after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
