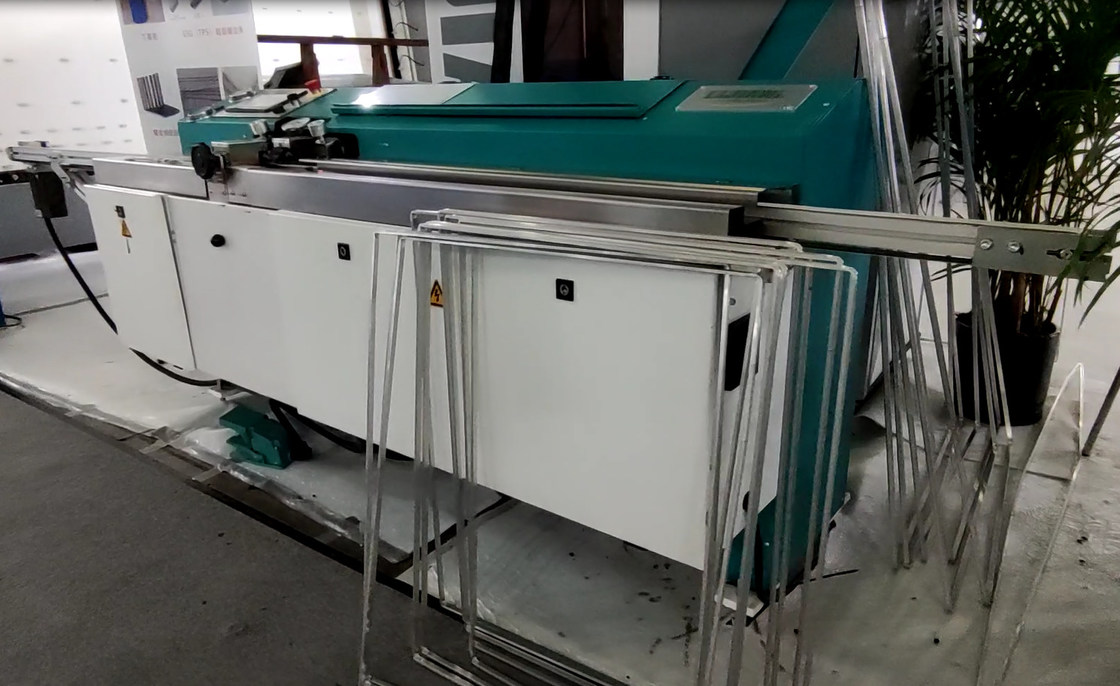

Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine

Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine
Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine
Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine

Large Image :  Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine

Product Details:
Place of Origin: China
Brand Name: Jinan Lijiang Glass Machinery
Certification: CE & ISO9000
Model Number: LJTB01 Butyl Extruder Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Discussible
Packaging Details: Wooden Cases Package and Container Transfer
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now

Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine

Description
Voltage: 380V 50HZ After-sales Service Provided: Engineers Available To Service Machinery Overseas
Weight: 500kg Product Name: Insulating Glass Making Machine Butyl Extruder Machine
Warranty: 12 Months Squeeze Pressure: 12~16Mpa
Conveying Speed: 0-30m/min Extruding Pressure: 110-160℃
High Light:

Aluminum Spacers Butyl Extruder Machine

,

Double Glass Butyl Extruder Machine

,

Aluminum Spacers Extrusion Coating Machine

Support Customization Automatic Insulated Glass Aluminum frame without pressure relief Butyl Extruder Machine on Sale

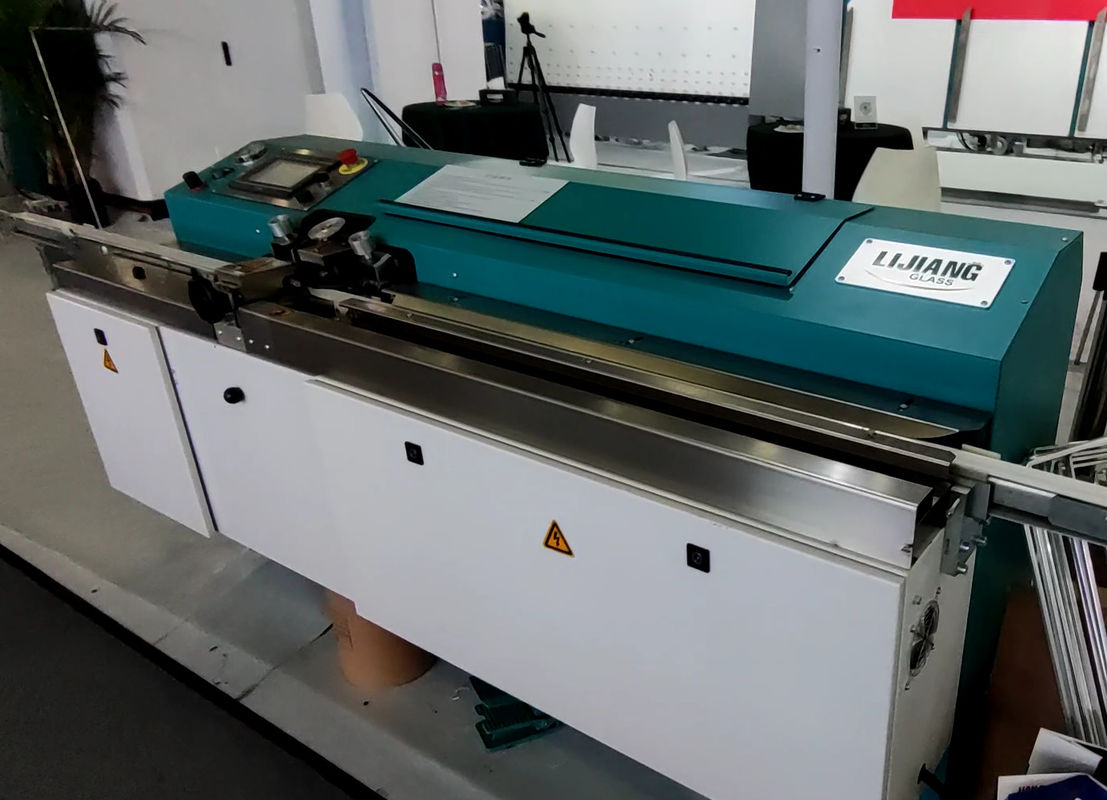

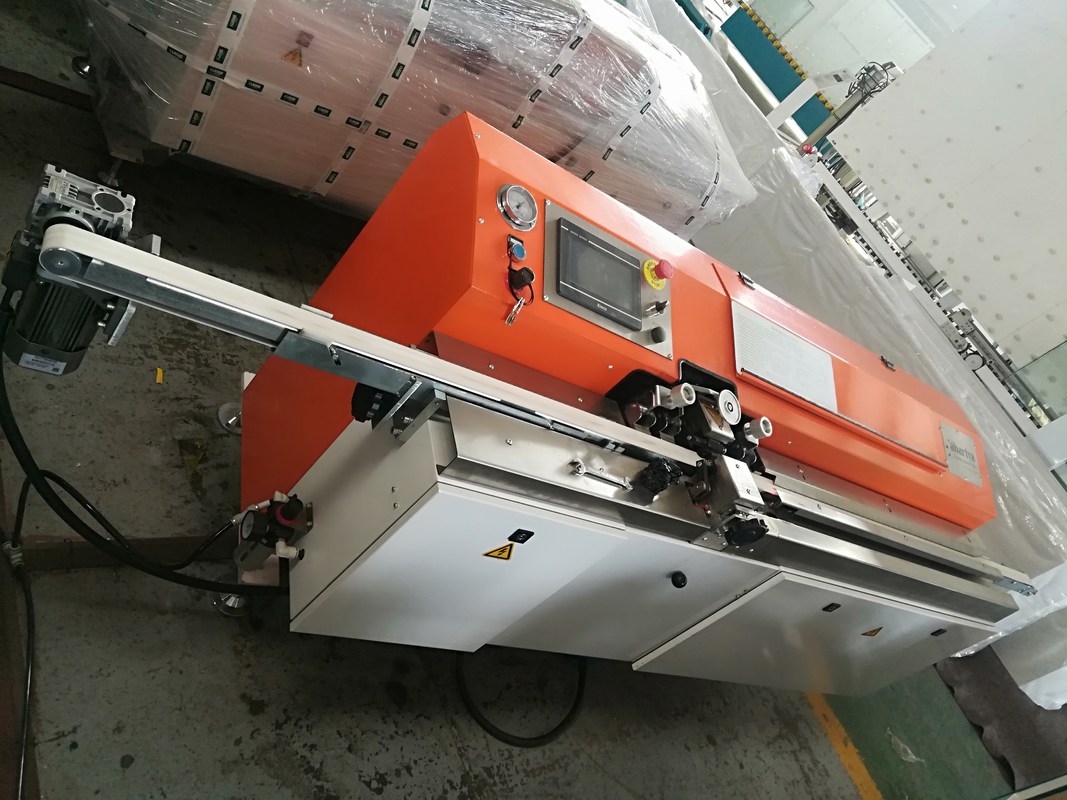

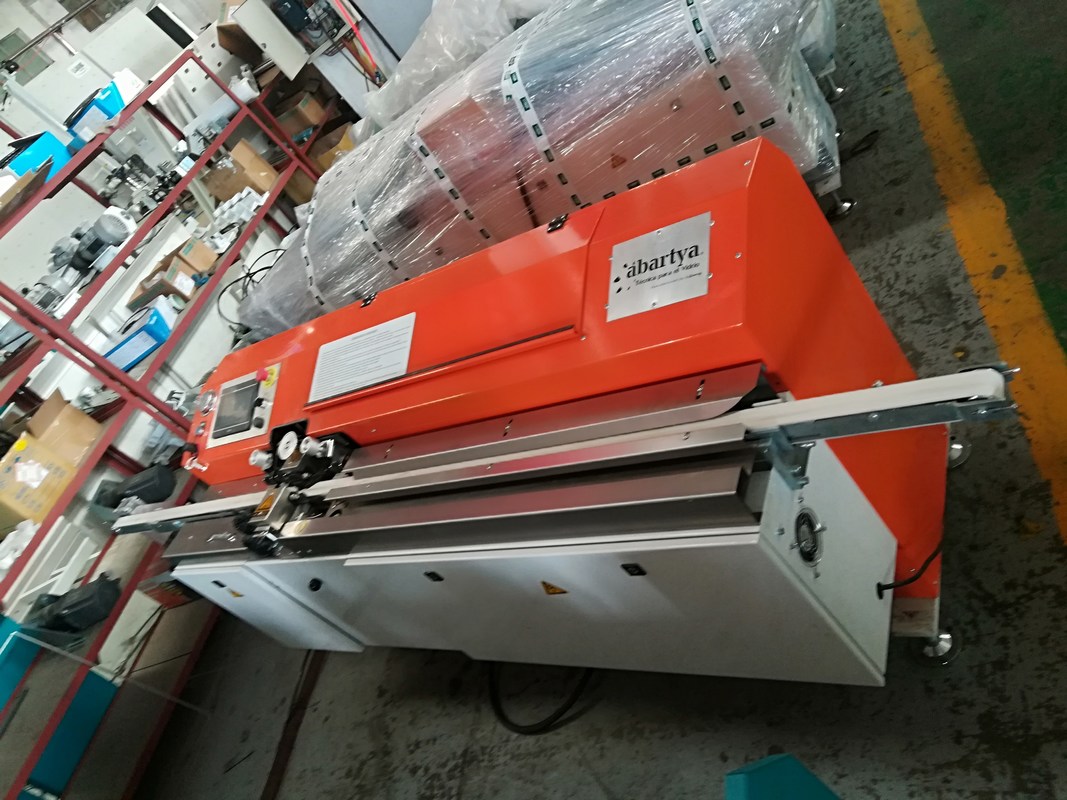

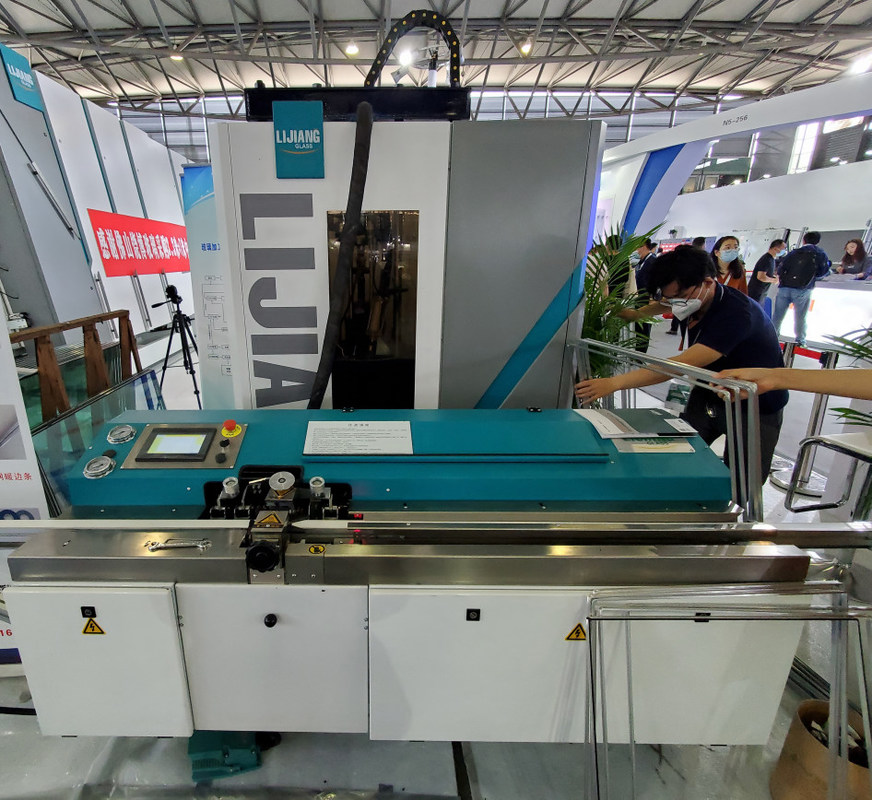

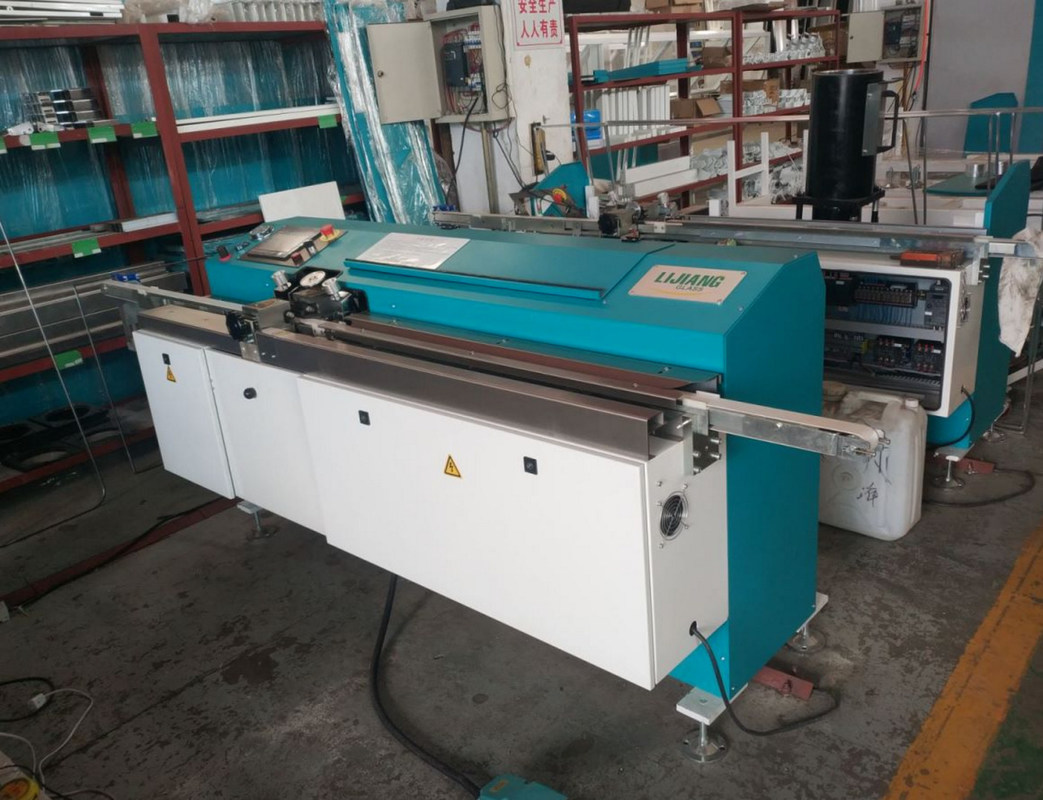

The Application of LJTB01 Butyl Extruder Machine

1. Touch-screen operation, simple and practical

2. Auto-measure the width of spacer, nozzle automatic positioning

3. Auto-centering and auto-clamping

4. The bigger wheel help to coat the arc frame

5. Coating nuzzle is Teflon brand ,non-stick coating

6. The coating speed is up to 47m/min,saving materials up to 30％,( 5g/m)



7. The crossbeam height is easy to adjust,we can control the height of butyl

8. The special part controls both sides of nozzle opening and closing at the same time

9. Alarm device when use out of butyl and easy to load butyl

10. Pre-heading function,set a regular time before working time

11. Glue cylinder Adopt the upright structure, easy to change butyl.

12. Automatic filter function Automatically filter debris, keep spreading evenly.



13. Hydralic and Pneumatic supercharging pump ,German MAXIMATOR brand

14. Pressure release valve German HAWE brand ,high pressure resistance ,keep the butyl well proportioned

15. Pneumatic component Taiwan Airtac

16. Japan OMROM Relay

Advantages & Features
Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 0
Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 1
Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 2
Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 3
Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 4
Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 5
Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 6




Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 7



The rubber head
The rubber head is a floating soft connection, vertical movemnet, automatic guiding, uniform force around the rubber cylinder and the pistion, and overcomes the defects of easy wear of the bottom of the horizontal rubber cylinder.
Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 8



The Germany Siemens PLC system
The whole machine adopts the Germany Siemens PLC system, handle-machine interface operation, automatic and accurate glue application and multi-speed section adjustment, high production efficiency.
Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 9



The stainless steel work surface
It is made of stainless steel work surface and equipped with positioning device. And it is suitable for profiled, rectangular and round aluminum frames of various specification.
Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 10



Could produce the special sharps
It can be folded into triangles, rectangular shape, positive five-square shapes, regula hexagonal shapes, and arc shapes.
Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 11



The hydraulic system
The whole machine is divided into hydraulic system and gas-liquid system boosting work, ensure that the glue is extruded evenly and the glue is stable during the extrusion processing.
Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 12Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 13Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 14Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 15

Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 16



The large hydraulic station struction
The large hydraulic station struction uses Japanese brand research technology, and components to provide stable pressure.

Main Technical Parameter
Item.
Spec.
Coating speed
5-47m/min
Aluminum spacer size
4-30mm
Supply sealant pressure
<100kg/cm2
Power
5KW
Air source
≥0.6MPa
Dimension
2600mm*680mm*1100mm
volume of butyl approx.
7.5L
Name
Brand
Low voltage electrical apparatus
Germany SIEMENS
Hydraulic and pneumatic supercharging system
Germany MAXIMATOR
Pressure relief valve
Germany HAWE
Frequency converter
KINCO
PLC
KINCO
Pneumatic components(cylinder,valve)
ARTAC
Quick exhaust valve,Vacuum generator
Japan SMC
travel light
Japan OMRON





Desiccant Filling Machine

Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 17

  • Rectangle can be filled.
  • Arc frame can be filled (OPTIONAL FUNCTION)
  • Germany Siemens PLC control system
  • Auto drilling, filling and sealing , easy and simple operation.
  • The mechanical height & Filling time can be adjusted according to the spacer frame size
  • Molecular automatically loading and replenish .
  • Easy and safe for adding glue.
  • Protection device for machine head
  • Touching screen interface, simple and visible
  • All spare parts & electrical wires have ID Number for offering the convenience in after sales service

OPTIONAL FUNCTION

  • Big bucket desiccant 200L,save desiccant refill time ,improve the work efficiency
  • Adopt vacuum pump loading device ,increase the loading speed
Name Brand
PLC German SIEMENS
Low voltage electrical apparatus German SIEMENS
Sensor Korea AUTONICS
Triplet TAIWAN AIRTAC
Solenoid valve TAIWAN AIRTAC
Gas driller Taiwan BOA
Switch power Taiwan TEND
Guide Taiwan TBI

Main technical parameter



Filling aluminum frame’s maximum size 2500mm*2500mm
Filling aluminum frame’s minimal size 300mm*250mm
Article aluminum specifications 5.5-24mm
Air source ≥0.65MPa
Power supply and power consumption AC220V 50Hz 1.8KW
Molecular sieve diameter needed 0.5-0.9mm
Dimension 1300mm*1100mm*3650mm





Aluminum Spacer bending machine



Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 18



l 1*1m spacer frame was bend around 17s.

The error of spacer frame angle is within 0.1mm.



l Can bend aluminum spacer /technoform /Alupro /thermix/

l Spacer automatically connect and cut.

l Machine automatically stop when the spacer use up.

l Support continuous bending , automatically avoid spacer connection while bending and cutting

l Automatically connect the spacer -connector



l Remote control function

l USB input function ,it can read the excel data directly

l Spare parts of all machine have ID code ,convenient for after-sale service



l Heavy duty connectors ,convenience and safety for installation and debugging

l Magnetic valve use Taiwan Airtac

l German Siemens plc control systerm

l Japan Fuji servo control system



l 12 storage spacer units (option)

l Swisspacer/ Stainless Steel /Allmetal Stainless Steel /option)

(Stainless steel and warm edge spacer can not exist at one time )

l Drill hole for gas filling(option)

l Spacer inkjet printing ,various color is available for company logo or production date(option)

l Laber printing (option)

l Scanner scan two-dimension code ,bar code (option)

l Separate Pressing Wheel for arc frame, more accurate than the bending tool

Especially for Hexagon and Octagon frame (optional )

l ERP (optional)







Main technical parameter

Max.bending size 2000*2000mm
Min.bending size 250*200mm
Aluminum spacer width 6-27A
Arc Radius 60°-150°
6A-16A
Dimensional error: ≤±0.5mm
Angle error ≤±1º
1m*1m aluminum spacer 17s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm

Spacer Bending machine main components

NAME BRAND
PLC GERMAN SIEMENS
Low voltage electrical apparatus GERMAN SIEMENS
Servo motor GERMAN SIEMENS
Servo driver GERMAN SIEMENS
Relay JAPAN OMRON
Triplet Taiwan AIRTAC
Cylinder Taiwan AIRTAC





Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 19Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 20Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 21Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 22Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 23Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 24Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 25Double Glass Aluminum Spacers Butyl Extruder Machine Extrusion Coating Machine 26
