2000*2500mm Glass Washing And Drying Machine For Processing Insulating Glass

2000*2500mm Glass Washing And Drying Machine For Processing Insulating Glass
2000*2500mm Glass Washing And Drying Machine For Processing Insulating Glass
2000*2500mm Glass Washing And Drying Machine For Processing Insulating Glass 2000*2500mm Glass Washing And Drying Machine For Processing Insulating Glass 2000*2500mm Glass Washing And Drying Machine For Processing Insulating Glass 2000*2500mm Glass Washing And Drying Machine For Processing Insulating Glass 2000*2500mm Glass Washing And Drying Machine For Processing Insulating Glass 2000*2500mm Glass Washing And Drying Machine For Processing Insulating Glass

Large Image :  2000*2500mm Glass Washing And Drying Machine For Processing Insulating Glass

Product Details:
Place of Origin: Jinan China
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJBQX2000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wrapping film
Delivery Time: 30days
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month

2000*2500mm Glass Washing And Drying Machine For Processing Insulating Glass

Description
Name: Glass Washing Machine Materials: Stainless Steel
Brushes: 3Pairsof Soft Brushes Glass Size: 2000*2500mm
Air Knife: Can Be Adjusted Brand: Lijiang Glass (Jinan, China)
High Light:

2000*2500mm Glass Washing And Drying Machine

,

Insulating Glass Washing And Drying Machine

,

2000*2500mm vertical glass washer

Automatic Vertical Glass Washing Machine

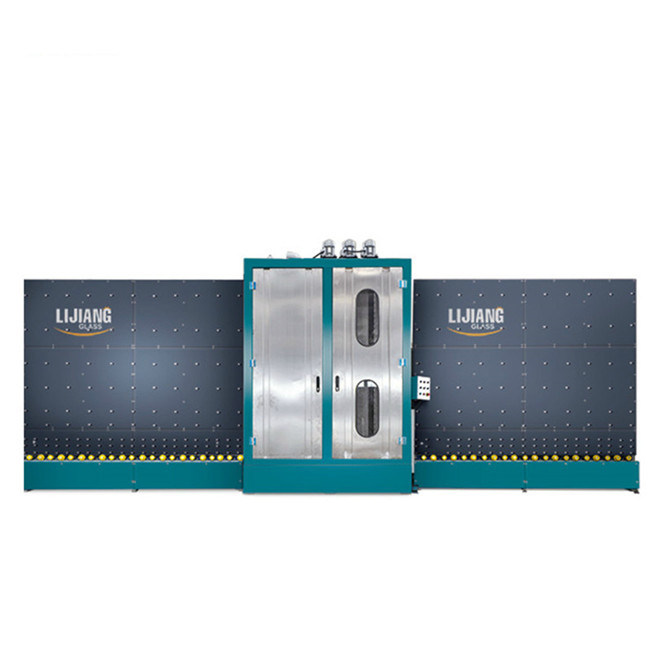

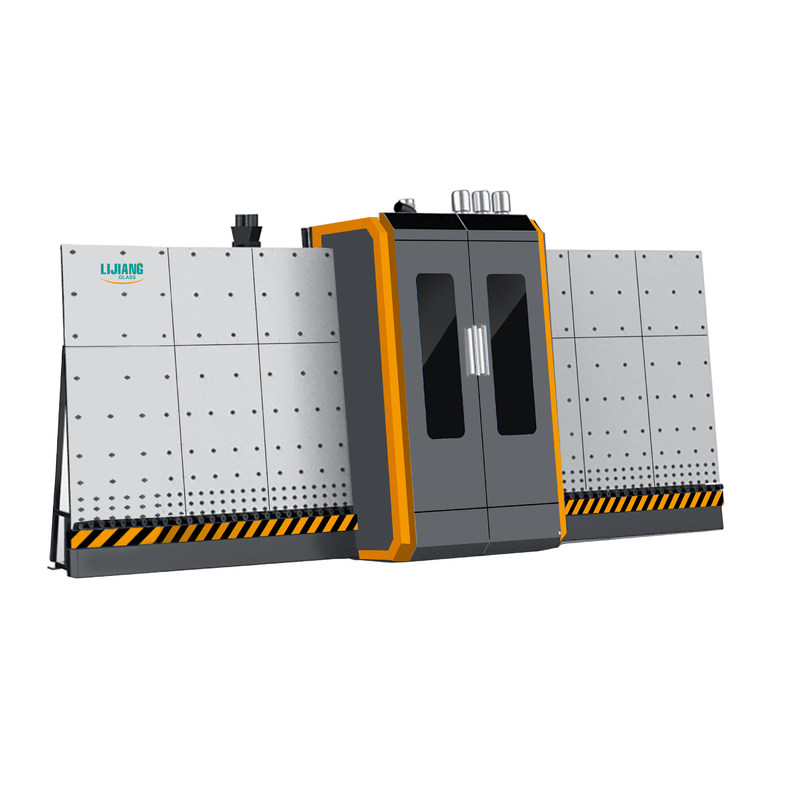

LJBQX glass washing machine is a vertical washing machine, used for washing all kinds of glass, Low-E glass. The washing machine is divided into three sections, 01 transfer section, 02 washing and drying section, and 03 inspection transfer section. The washing machine has a low-e film detection function, and the Low-E film can be detected by the coating detection mechanism. The brushes are all soft brushes. The wind knife can be adjusted according to different glass sizes. High-speed washing is clear. The washing speed can be directly displayed on the touch screen.

Details introduce of the glass washing machine

01 transfer section

Coating detection mechanism, automatic detection of offline Low-e film

                                   2000*2500mm Glass Washing And Drying Machine For Processing Insulating Glass 0

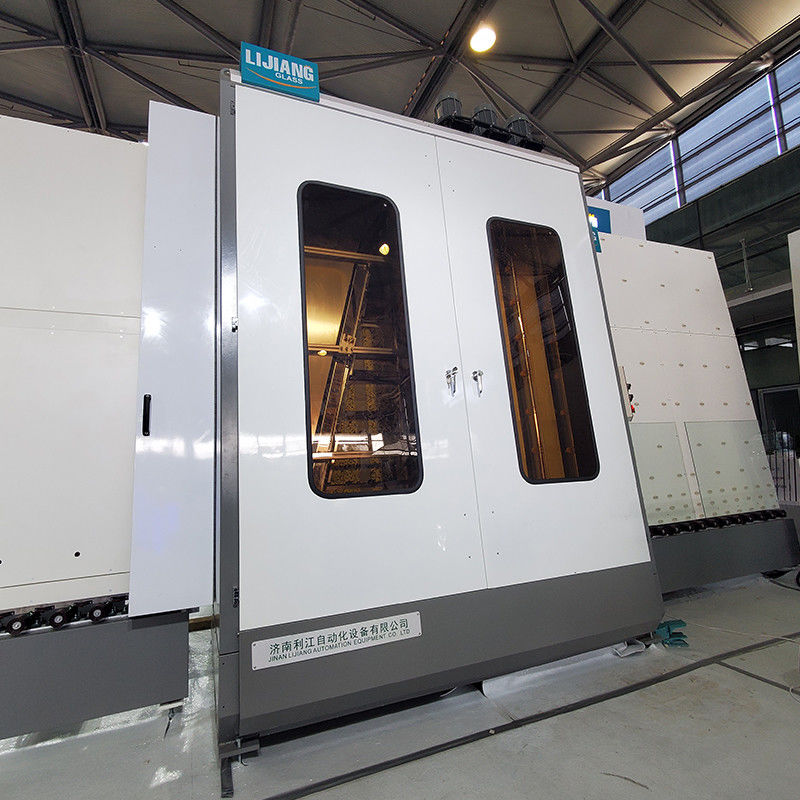

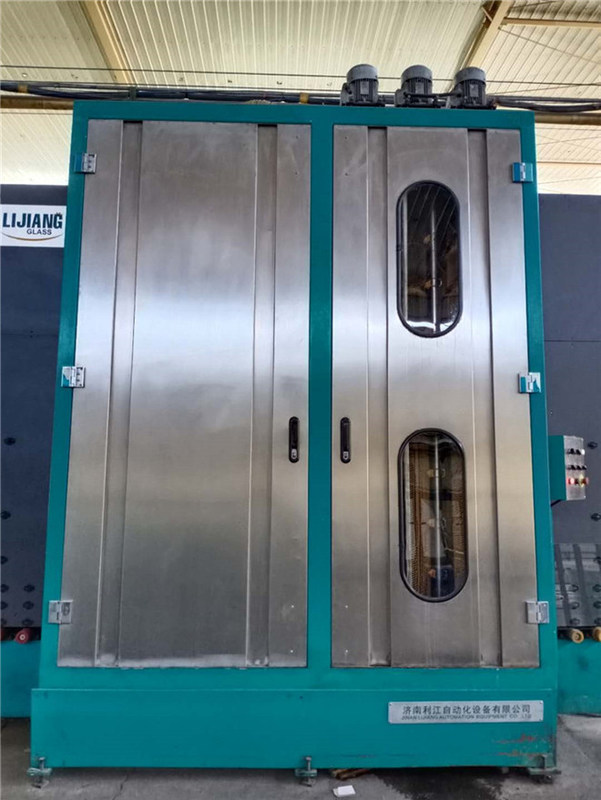

02 washing and drying machine

                        2000*2500mm Glass Washing And Drying Machine For Processing Insulating Glass 1

Main feature:

• Clean low-e glass with 6 0.1mm soft bristles and soft bristles
• Pre-cleaning (optional)
• The new air knife adopts an aluminum profile (Duckville air knife), and the size of the exhaust port is adjusted by the aluminum profile Duckville. This reduces the number of adjusting screws, prevents each screw from loosening, and avoids air knife resonance.
• The air knife can automatically adjust the width of the air knife according to the thickness
• The operation box with the cleaning speed display can accurately display the cleaning speed (8-10m).
• Automatic temperature control and water supply system for water tanks
• European noise reduction system
• Stainless steel material

03 checking and discharge section

• Using LED lights to check if the glass is washed clean or not, if the glass is not clean, it will alarm.

Main specification:

Max glass size : 1800*2000mm / 2000*2500mm/  2500*3500mm (can be optional)

Min glass size : 400*280mm

Glass thickness: 3 - 18mm

Glass with low-e film : Yes

Numbers of brushes : 6 pieces

Brushes' quality: soft brushes ( can wash low-e glass) with 0.1mm diameter

Brushes' motors: 3 motors

Air knife: adjustable

Washing speed : winter 6 - 7m,  sumer 8 - 10m

Front and rear Pushing wheels: with power

Washing speed : can be displayed on the screen

Warranty: one year

Machine brand: LIJIANG GLASS

Country of original: Made in Jinan, China



Max. glass size 2000mm*2500mm
Min. glass size 280mm*450mm
Glass thickness 3-15mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs of soft brushes with 0.1mm hair
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Total power 18kw



Related Product of LIJIANG GLASS

Horizontal Glass Washing Machine With 2500Mm Width Or 2600Mm Width



CP-2500A (12 m/min) glass washing machine technical parameters

1, USES:

glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.

2, Structural characteristics:

1. Aluminum alloy assembly structure, no scrap concept, permanent use,
High efficiency, energy saving of 70% efficiency.

2. All remaining sheet metal parts are made with advanced mechanical spray

Paint or powder;

3. The rubber roller uses vulcanized rubber and stainless steel shaft.

4. The cleaning part that comes in contact with water is made of stainless steel.

5. In the cleaning department, the wind staff lifts up and down as a whole. The maximum lift is 350 mm, which is convenient for cleaning and maintenance.

6. Three pairs of brushes (Ø150mm) stainless steel shaft construction (Low-E glass, regular coated glass, daylight coated glass can be cleaned without damaging the coated surface).

7. Two sets of special stainless steel aluminum alloy air knife configuration, strong wind, good drying effect, with heating system (with temperature control, opening and closing is optional).

8. The fan is equipped with an air filter in the air inlet chamber, which has a large amount of air and has a good air drying effect. The entire windbox is located at the top of the workshop and has air filters on the sides for easy inspection and cleaning.

9. The main drive gear is driven by frequency conversion and digital display. The rotation of the brush roller in the cleaning section is driven by the independent belts of the upper and lower motors. With stable frequency conversion speed adjustment and long service life, it is possible to clean special glass that is in high demand.

10. Mechanical button control, washing machine digital display, easy operation, easy operation, and convenient maintenance.

11. The washing machine's aquarium is installed outdoors, which is convenient for cleaning, replacing and inspecting the aquarium, and the washing effect of the washing machine will be cleaner.

12. PLC control and touch screen display are optional, convenient for operator operation and maintenance, and can be tightly connected to edge grinders from various manufacturers. (Must be purchased separately)

3, Technical parameters:

1. Maximum glass width: 2500mm (effective maximum: 2650mm)

2. Minimum glass specifications: 400 mm x 400 mm (limited to left and right single rows)

3. Glass thickness: 3mm-25mm (digital display)

4. Speed range: Glass thickness is 3-25mm Vmax = 1-12m / min

5. Main drive and electric brush speed adjustment mode: Frequency conversion speed adjustment

6. Workbench height: 900 ± 25mm

7. Total power: 42KW (Flood control air heat: 15KW)

8. Water sources: self-circulating, tap water (according to private water standards), and deionized water supplements (deionized water equipment must be provided by the purchaser)

9. Power supply: 380V 50Hz

10. Dimensions (length x width x height): Approximately 6260 x 4800 x 3100

11. Weight: Approximately 3940kg



Maximum glass width 2500mm (effective maximum: 2650mm)
Minimum glass specification 400mm×400mm (limited to single row on left and right sides)
Glass thickness 3mm-25mm (digital display)
Speed range glass thickness within 3-25mm Vmax=1-12m/min
Main drive, brush speed regulation method frequency control
Table height 900±25mm
Total power 42KW(water-bearing wind heating: 15KW)
Water source self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)
Power source 380V 50Hz
Dimensions (length × width × height) approximately 6260*4800*3100
Weight 3940kg

4, Origin of motor and main accessories:

Main drive motor Zhejiang province
Brush motor Zhejiang province
High pressure air blower Guangdong province
The water pump Shanqing
brush Anhui province
Rubber roller Guangdong province
Frequency converter VEICHI/Rexroth
Electric parts Schneider
