Product Details:
|
| Machine Name: | Butyl Extruder Machine | Glue Barrel: | 7 Kg |
|---|---|---|---|
| Working Speed: | 47m/s | Warranty: | 1 Year |
| Heating Time: | Less Than 15 Mins | Power: | 5.7Kw |
| Glue Width: | 3.5mm | Aluminum Spacer Width: | 5.5-26.5mm |
| High Light: | Automatic Butyl Sealant Extruder,Big Barrel Butyl Sealant Extruder,Big Butyl Barrel silicone extruder |
||
Automatic butyl sealants extruder machine with big butyl barrel

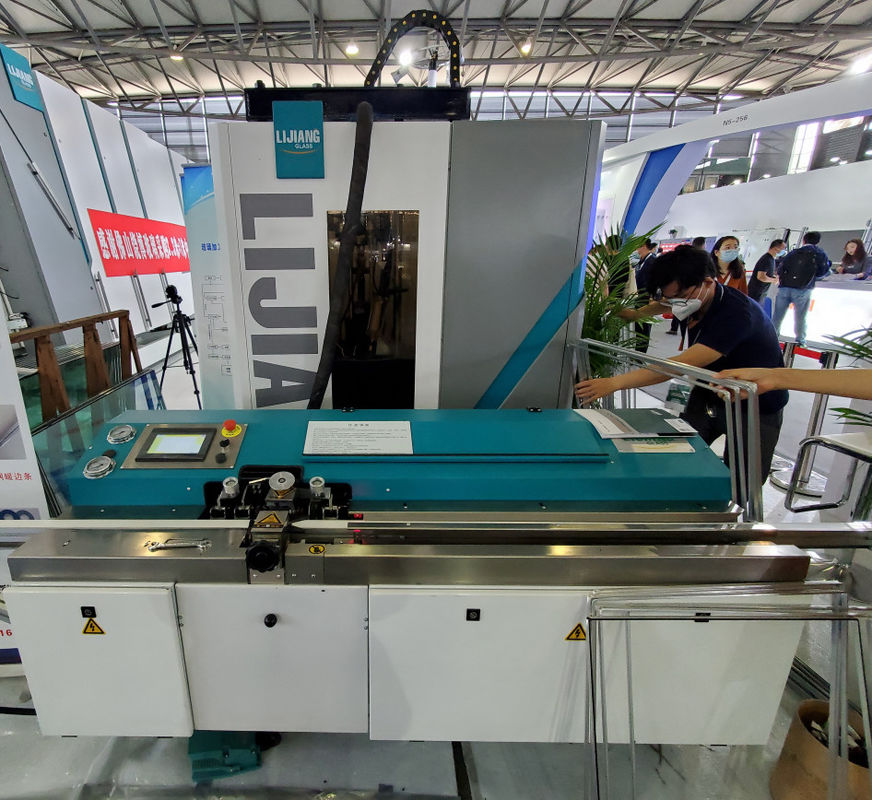

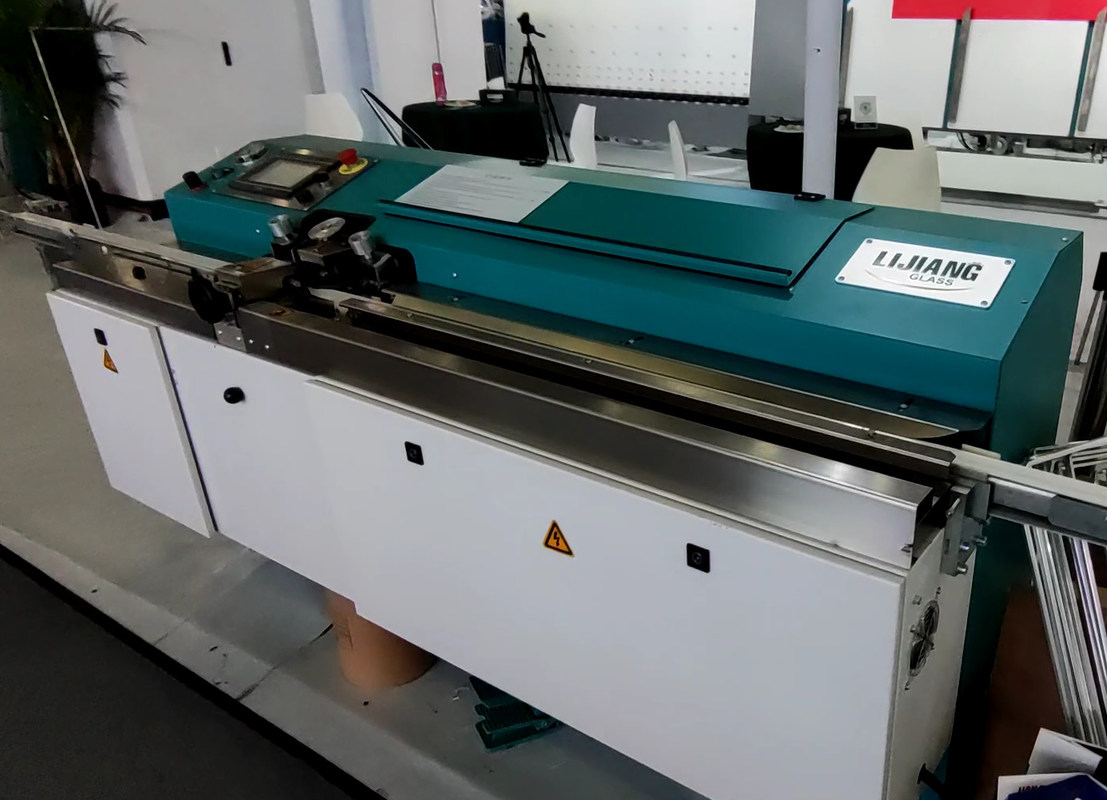

High speed butyl extruder machine is a necessary equipment for manufacturing aluminum-frame type Double glazing glass, even it is necessary for Vertical insulating glass processing line.The butyl that be glued on the both side of aluminum frame by New butyl extruder machine, is the first sealant for insulating glass. So the quality of the butyl directly decides the quality of insulating glass and using life.
Butyl extruder machine is controlled by program PLC, can automatic and exactly finish gluing function, operators only need to support the aluminum frames, others( clamping roller, transfer and etc) are automatic finished by setting program. This equipment is suitable for square, rectangular, shaped, arc and kinds of aluminum frames. Inner diameter of butyl cylinder is 200mm, maximum can load butyl of Φ195 * 250mm (7kg).
Transfer unit consists of frequency control motor, belts and belt pulleys. The range of running speed for belt is 5 ~ 47m / min; the height of beam can be adjusted by hand wheels, that locate in the left side of machine( see from picture 1.2), after adjusting to the properly height, please tighten front and back set screws. Structure of this part is simple and can be easily to adjust, it also has quickly transfer speed, stable and reliable to operate.
In normal conditions, operator can independently finish gluing butyl on the two side of aluminum frame within the size of 2000 * 2000 mm. When the size is more than 2000 mm, should be done by two people. Assist operator should be away from the conveyor belt more than 200mm, in order to avoid the danger of clamping and involving in the belt.
Main feature
• PLC control system, KINCO touch screen interface
• Hydraulic system using German brands
• Alarm system, reminding adding butyl glue
• The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable
• Exhaust function
• Short preheating time, improve work efficiency
• Coating shape frames, the roller device can be selected at will
• Fast coating speed, can up to 47m/min
• Stable pressure and even coating
• Saving glue. The amount of glue on both sides can reach 4g / m
• Big glue barrel, 200L. (Optional)
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Electrical parameters
| Name | Original | Brand |
| PLC | China | KINCO |
| Valve | German | HAWE |
| Low voltage electrical apparatus | German | SIEMENS |
| Hydraulic and pneumatic supercharging system | German | MAXIMATOR |
| Frequency converter | China | KINCO |
| Pneumatic components | Taiwan | ARTAC |
| Quick exhaust valve/Vacuum generator | Japan SMC | SMC |
| Travel light | Japan | OMRON |
| Optical fiber | Japan | OMRON |
Related product of LIJIANG GLASS
Vertical Full Automatic Low-e Glass Edge Deletion Machine With Deleting Low-e Film
Low-E glass, also known as Low-E glass, is a kind of film product composed of multilayer metal or other compounds coated on the surface of glass. The coating layer has the characteristics of high transmittance to visible light and high reflection to mid far infrared ray, which makes it have excellent heat insulation effect and good transmittance compared with ordinary glass and traditional coated glass for building.
Low-e glass types:
Single silver Low-E glass
Single silver Low-E coated glass usually contains only one functional layer (silver layer). In addition to other metal and compound layers, the total number of coating layers reaches 5.
Double silver Low-E glass
The double silver Low-E coated glass has two functional layers (silver layer), plus other metal and compound layers, the total number of coating layers reaches 9. However, the technical process control of double silver Low-E glass is much more difficult than that of single silver.
Main feature:
The vertical glass edge deletion machine contains 3 sections: glass loading section, deleting section and glass unloading section. The deletion machine has 4 kinds of different directions. Online low-e and outline low-e glass.
The vertical low-e film edge deletion machine can delete the double or triple low-e film.
Specification :
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 15KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Taiwan | TAIDA |
| PLC | Taiwan | TAIDA |
| Pneumatic component | Taiwan | AAIRTAC |
| Low pressure electricity | Germany | SIEMENS |
| Circuit breaker | Germany | SIEMENS |
| Sensor switch | Korea | AUTONICS |
| Approach switch | Korea | AUTONICS |
| Limit switch | Taiwan | TEND |
| Connector | Germany | SIEMENS |
| Frequency converter | France | SCHNEIDER |
| Main Button | France | SCHNEIDER |
| Intermediate relay | Japan | OMRON |
