IG Butyl Extruder Machine For Insulating Glass Panels Double Glass Machine

IG Butyl Extruder Machine For Insulating Glass Panels Double Glass Machine
IG Butyl Extruder Machine For Insulating Glass Panels Double Glass Machine
IG Butyl Extruder Machine For Insulating Glass Panels Double Glass Machine IG Butyl Extruder Machine For Insulating Glass Panels Double Glass Machine IG Butyl Extruder Machine For Insulating Glass Panels Double Glass Machine IG Butyl Extruder Machine For Insulating Glass Panels Double Glass Machine

Large Image :  IG Butyl Extruder Machine For Insulating Glass Panels Double Glass Machine

Product Details:
Place of Origin: Jinan
Brand Name: Lijiang
Certification: CE
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 13000 USD/SET
Packaging Details: plastic film
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 10 SETS/MONTH

IG Butyl Extruder Machine For Insulating Glass Panels Double Glass Machine

Description
Name: Butyle Rubber Extruder Insulating Glass Machine Voltage: 380V 50HZ
Power(w): 5.7 KW Air Pressure: 0.6MPa
Warranty: 1year Application: Extruding The Hot Melt Butyl Into Insulating Glass
Color: As Requirement Usage: Butyl Rubber Coating
Squeeze Pressure: 10-25 MPa Function: Used For The First Sealing Butyl
High Light:

IG Butyl Extruder Machine

,

Insulating Glass Butyl Extruder Machine

,

Double Glass Butyl Extruder Machine

High Speed Butyl Extruder Machine

Double glass precessing machine Automatic butyl extruder coating machine

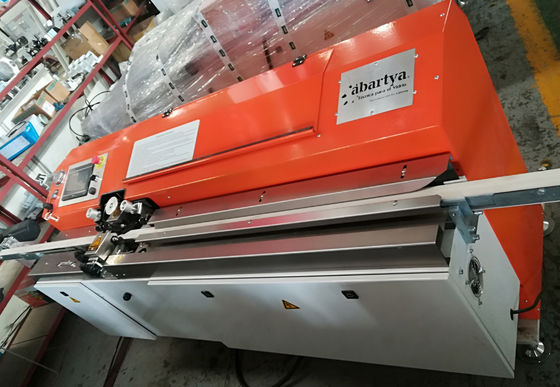

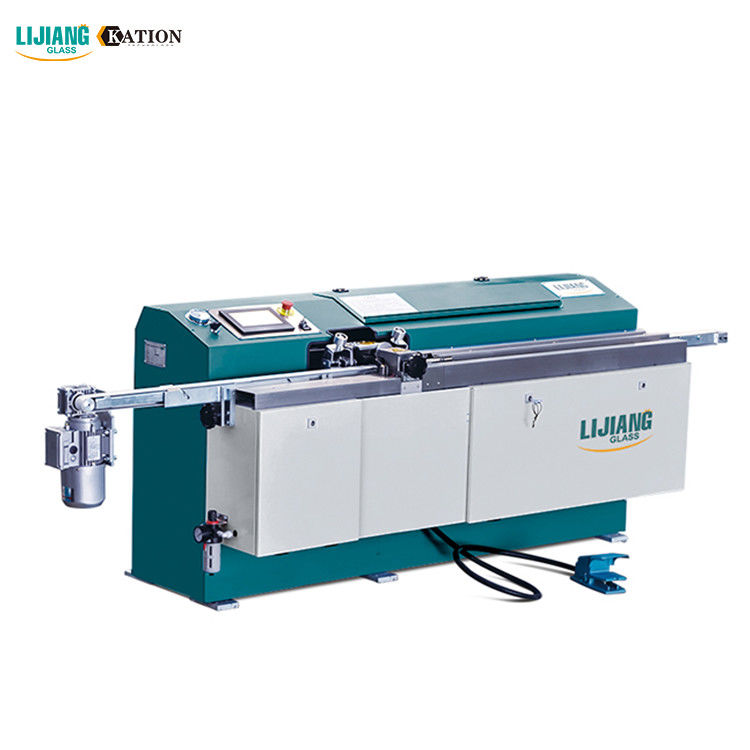

Automatic butyl extruder coating machine is used for coating Aluminum spacer strip, which consists of hydraulic system, heating system, control system, body and other parts.Butyl rubber coater is used for coating non flexible spacer strip, which consists of hydraulic system, heating system, control system, body and other parts.



IG Butyl Extruder Machine For Insulating Glass Panels Double Glass Machine 0

Main Features:

• PLC control system, touch screen interface

• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust

• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full

• Fast preheat, improve work efficiency

• with preheating function

• With exhaust inflatable function, improve the quality of sealing and save time for plastic

• Quickly coating speed,can up to 47m/min

• Saving the amount of glue



Technical data:



Power supply 380V 50Hz 3P
Total power 5.7 kw
Dimension 2800*700*900 mm
Weight 750 kg
Air pressure >0.6 MP
Air supply 0.4 m3/min
Diameter of butyl cylinder 200 mm
Speed 0-47 m/min
Aluminum spacer width 5.5-26.5 mm
Glue width 3.5 mm
Glue thickness 0.3-0.5 mm
Temperature 110-140℃
Squeeze pressure 10-25 Mpa



Product Detail:

IG Butyl Extruder Machine For Insulating Glass Panels Double Glass Machine 1

IG Butyl Extruder Machine For Insulating Glass Panels Double Glass Machine 2

IG Butyl Extruder Machine For Insulating Glass Panels Double Glass Machine 3

IG Butyl Extruder Machine For Insulating Glass Panels Double Glass Machine 4



Manual two pumps sealants spreading machine for coating insulating glass



Application :

IG Butyl Extruder Machine For Insulating Glass Panels Double Glass Machine 5

This equipment was designed by advanced technology from abroad and inside of China. It is special equipment used for spreading the two-component polysulphide glue and/or

two-component silicone structure glue for the aluminum type insulating glass or curtain wall glass.A and B pump adopt Korea brand HASCO.So it can ensure the reliable working-effect.



Special and convenient mixed device can ensure the high quality mixing of the two-component polysulphide glue and/or two-component silicone structure glue. This equipment is featured by uniform mixture and continuous stability of extruded glue, good spreading effect and high production efficiency.



Main feature :



1.Imported motor system to improve equipment efficiency

2.Imported sealant gun, stainless steel mixer

3.High pressure protect device

4.Mixed rate detector

5.Anti-back flow control structure 6.Important control parts adopt Korea Brand

6.Mixed rate detector can control the rare of two kinds of glue

7.Adopted Korea HASCO to improve equipment efficiency.

8.Sealant gun

We adopted the Sealant gun from Korea HASCO.

Stainless steel mix pipe and hybrid mandrel,easy to clean glue.

Special check valve in the pump to make sure extrude glue fluently and avoid incomplete mixing.

9.Glue bucket

Gluing evenly without bubbles.



Main technical parameter :



Working air pressure 0.3-0.6MPa
Sealant spreading pressure 15-20MPa
Sealant volume 4L/min
Diameter of A/B sealant 570mm/280mm
Sealant spreading air pressure ratio 50:1
Mixed rate 6:1-14:1
Air supply Flow 0.8m3/min
Air pressure ≥0.8MPa
Overall dimension 1100*950*1630mm
Weight 490kg
Capacity of the glue drum 200-300 ml/200 kg
