Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing

Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing
Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing
Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing

Large Image :  Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing

Product Details:
Place of Origin: Jinan City, Shandong Province, China
Brand Name: Jinan Lijiang Glass Machinery
Certification: CE & ISO9000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiated Price
Packaging Details: Wooden Cases Package
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Glass Deep-processing
Contact Now

Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing

Description
Product Name: Automatic Vertical Insulating Glass Sealing Equipment Dimension(L*W*H): 8700*2000*3500mm
Max Glass Size: 2500*4000mm Min Glass Size: 280*450mm
Glass Thickness: 12 - 50mm Working Speed: 5~40 M/min
Voltage Power: 380V 12KW Warranty: 1 Year
High Light:

2500*4000mm Insulating Glass Sealing Equipment

,

40 m/min Insulating Glass Sealing Equipment

,

40 m/min Double Glazing Glass Sealing Equipment

Automatic Vertical Insulating Glasing Sealing Equipment for Hollow Glass Double Glazing Processing
Product Description
Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing 0

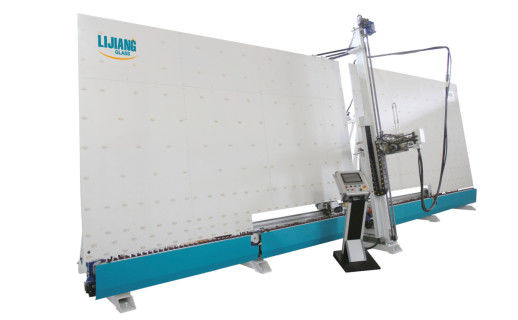

Automatic Vertical Insulating Glass Sealing Robot
Insulating Glass automatic sealant machine can apply the mixed sealant evenly to the outer channel of the insulating glass through the servo mechanism to help the sealing and bonding performance of the insulating glass. Automatic Vertical Insulating Glass Sealing Robot can apply the mixed sealant evenly to the outer channel of the insulating glass through the servo mechanism to help the sealing and bonding performance of the insulating glass.
Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing 1
Advantages & Features
Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing 3
Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing 4
Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing 5
Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing 6
Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing 7
Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing 8
Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing 9




Benefits & Advantages

•Japan Yaskawa servo system control, full automatic and high-efficiency sealing machine •4 sections, can storage glass •Adopt timing belt, smooth transfer and accurate position •Automatically repair glass corners with scraper and roller •Automatically measure glass size, glue depth (30mm) •Every auto-function is with manual operation •Can coat double glass •Shape glass with optional edges, step glass, triple glass (Optional) •One set of booster pump controls two groups of sealants (Optional) •Can use silicone, polysulfide and silicone structural sealants •Glue head is in the front of the machine, which is easy for coating step glass •Can be connected with insulating glass processing line •With code scanning function (Optional)
Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing 10



The Smooth Glue Surface
After applying glue, It will ensure that the corners of the glass are full, without bubbles and other impurities, and the glue surface is so smooth.
Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing 11



The High-precision Servo Control System
It adopts Japanese Yaskawa servo control system with clear wiring layout to ensure stable overall performance of the equipment.
Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing 12



The Glass Coating
Automatically measure glass size, glue depth and glue speed through linear adjustment to ensure the stability of insulating glass coating quality.
Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing 13



Glue Pump A and Glue Pump B
Equipped with a single A component and a single B component, mixed and glued. When applying glue, glue pump A and glue pump B are automatically mixed to realize automatic proportioning.
Main Technical Parameter
Item.
Spec.
Max glass size
2500*4000mm
Min glass size
280*400mm
Glass thickness
12 - 50mm
Glue depth
≤22mm
Glue width
26.5mm
Working speed
5 - 40m/min
Air pressure
0.6MPa
Squeeze pressure
32MPa
Voltage Power
380V 50Hz 12KW
About Us
Vertical Insulating Glass Sealing Equipment For Hollow Glass Double Glazing 14
The Brief Information
Founded in 2009, Kation-International Group specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry, which is the international group company including the Jinan LIJIANG Automatic Equipment Co,.Ltd. to producing the automatic insulating glass production line, and including the Jinan Kation International Group Co,.Ltd. to export the automatic insulating glass processing machine around the world. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on,nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world. Kation-Tech, with craftsmanship, profession and honesty, wins the future with you together!
