Product Details:
|
| Product Name: | Butyl Extrusion Coating Machine | Glue Thickness: | 0.3-0.5mm |
|---|---|---|---|
| Glue Width: | 3.5mm | Aluminum Spacer Width: | 5.5-26.5mm |
| Speed: | 0-47m/min | Diameter Of Butyl Cylinder: | 200mm |
| High Light: | DGU Automatic Hot Melt Extruder,47m/min Hot Melt Extruder,47m/min Rubber Sealing Coating Machine |
||
1. Touch-screen operation, simple and practical
2. Auto-measure the width of spacer, nozzle automatic positioning
3. Auto-centering and auto-clamping
4. The bigger wheel help to coat the arc frame
5. Coating nuzzle is Teflon brand ,non-stick coating
6. The coating speed is up to 47m/min,saving materials up to 30％,( 5g/m)
7. The crossbeam height is easy to adjust,we can control the height of butyl
8. The special part controls both sides of nozzle opening and closing at the same time
9. Alarm device when use out of butyl and easy to load butyl
10. Pre-heading function,set a regular time before working time
11. Glue cylinder Adopt the upright structure, easy to change butyl.
12. Automatic filter function Automatically filter debris, keep spreading evenly.
13. Hydralic and Pneumatic supercharging pump ,German MAXIMATOR brand
14. Pressure release valve German HAWE brand ,high pressure resistance ,keep the butyl well proportioned
15. Pneumatic component Taiwan Airtac
16. Japan OMROM Relay
Tech parameters of Automatic hot melt Extruder Machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 5.5-26.5mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 750kg |

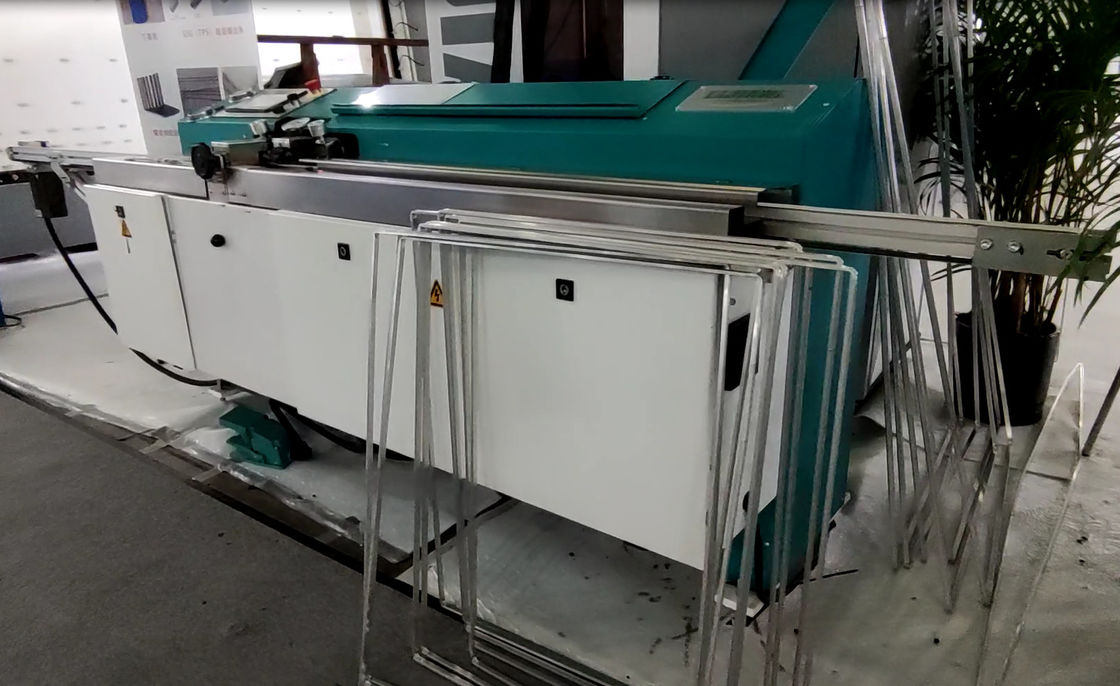

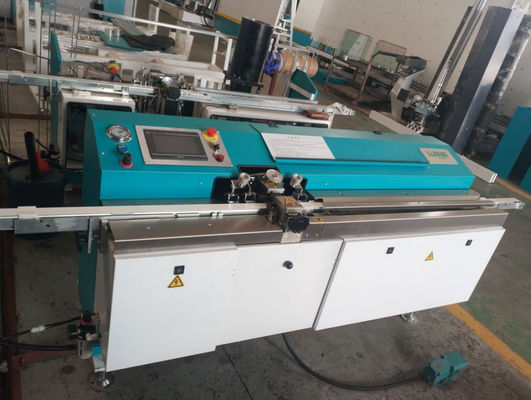

Equipment details of Automatic Butyl Extruder Insulating Glass machine
Germany Siemens parts
Butyl extruder machine Adopt German brand Siemens PLC, stable performance.
KINCO Touch Screen
Use toubh screen operation ,simple trial,Clear interface, Simple operation, Smart touch screen,Updated programming.
Germany HAVE Valve
High speed butyl extruder machine Adopt Germany’s Harvey valve, more stable performance.
Alarm system
Adopt Automatically alarm system, reminding adding butyl.
Glue cylinder
The rubber cylinder adopt the pull-up structure, which is convenient for changing butyl.
Germany Maximator Cylinder
Super charging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.
Adjust the glue putput automatically according to the speed change
The height adjustment of beam is convenient,effective to solve the provlem of white line
Optional functions of Automatic butyl coating machine:
200L glue cylinder is optional
Related Products of LIJIANG GLASS
1.Butyl Extruder Machine LJTB 03
Main feature
• PLC control system, touch screen interface
• Frequency control system
• Arc frame coating structure
• Imported pneumatic and hydraulic supercharging system
• Automatic centering and clamping structure
• Loading capacity up to 14KG, saving time for feeding glue
• Adopt five steps to control convey
• Preheating function,glue cylinder limit function,alarm system
• Covey and gluing mechanism adopts the latest design
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A-27A |
| Speed | 0-40m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW,50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| weight | 650kg |
2.Desiccant Filling Machine LJGZ 2020A
Technical data
| Max frame size | 2000mm*2000nn (2500mm*2500mm) |
| Min frame size | 300mm*250mm |
| Aluminum specifications | 6A - 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.5KW |
| Molecular sieve diameter needed | 0.5-0.8mm |
| Dimension | 1650mm*1100mm*3600mm |
3.Automatic Aluminum Spacer Bending Machine LJZW2020
