Product Details:
|
| Name: | Butyl Extruder Machine | Air Supply: | 0.4m³/min |
|---|---|---|---|
| Air Pressure: | ≥0.6MPa | Total Power : | 380V, 5KW, 50HZ |
| Speed: | 0-47m/min | Aluminum Spacer Width: | 4-30mm |
| High Light: | Insulated Glass Butyl Glue Coating Machine,47m/min Butyl Glue Coating Machine,Insulated Glass Butyl Rubber Extruder Machine |
||

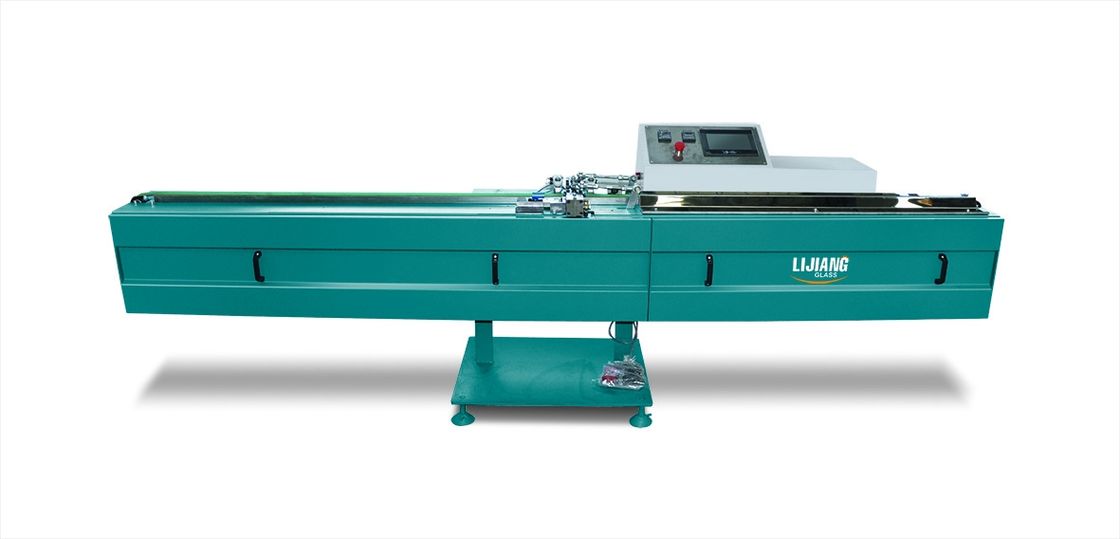

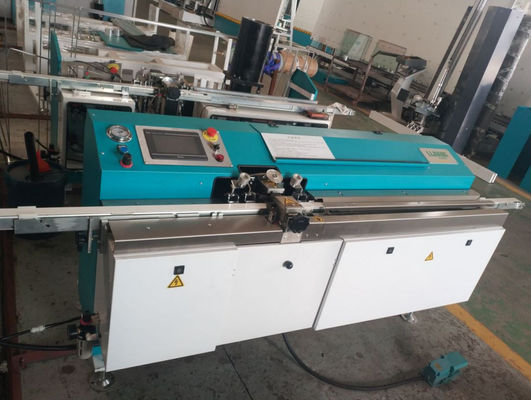

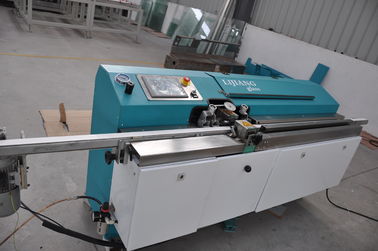

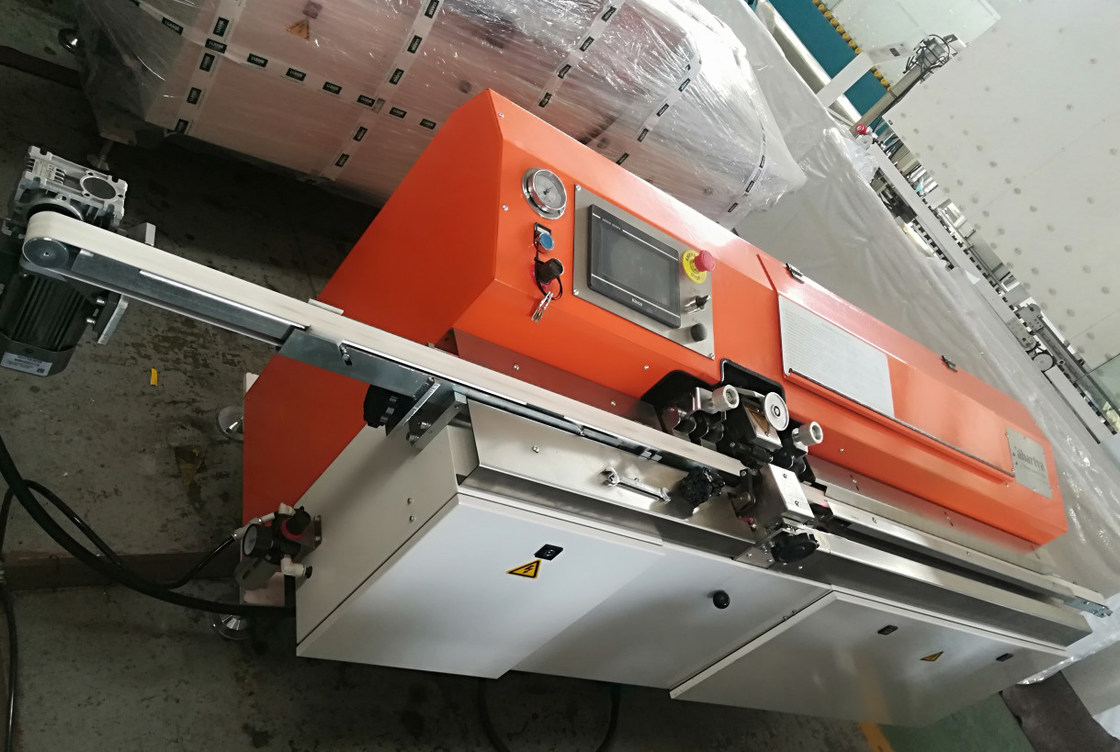

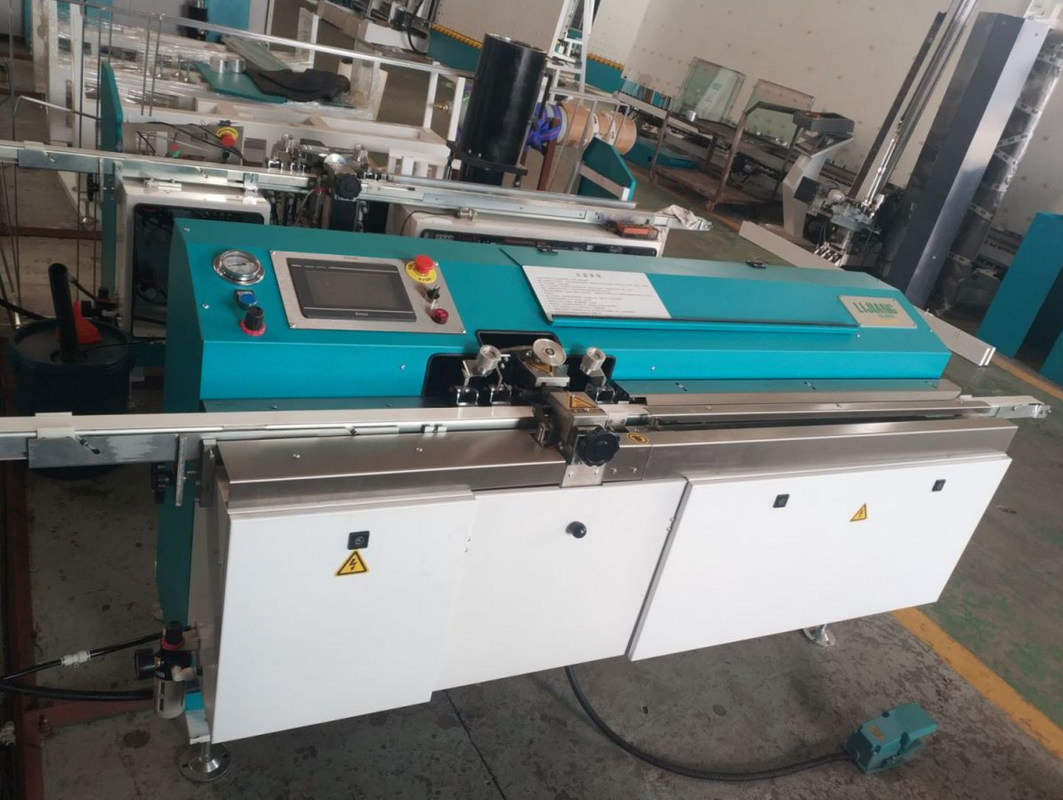

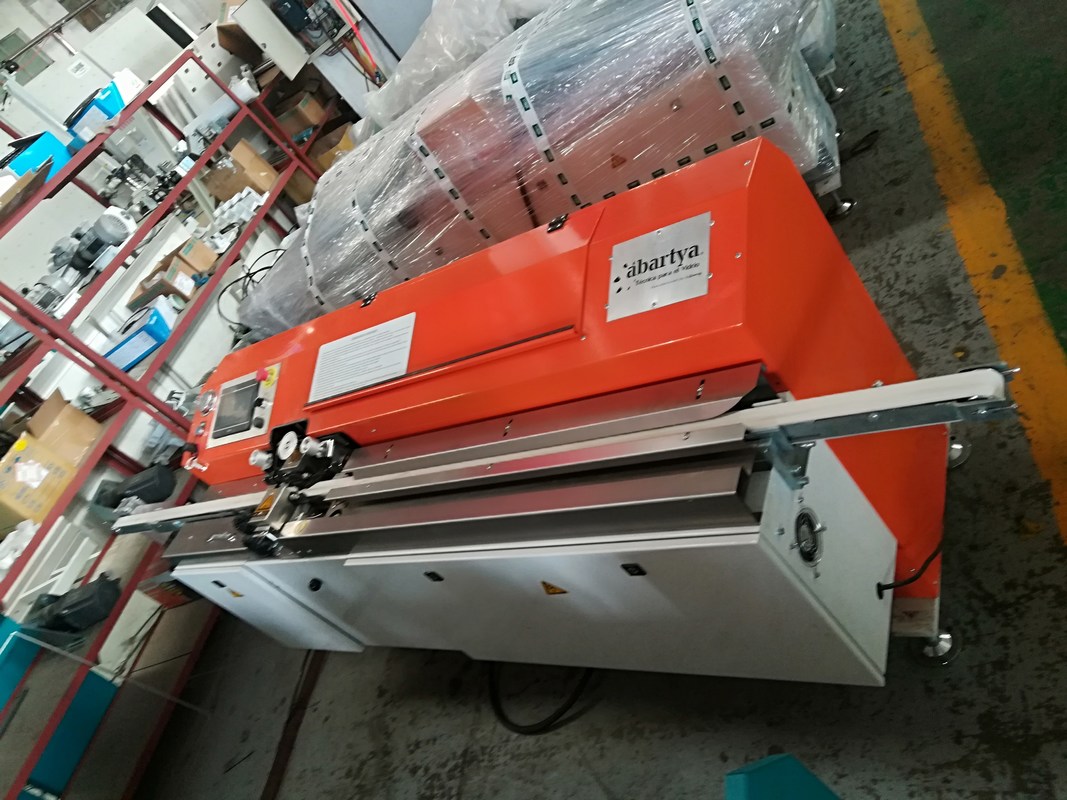

LJTB03 Butyl Extruder Machine
² Application of electrical control panel
The type of LJTB03 butyl extruder machine is used for spreading aluminum spacer frames evenly
with hot melt butyl. LJTB03 butyl extruder machine use large electrical control panel which makes
the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the
speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. LJTB03 butyl
extruder machine is very popular with energy-saving. Its squeezing system adopts pneumatic and
hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing
cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the
life of squeezing system and set the heating time in 24 hours with electricity and air pressure.
The distance of squeezing head can be adjusted automatically according to different aluminum
spacer. The LJTB03 butyl extruder machine has reached the worldwide technology with the characteristic
of complete function and stable working mode.
² Technical Data of extrusion coating machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600*680*1100mm(L*W*H) |
| Weight | 650kg |
² Other features of butyl machine
1. Filter out debris automatically through auto exhaust, keep spreading quickly and evenly.
2. Quickly speed of warming, improve work effect.
3. Adjustable coating speed, can up to 0-47m/min.
4. Can save about 40% materials, only 5g/m.
5. Extruder head height adjustment structure.
6. Automatic centering and clamping structure.
7. Stable temperature and it is convenient to adjust the sealing material automatically.
² Main components of ig machine
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |
Company Profile of china pneumatic
JINAN KATION TRADING CO.,LTD.
Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating glass machinery
and related auxiliary equipment for the glass deep processing industry and the door and window construction
industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows &
doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass
processing solution and windows & doors solution for domestic and foreign customers well.
