Product Details:
|
| Product Name: | Butyl Extrusion Coating Machine | Application: | Making Double Glazing Glass Products Machine |
|---|---|---|---|
| Warranty: | 1 Year | Heating Time: | 15 Mins |
| Voltage: | 380V 50Hz 3P | Squeeze Pressure: | 10-18MPa |
| Glue Thickness: | 0.3-0.5mm | Glue Width: | 3.5mm |
| High Light: | Thickness 0.5mm Butyl Extruder,Insulating Glass Butyl Extruder,Thickness 0.5mm hot melt butyl extruder |
||

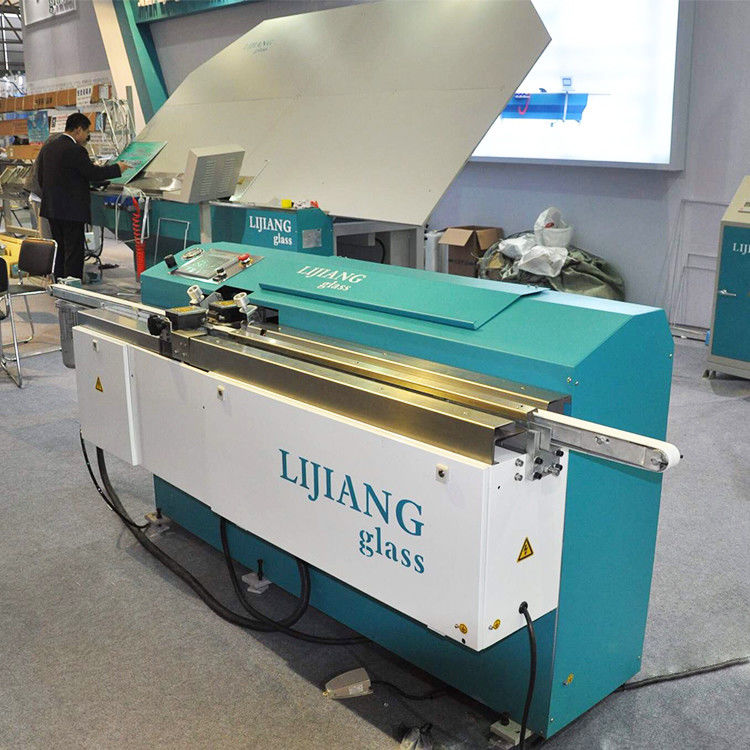

Overview of butyl extrusion coating machine
Butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The operation of the butyl extruder is more easier than before,it uses large electrical control panel . The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min. LJTB01 Butyl extruder machine is a special equipment for the production of making double glazing glass. As one of the important equipment of producing insulating glass, the effect of butyl glue is directly related to the sealing of insulating glass. The equipment is automatic one, easy to operate and convenient to use.
Main feature of butyl machine
1. Touch screen operation, simple and practical
2. The hydraulic system imported from Germany is adopted to ensure even and full glue delivery
3. The rubber cylinder adopts pull-up structure, which is convenient for operation
4. Automatically adjust the glue output according to the speed change
5. It is convenient to adjust the height of the crossbeam and solve the problem of exposed white effectively and conveniently
6. Glue application speed can reach 47m / min
7. Unique design structure, with automatic exhaust function, to ensure continuous glue application
8. Non adhesive synchronous belt is used, and talcum powder is not needed for cleaning
9. The main accessories are German brands. PLC program control, stable performance
10. It is convenient and practical to use movable vertical and horizontal sealant
11. Automatically adjust the width of glue head, and the integrated control of quick opening valve ensures the consistency of double-sided gluing
12. It can save the glue consumption compared with the ordinary butyl rubber machine, and the gluing can reach 7g / m
Tech parameters of automatic butyl extruder machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Equipment details of glue coating machine
Germany Siemens parts
Adopt Siemens brand, stable performance.
KINCO Touch Screen
Clear interface, Simple operation, Smart touch screen,Updated programming.
Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
Alarm system
Automatically alarm system, reminding adding butyl.
Germany Maximator Cylinder
The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.

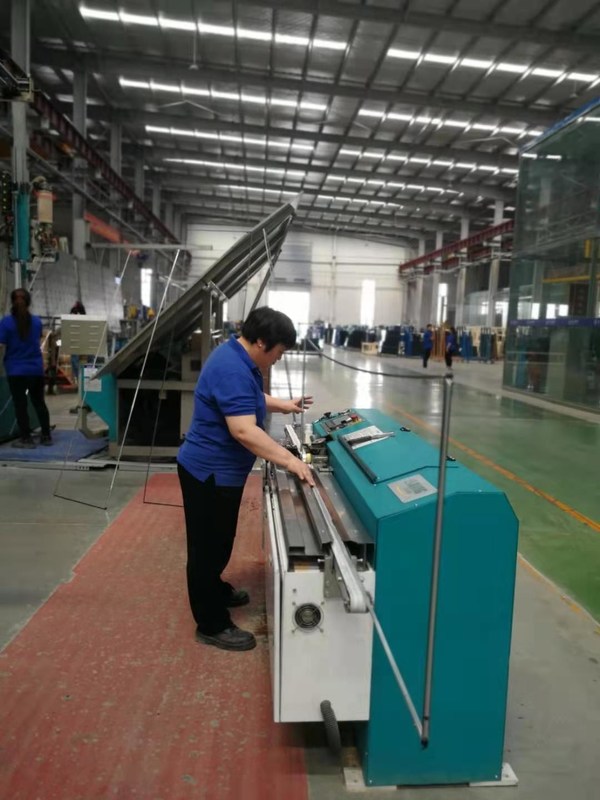

Detail picture
Optional functions of butyl coating machine:
200L glue cylinder is optional
Related Product
Vertical Loading Table
I.Mainly technical parameter:
1.Loading max glass size: L X W = 3500 x 2600 mm
Loading min. glass size: L X W = 800 x 600 mm
Glass thickness: (3-10mm)
2.Dimension of loading table approx.:
L X W X H= 3700mm x 2800mm x 2500mm+ bottom support 530mm(±30mm)
3.The vertical loading table uses Servo motor as drive system and all motors with infinitely variable speeds, the transfer speed of this table is 2-35m/min;Loading cycle time: 35S
4.Adopts full-closed loop control system for accurate positioning for the machine and stable running system;Configuration description
5.The tilting arm horizontal movement controlled by Servo motor and precise gear box, gear rack drive;
6.Lifting structure: Servo motor and precise gear box control and synchronous belt drive;
7.The suction cups frame tilting structure: Servo motor and precise gear box control and crank connecting rod drive;
8.Bottom transfer structure, Servo motor and precise gear box control and chain drive.
9.4 axis all-digital control with precise positioning and speedy flexibility; All speed can be
adjustable according to production line speed.
10.Super HMI monitor the equipment running status and system parameters; It can set data according to different glass rack height and angle and also pre-setting or recording the current shift of production.
11.Vacuum pump system: highly effective mono-block rotary blade type vacuum pump;
Suction cups: Uses imported PF suction cups ￠120MM type
12. 5—7bar,30L/min;Compressed air supply: 5—7bar, 30L / min;
13.Power supply: 380V, 50HZ, 3 phases, installed capacity: 10KW
